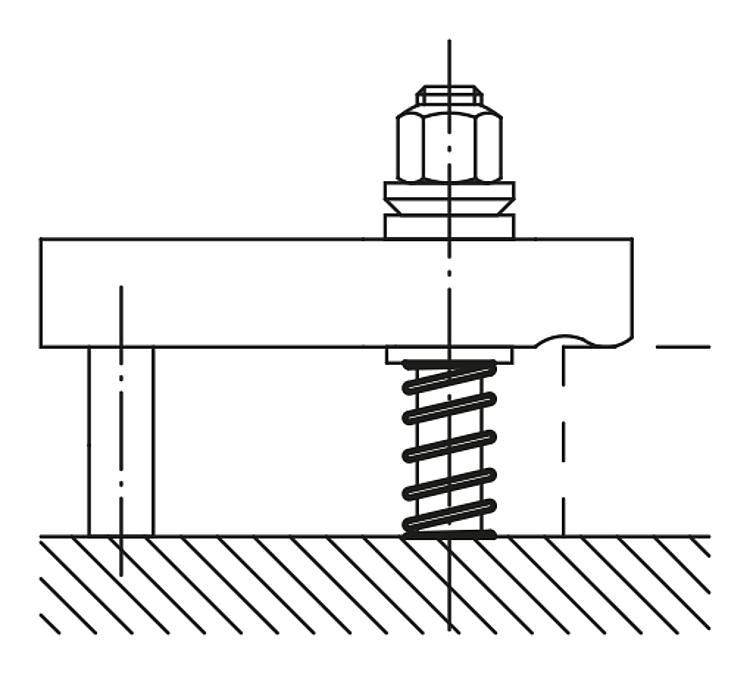

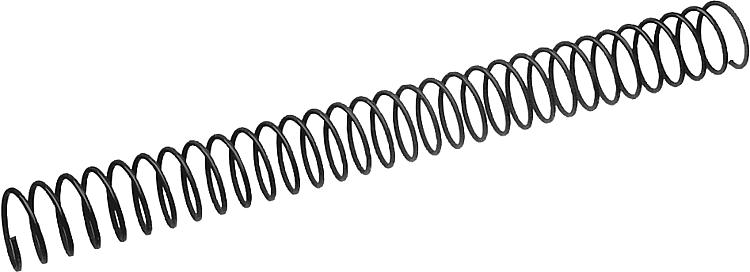

07650Springs for clamp straps |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Spring steel wire EN 10270-1-DH.Note:Springs are only available in 400 mm lengths.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

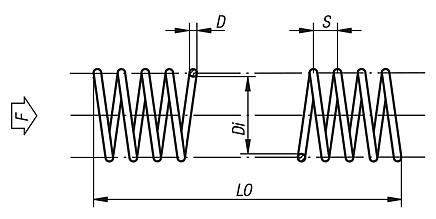

| Order No. | D
| Di | LO | S | Spring force
F approx.
(N) | Compression
factor under f | CAD | Acc. | Price | Order |
|---|
| 07650-06 | 1 | 6,5 | 400 | 3 | 32 | 1,3 |  | | on request | | | 07650-08 | 1 | 8,5 | 400 | 4 | 25 | 2,1 | | | on request | | | 07650-10 | 1,2 | 10,5 | 400 | 4 | 35 | 2,7 | | | on request | | | 07650-12 | 1,4 | 12,5 | 400 | 5 | 47 | 3,3 | | | on request | | | 07650-14 | 1,5 | 14,5 | 400 | 6 | 50 | 4 | | | on request | | | 07650-16 | 1,6 | 16,5 | 400 | 7 | 53 | 4,8 | | | on request | | | 07650-18 | 1,8 | 18,5 | 400 | 7 | 68 | 5,4 | | | on request | | | 07650-20 | 1,8 | 20,5 | 400 | 8 | 62 | 6,5 | | | on request | | | 07650-24 | 2 | 25 | 400 | 9 | 70 | 8,6 | | | on request | |
