Shaft collars one-piece with clamping lever

go back

Products
- Product overview
  - Flexible standard component system
    - Fasteners Ball-end thrust screws Thrust screws and thrust pads Grippers Torque bolts Threaded inserts Lifting bolts Swivel bales Ring bolts
      - Connecting elements
        Shaft collars one-piece with clamping lever

Item description/product images

DescriptionMaterial:

Steel.
Stainless steel 1.4305.

Version:Steel black oxidised.
Stainless steel bright.
Insert stainless-steel.Note:One-piece shaft collars surround the shaft with an equal distribution of the clamping force. This leads to a very precise fit and high retaining force without damaging the shaft.

The shaft tolerance should lie within h11.On request:Other dimensions.Special features:

DownloadHere is all the information as a PDF datasheet:

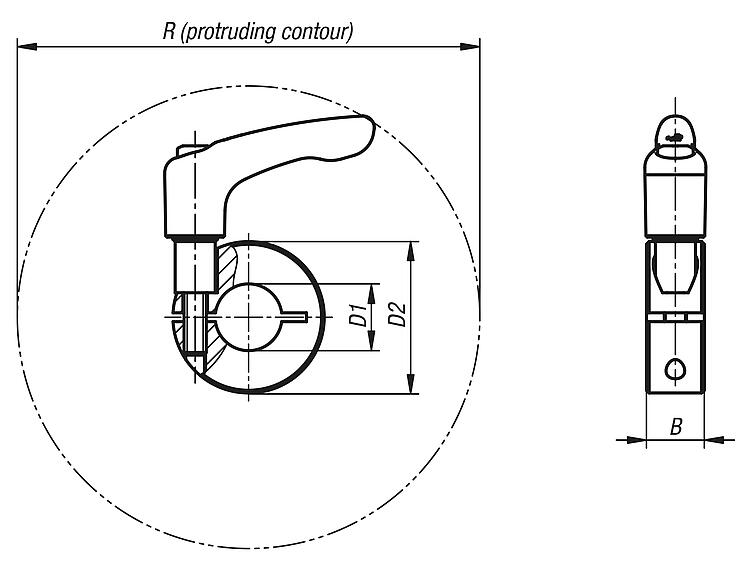

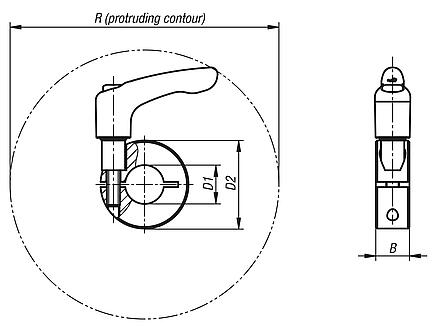

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07810 Shaft collars one-piece, with clamping lever

198 kB

Drawings

Overview of items (compressed)

Item selection/filter

	steel stainless steel	9 11 13 15 19	10 12 15 16 18 20 22 25 28 30 40 50	24 28 34 36 40 42 45 48 54 60 78	44,1 90,4 105 105,7 103,8 104,2 104,8 106,8 112,6 113,2 150,2				Reset
Order No.	Main material	B	D1	D2	R	CAD	Acc.	Price	Order
07810-11001	steel	9	10	24	44,1			on request
07810-11201	steel	11	12	28	90,4			on request
07810-11501	steel	13	15	34	105			on request
07810-11601	steel	13	16	34	105			on request
07810-11801	steel	13	18	36	105,7			on request
07810-12001	steel	15	20	40	103,8			on request
07810-12201	steel	15	22	42	104,2			on request
07810-12501	steel	15	25	45	104,8			on request
07810-12801	steel	15	28	48	106,8			on request
07810-13001	steel	15	30	54	112,6			on request
07810-14001	steel	15	40	60	113,2			on request
07810-15001	steel	19	50	78	150,2			on request
07810-11002	stainless steel	9	10	24	44,1			on request
07810-11202	stainless steel	11	12	28	90,4			on request
07810-11502	stainless steel	13	15	34	105			on request
07810-11602	stainless steel	13	16	34	105			on request
07810-11802	stainless steel	13	18	36	105,7			on request
07810-12002	stainless steel	15	20	40	103,8			on request
07810-12202	stainless steel	15	22	42	104,2			on request
07810-12502	stainless steel	15	25	45	104,8			on request
07810-12802	stainless steel	15	28	48	106,8			on request
07810-13002	stainless steel	15	30	54	112,6			on request
07810-14002	stainless steel	15	40	60	113,2			on request
07810-15002	stainless steel	19	50	78	150,2			on request
