        Two-piece shaft collars, steel or stainless steel with support face

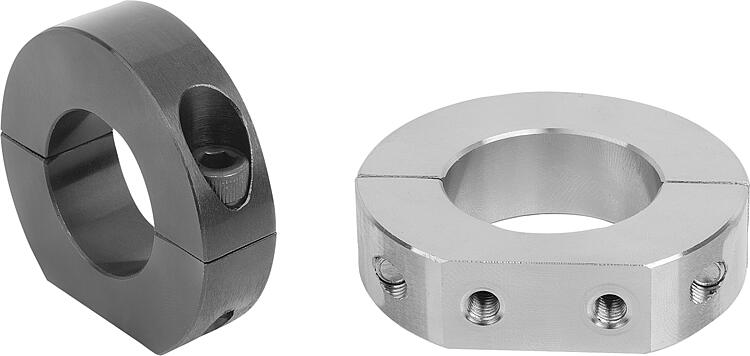

Item description/product images

DescriptionMaterial:

Steel.
Stainless steel 1.4305.

Version:Steel black oxidised.
Stainless steel bright.Note:Two-piece shaft collars with support face surround the shaft with an equal distribution of the clamping force. This leads to a very precise fit and high retaining force without damaging the shaft.

The shaft tolerance should lie within h11.

The two-part design enables quick and easy mounting without having to dismantle neighbouring components.

The tapped mounting holes on the support face of the two-piece shaft collars can be used to attach other elements such as shift levers or cams to shafts and axles. They can be mounted easily and securely with strong clamping forces through reduction of the slot thickness without damaging the surface of shafts and axles.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07812-05 Two-piece shaft collars, steel or stainless steel with support face

192 kB

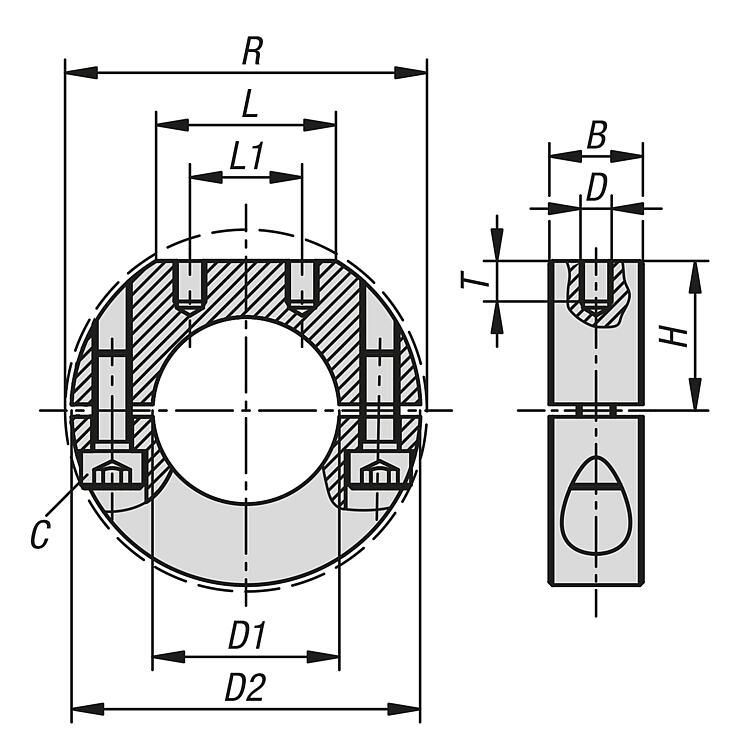

Drawings

Item selection/filter

	steel stainless steel	1.0503 1.4305	9 11 13 15 19	M3x10 M4x12 M04X14 M5x16 M06X16 M6x18 M8x25	M3 M4 M5 M6	10 12 14 15 16 18 20 22 25 28 30 32 35 38 40 45 50	28 30 32 36 38 40 42 46 48 54 56 58 60 66 76 82	12 13 14 15 16 17 18 20 21 22,5 24 25 26 27 31 34,5	14,5 15 19,5 20 21 21,5 22,5 23 29 28,5 30 37 41,5 43,5	8 9 12 13 12,5 14 18,5 18 20 27 28 29	- 31,8 33,9 39,4 42,2 46,4 48,1 50,8 58,6 61,6 79,4 84,2	4 5,5 7 8,5				Reset
Order No.	Main material	Steel code	B	C (DIN 912)	D	D1	D2	H	L	L1	R	T	CAD	Acc.	Price	Order
07812-05-01001	steel	1.0503	9	M3x10	M3	10	28	12	14,5	8	-	4			on request
07812-05-01201	steel	1.0503	11	M4x12	M3	12	30	13	15	8	31,8	4			on request
07812-05-01401	steel	1.0503	11	M04X14	M3	14	32	14	15	9	33,9	4			on request
07812-05-01501	steel	1.0503	13	M5x16	M4	15	36	15	19,5	12	39,4	5,5			on request
07812-05-01601	steel	1.0503	13	M5x16	M4	16	38	16	20	13	39,4	5,5			on request
07812-05-01801	steel	1.0503	13	M5x16	M4	18	40	17	21	12,5	42,2	5,5			on request
07812-05-02001	steel	1.0503	15	M06X16	M4	20	42	18	21,5	14	46,4	5,5			on request
07812-05-02201	steel	1.0503	15	M06X16	M4	22	46	20	22,5	12	48,1	5,5			on request
07812-05-02501	steel	1.0503	15	M06X16	M4	25	48	21	23	12,5	50,8	5,5			on request
07812-05-02801	steel	1.0503	15	M06X16	M5	28	54	22,5	29	18,5	-	7			on request
07812-05-03001	steel	1.0503	15	M6x18	M5	30	56	24	28,5	18	58,6	7			on request
07812-05-03201	steel	1.0503	15	M6x18	M5	32	58	25	29	18	58,6	7			on request
07812-05-03501	steel	1.0503	15	M6x18	M5	35	60	26	30	20	61,6	7			on request
07812-05-03801	steel	1.0503	15	M6x18	M5	38	66	27	37	27	-	7			on request
07812-05-04001	steel	1.0503	15	M6x18	M5	40	66	27	37	27	-	7			on request
07812-05-04501	steel	1.0503	19	M8x25	M6	45	76	31	41,5	28	79,4	8,5			on request
07812-05-05001	steel	1.0503	19	M8x25	M6	50	82	34,5	43,5	29	84,2	8,5			on request
07812-05-01002	stainless steel	1.4305	9	M3x10	M3	10	28	12	14,5	8	-	4			on request
07812-05-01202	stainless steel	1.4305	11	M4x12	M3	12	30	13	15	8	31,8	4			on request
07812-05-01402	stainless steel	1.4305	11	M04X14	M3	14	32	14	15	9	33,9	4			on request
07812-05-01502	stainless steel	1.4305	13	M5x16	M4	15	36	15	19,5	12	39,4	5,5			on request
07812-05-01602	stainless steel	1.4305	13	M5x16	M4	16	38	16	20	13	39,4	5,5			on request
07812-05-01802	stainless steel	1.4305	13	M5x16	M4	18	40	17	21	12,5	42,2	5,5			on request
07812-05-02002	stainless steel	1.4305	15	M06X16	M4	20	42	18	21,5	14	46,4	5,5			on request
07812-05-02202	stainless steel	1.4305	15	M06X16	M4	22	46	20	22,5	12	48,1	5,5			on request
07812-05-02502	stainless steel	1.4305	15	M06X16	M4	25	48	21	23	12,5	50,8	5,5			on request
07812-05-02802	stainless steel	1.4305	15	M06X16	M5	28	54	22,5	29	18,5	-	7			on request
07812-05-03002	stainless steel	1.4305	15	M6x18	M5	30	56	24	28,5	18	58,6	7			on request
07812-05-03202	stainless steel	1.4305	15	M6x18	M5	32	58	25	29	18	58,6	7			on request
07812-05-03502	stainless steel	1.4305	15	M6x18	M5	35	60	26	30	20	61,6	7			on request
07812-05-03802	stainless steel	1.4305	15	M6x18	M5	38	66	27	37	27	-	7			on request
07812-05-04002	stainless steel	1.4305	15	M6x18	M5	40	66	27	37	27	-	7			on request
07812-05-04502	stainless steel	1.4305	19	M8x25	M6	45	76	31	41,5	28	79,4	8,5			on request
07812-05-05002	stainless steel	1.4305	19	M8x25	M6	50	82	34,5	43,5	29	84,2	8,5			on request
