        Baseplates aluminium with T-slot

Item description/product images

Show/filter all items

DescriptionMaterial:Baseplates aluminium.
Tapped bushes stainless steel.Version:hard-coated.Note:Baseplates with T-slot and connecting thread. With scaling for exact and repeatable positioning of clamping elements.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 01041 Baseplates aluminium with T-slot

214 kB

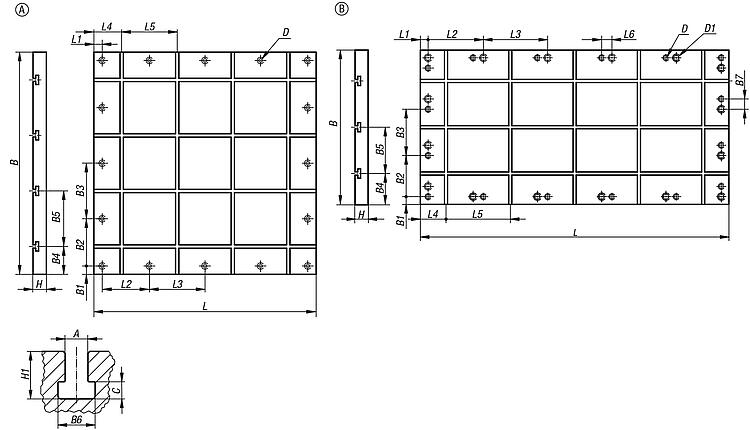

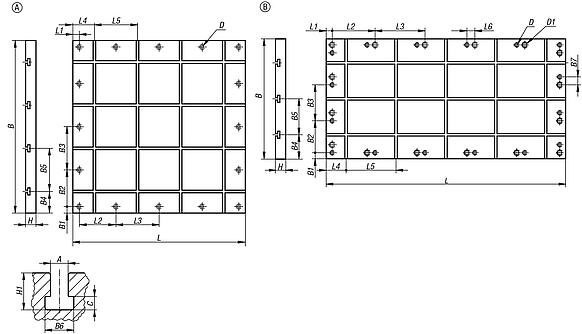

Drawings (total overview)

Baseplates aluminium with T-slot, Form A

More information

Drawings

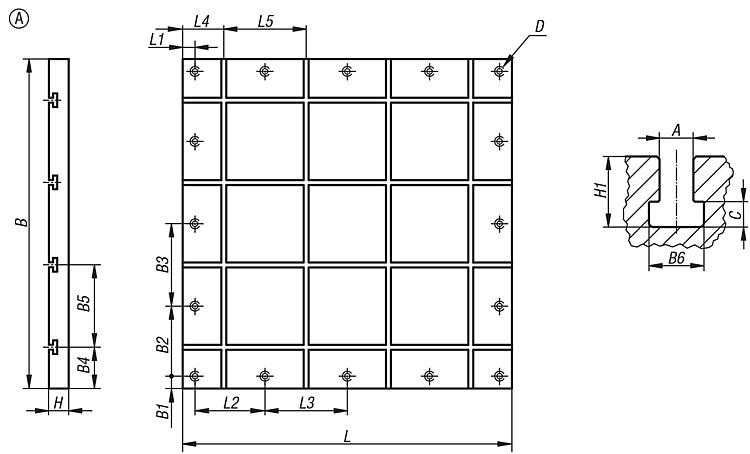

Baseplates aluminium with T-slot, Form A

Item selection/filter

	A	6	400 250	15	85 110	100 -	50 80	100 110	16,5	5	M8	24	10	400 500	15	85 110	100 125	50 62,5	100 125				Reset
Order No.	Form	A	B	B1	B2	B3	B4	B5	B6	C	D	H	H1	L	L1	L2	L3	L4	L5	CAD	Acc.	Price	Order
01041-40040024	A	6	400	15	85	100	50	100	16,5	5	M8	24	10	400	15	85	100	50	100			on request
01041-50025024	A	6	250	15	110	-	80	110	16,5	5	M8	24	10	500	15	110	125	62,5	125			on request

Baseplates aluminium with T-slot, Form B

More information

Drawings

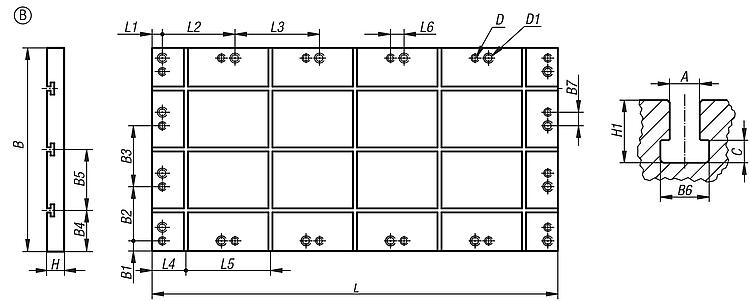

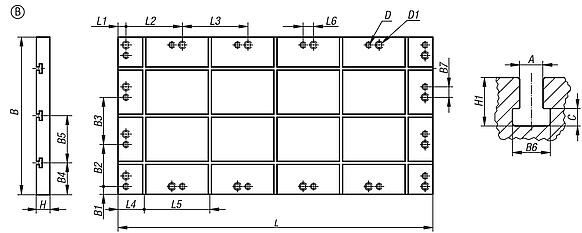

Baseplates aluminium with T-slot, Form B

Item selection/filter

	B	6	300 400	15	80 85	90	60 65	90	16,5	20	5	M8	M10	24	10	600 800	15	107,5 145	125	50 87,5	125	20				Reset
Order No.	Form	A	B	B1	B2	B3	B4	B5	B6	B7	C	D	D1	H	H1	L	L1	L2	L3	L4	L5	L6	CAD	Acc.	Price	Order
01041-60030024	B	6	300	15	80	90	60	90	16,5	20	5	M8	M10	24	10	600	15	107,5	125	50	125	20			on request
01041-80040024	B	6	400	15	85	90	65	90	16,5	20	5	M8	M10	24	10	800	15	145	125	87,5	125	20			on request
