        Square hollow profiles grey cast iron

Item description/product images

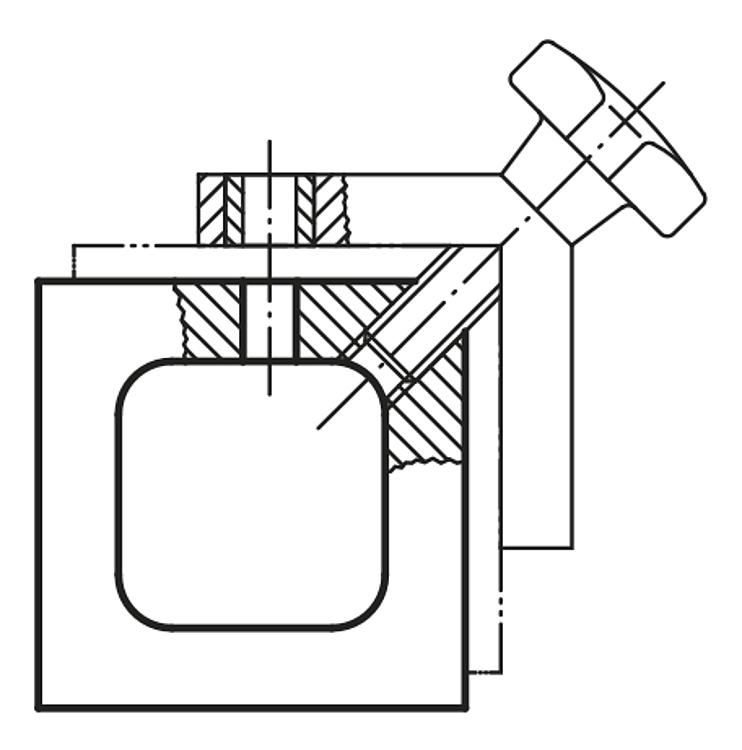

DescriptionMaterial:GJL 250 annealed.Note:The length L is cut by saw and is always supplied overlong.Drawing reference:

machined faces: ±0.25 mm
unmachined faces: ±2 mm
length tolerance:
≤200 mm: +3/+10
>200 mm ≤590 mm: +8/+15
≥600 mm: +20/+50

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 01740 Square hollow profiles grey cast iron

163 kB

Drawings

Overview of items (compressed)

Item selection/filter

Order No.	L = length	B	H	≈ S	R
01740-04X	100/200	63	63	12	6
01740-05X	200/400	80	80	18	8
01740-06X	200/400	100	100	20	10
01740-07X	200/400/600	125	125	22	12
01740-08X	200/300/600	160	160	25	16
01740-09X	200/300/600	200	200	28	20
01740-12X	600	250	250	36	20
01740-15X	600	315	315	56	20
