32506Concentricity gauges max. Ø 80 mm |
go back |
|
Item description/product images |
|
|

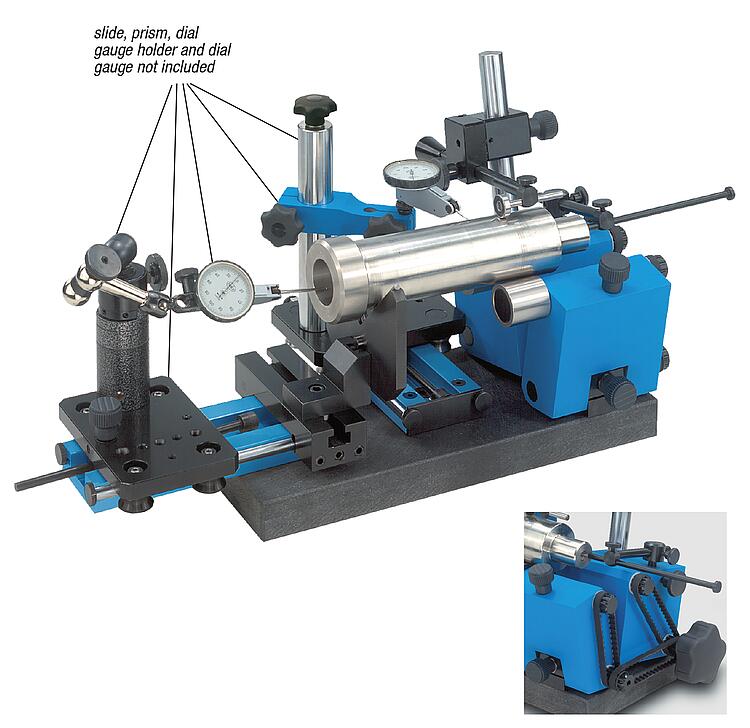

DescriptionNote:Gauge unit suitable for measuring concentricity, run-out and perpendicularity.
The robust design allows the unit to be used in the workshop and metrology room. A swivel contact roller simplifies positioning of the workpiece. The light sliding guides allow the dial gauges to be placed anywhere.Technical data:Inspection range Ø 5 mm to Ø 80 mm
Roller spacing min. 29 mm, max. 89 mm.
Carriage travel max. 100 mm.
Contact roller thrust is adjustable.
Gear driven rollers.
Roller precision: parallelism and coaxialism of both rollers max. 2 µm.
Base plate granite:
300 mm x 130 mm x 25 mmSpecial features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Item | CAD | Acc. | Price | Order |
|---|
| 32506-01 | Concentricity Gauge |  | | on request | |
