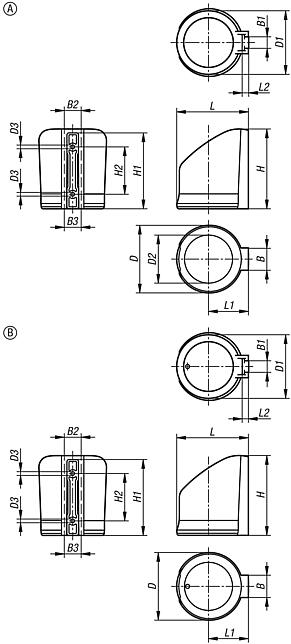

10550-15Cup holder plastic for aluminium profiles, closed or open |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Cup holders PA, fibreglass reinforced.Note:The cup holders are fastened to the aluminium profile (type I and type B) using an M5 countersunk screw (07175) and a slot key (07077 or 07071).Supplied with1x cup holder.
1x mounting.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

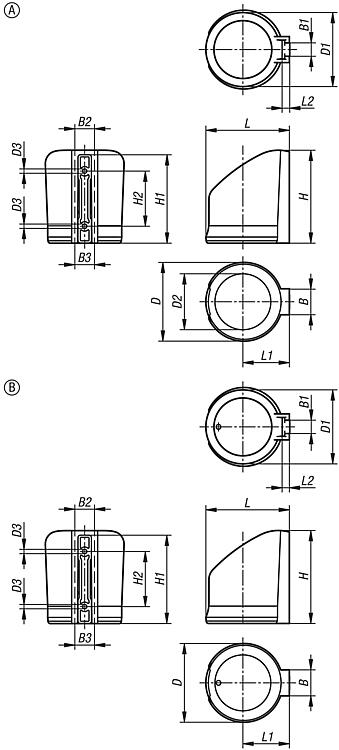

| Order No. | Version 1 | B
| B1 | B2 | B3 | D | D1 | D2 | D3 | H | H1 | H2 | L | L1 | L2 | CAD | Acc. | Price | Order |
|---|
| 10550-15-00 | open | 33 | 17 | 25,5 | 23 | 100 | 93 | 71 | 5,5 | 118 | 112 | 70 | 106 | 59 | 9,3 |  | | on request | | | 10550-15-10 | closed | 33 | 17 | 25,5 | 23 | 100 | 93 | - | 5,5 | 118 | 112 | 70 | 106 | 59 | 9,3 | | | on request | |
