        Plastic roller elements for roller rails

Item description/product images

DescriptionMaterial:Roller and cage polyamide, glass-bead reinforced.
Steel axis.Version:Cage black.
Roller available in different colours.Note:The roller elements are matched to the aluminium profiles for roller rails and can be mounted on them quickly and easily. No tools required. Suitable for aluminium profiles Type B and I.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 10448 Plastic roller elements for roller rails

525 kB

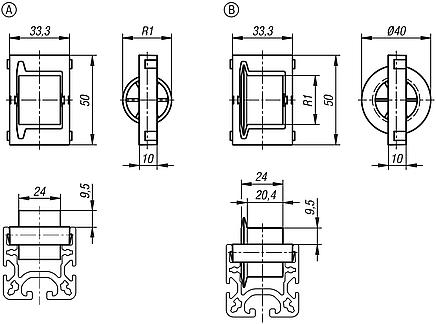

Drawings (total overview)

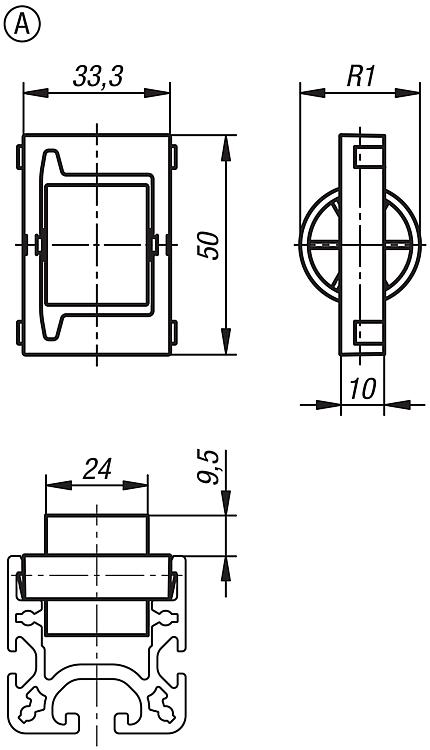

Plastic roller elements for roller rails, Form A

More information

Drawings

Plastic roller elements for roller rails, Form A

Item selection/filter

Order No.	Form	Version 2	Main colour	R1	Load capacity N	Price
10448-1281	A	without wheel flange	black	28	150	on request
10448-1282	A	without wheel flange	yellow	28	150	on request
10448-1283	A	without wheel flange	red	28	150	on request
10448-1284	A	without wheel flange	green	28	150	on request
10448-1285	A	without wheel flange	grey	28	150	on request

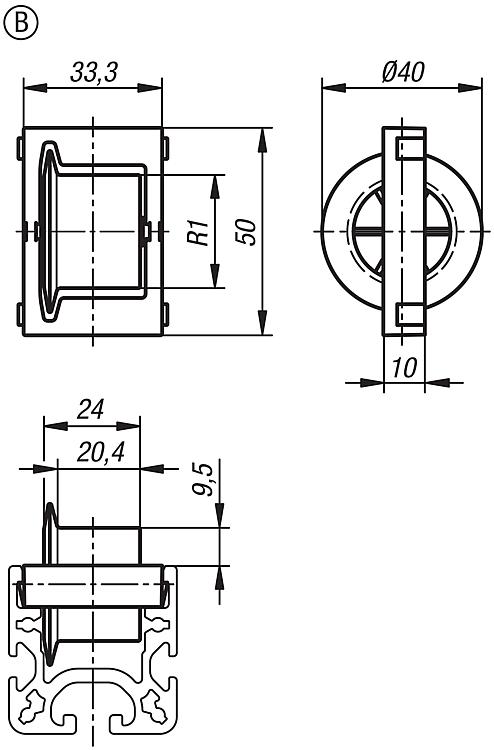

Plastic roller elements for roller rails, Form B

More information

Drawings

Plastic roller elements for roller rails, Form B

Item selection/filter

Order No.	Form	Version 2	Main colour	R1	Load capacity N	Price
10448-2281	B	with wheel flange	black	28	150	on request
10448-2282	B	with wheel flange	yellow	28	150	on request
10448-2283	B	with wheel flange	red	28	150	on request
10448-2284	B	with wheel flange	green	28	150	on request
10448-2285	B	with wheel flange	grey	28	150	on request
