22400Spur gears in steel, module 6 toothing milled, straight teeth,... |
go back |
|
|
DescriptionMaterial:Steel 1.0503 (C45).Version:Milled toothing, straight teeth.

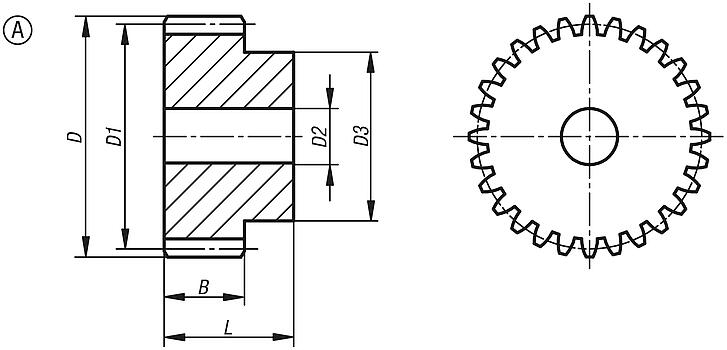

Engagement angle 20°, bright.Note:Up to 25 teeth with hub one side, from 28 teeth supplied as disc form. The spur gears have a centre bore or pilot hole (this can vary due to manufacturing methods). For this reason, the dimension D2 max. given in the table is the maximum diameter of the bore with which the spur gears are supplied. This pilot/centre bore can be amended by the customer to produce a reamed bore, reamed bore with keyway or a tapped hole. Alternatively, customers can also use bushes to reduce the bore diameter.Drawing reference:Form A: with hub

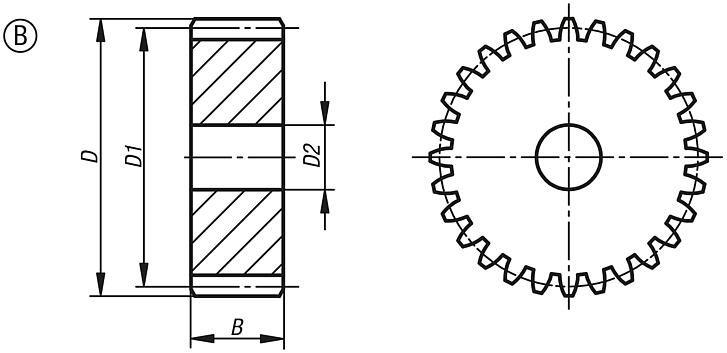

Form B: without hub DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
