        igubal® pillow block bearings

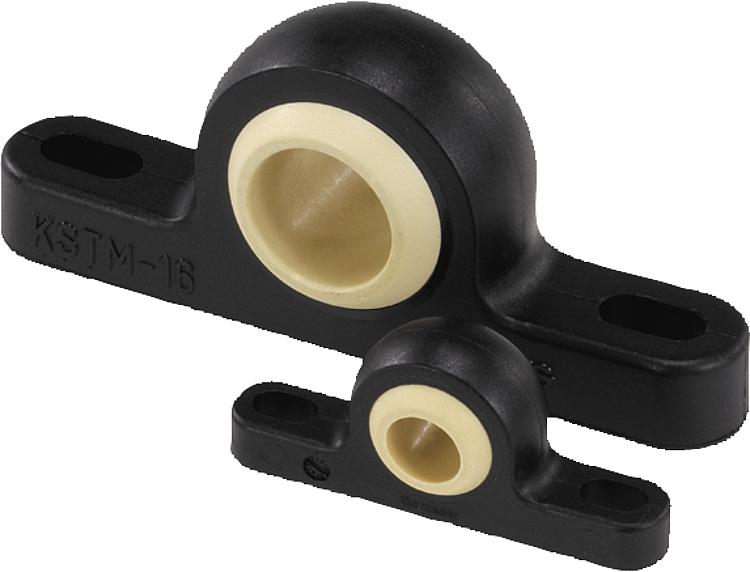

Item description/product images

DescriptionMaterial:Housing igumid® G.
Swivel ball iglidur® W300Version:Black.Note:The ability to pivot allows pillow block bearings to compensate for misalignment and possible shaft deflection. They are easy to install and suitable for the accomodation of rotating, oscillating and linear movements.
igubal® pillow block bearings are maintenance free and conceived for dry running condition.Assembly:These pillow block bearings are designed for mounting with 2 screws.

The ID tolerance is E10. The matching shaft should have a tolerance of h6 to h9.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 23500 igubal® pillow block bearings

144 kB

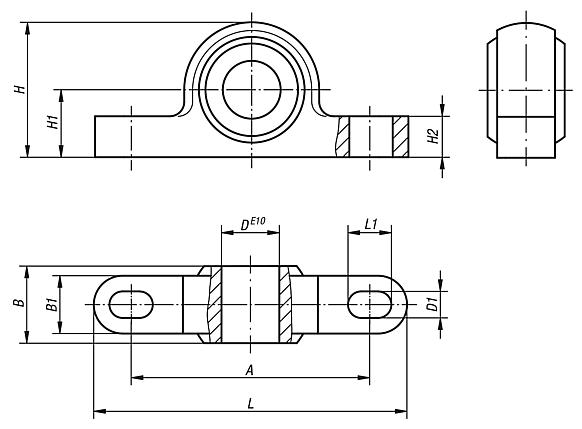

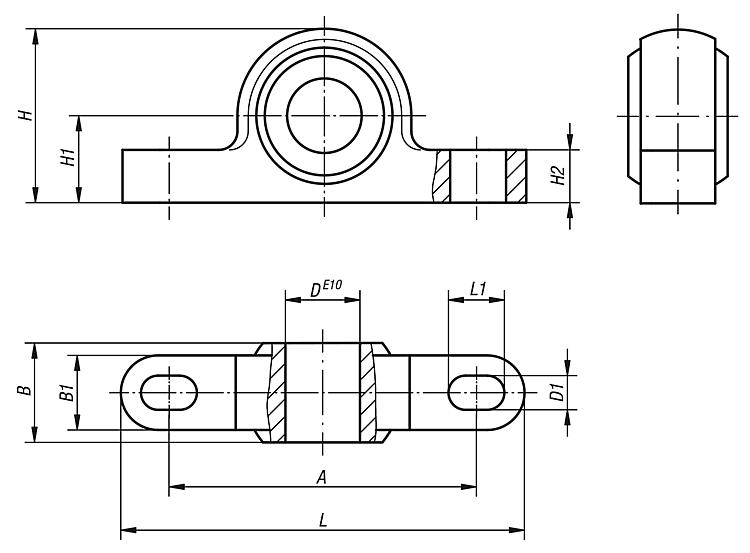

Drawings

Item selection/filter

Order No.	A	B	B1	D	D1	H	H1	H2	L	L1	Max. swivel angle	Max. static tensile stress N short-term	Max. static tensile stress N long-term	Max. static axial pressure stress N	Max. tightening torque for oblong holes Nm	Price
23500-05	26,7	8	6	5	3,3	14	7	4	34	5	30°	700	350	400	0,6	on request
23500-06	34,5	9	7	6	4,5	18	10	5,5	43	6	29°	1100	550	400	1,3	on request
23500-08	35,5	12	9	8	4,5	20	10	6	47	7	25°	1300	650	800	1,3	on request
23500-10	48,5	14	10,5	10	5,5	26	14	7,5	62	8	25°	1500	750	1100	2,5	on request
23500-12	49,5	16	12	12	5,5	28	14	8,5	65	9	25°	2200	1100	1150	2,5	on request
23500-14	64,4	19	13,5	14	6,6	34	18	9,5	82	11	23°	2400	1200	1200	4,5	on request
23500-16	65,4	21	15	16	6,6	36	18	10,5	86	12	23°	3000	1500	1800	4,5	on request
23500-18	72	23	16,5	18	9	42	22	11,5	93	13	23°	3500	1750	1900	10,5	on request
23500-20	73	25	18	20	9	44	22	13	98	14	23°	4700	2350	2500	10,5	on request
23500-22	81	28	20	22	9	48	24	14	108	16	22°	6100	3050	2700	10,5	on request
23500-25	94	31	22	25	9	54	27	16	124	17	22°	6600	3300	3200	10,5	on request
23500-30	105	37	25	30	11	64	32	17	139	20	22°	8100	4050	3750	21,5	on request
