Glide plate bronze, maintenance-free, Form A

go back

Products
- Product overview
  - Systems and components for machine and plant construction
    - Couplings Rigid couplings Keyless locking couplings Cardan joints Quick-fit couplings Bearings Seals
      - Plain bearing
        Glide plate bronze, maintenance-free

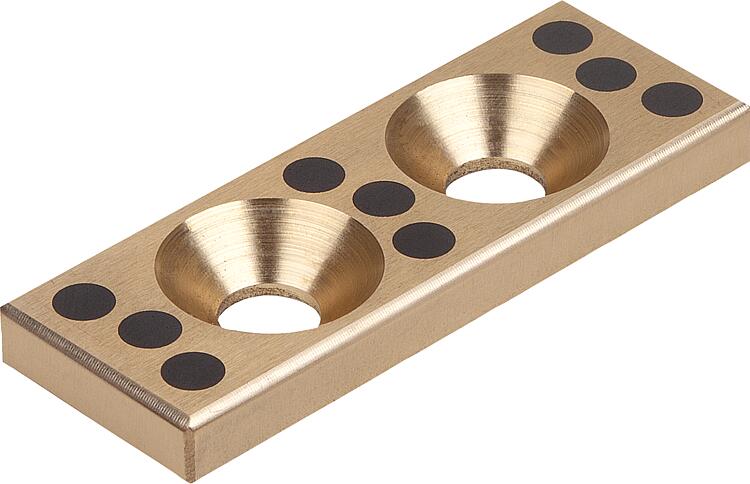

        Glide plate bronze, maintenance-free, Form A

Item description/product images

DescriptionMaterial:Bronze with graphite inserts.Version:Self-lubricating.Note:The sliding plates slide in a vertical and horizontal direction.
The bronze slide elements are maintenance-free and wear-resistant.
The graphite inserts provide lifetime lubrication.Technical data:Material properties:
Base alloys: CuZn25Al5Mn4Fe3-C.

Density: 8.2 kg/dm³.
Flexural fatigue strength: +/- 150 MPa.
Modulus of elasticity: 120,000 N/mm².
Coefficient of friction: 0.05 - 0.12.
Max. speed: 0.5 m/s.
Thermal conductivity: 50 W/(mK).
Coefficient of thermal expansion: 18x10-6 K-1.
Electrically conductive: 7-8 m/(Ω·m-1).
Solid lubricant content: 20-25%.
Static surface pressure: 50 N/mm².
Dynamic surface pressure: 35 N/mm².Temperature range:Up to 230 °C.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 23765-01_A Glide plate bronze, maintenance-free, Form A

190 kB

Drawings

Item selection/filter

Order No.	Form	B	D	H	L	L1	Price
23765-01-018050	A	18	6,6	5	50	20	on request
23765-01-018075	A	18	6,6	5	75	45	on request
23765-01-018100	A	18	6,6	5	100	70	on request
23765-01-028050	A	28	9	5	50	20	on request
23765-01-028075	A	28	9	5	75	45	on request
23765-01-028100	A	28	9	5	100	70	on request
23765-01-038050	A	38	9	5	50	20	on request
23765-01-038075	A	38	9	5	75	45	on request
23765-01-038100	A	38	9	5	100	70	on request
23765-01-048075	A	48	9	5	75	45	on request
23765-01-048100	A	48	9	5	100	70	on request
23765-01-048125	A	48	9	5	125	95	on request
