Round brackets
 27659

Round brackets

 go back

Item description/product images

 Show/filter all items
DescriptionMaterial:

Steel or stainless steel 1.4404.

Version:Steel electro zinc-plated.
Stainless steel bright.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 27659 Round brackets 175 kB

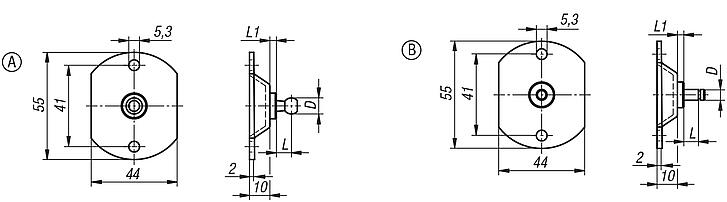

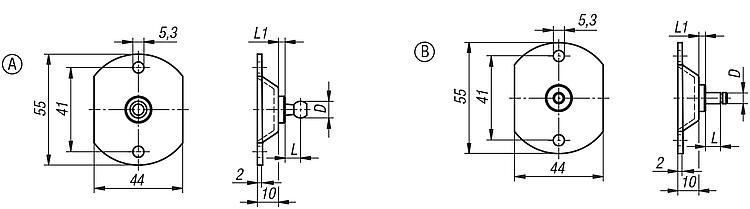

Drawings (total overview)

Round brackets

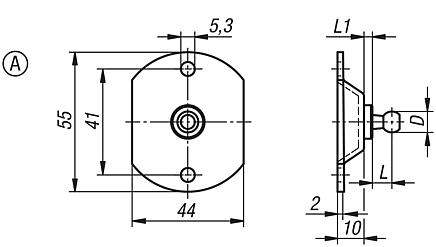

Round brackets, Form A

 More information

Drawings
Round brackets, Form A

Item selection/filter


  •
  • steel
  • stainless steel

  •
  • A

  •
  • 8
  • 10
  • 13

  •
  • 8
  • 9
  • 9,5

  •
  • 3

  •
  • 500
  • 800
  • 1200

Reset
Order No.Main
material		FormD

LL1Strength
N		CADAcc.PriceOrder
27659-00855steelA883500  on request
27659-01055steelA1093800  on request
27659-01355steelA139,531200  on request
27659-008551stainless steelA883500  on request
27659-010551stainless steelA1093800  on request
27659-013551stainless steelA139,531200  on request

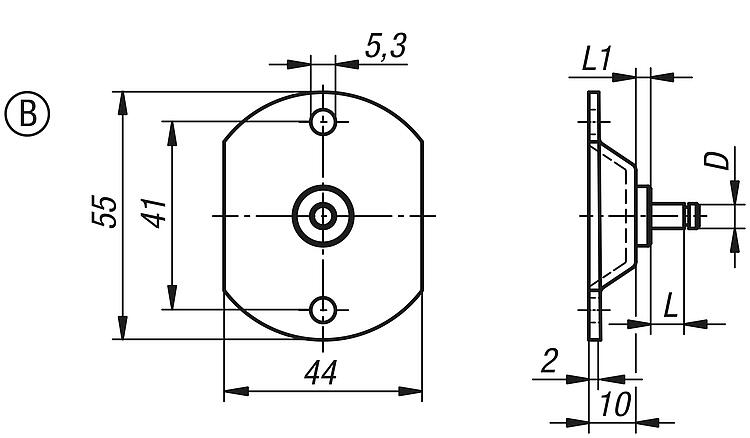

Round brackets, Form B

 More information

Drawings

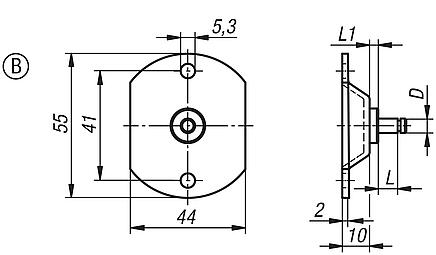

Round brackets, Form B

Item selection/filter


  •
  • steel
  • stainless steel

  •
  • B

  •
  • 6
  • 8

  •
  • 7
  • 11

  •
  • 4
  • 5

  •
  • 500
  • 1200

Reset
Order No.Main
material		FormD

LL1Strength
N		CADAcc.PriceOrder
27659-10655steelB674500  on request
27659-10855steelB81151200  on request
27659-106551stainless steelB674500  on request
27659-108551stainless steelB81151200  on request
