        Machine feet with vibration absorption

Item description/product images

DescriptionMaterial:

Plate steel or stainless steel 1.4404.
Damper plate PUR elastomer (Sylomer V12).

Version:Plate trivalent blue passivated or bright.
Damper plate grey, glued in, anti-slip.
Temp. range -30 °C to +70 °C.Note:

The load rating given in the table is a recommendation of the permanent static load up to which the damper plate should be used.
This static load corresponds to a surface pressure of 0.4 N/mm², at which the material reaches its optimum absorption properties. Here it is taken into account that under dynamic loading an additional load of up to 0.6 N/mm² may occur.
The damper plate absorbs vibrations and prevents the machine foot slipping.

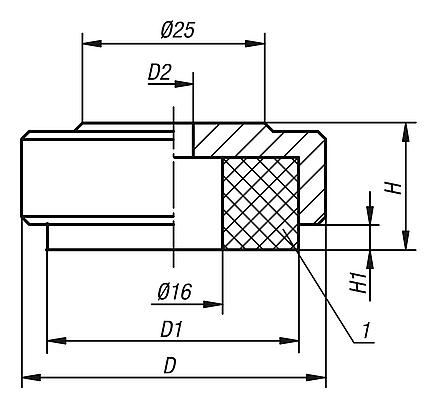

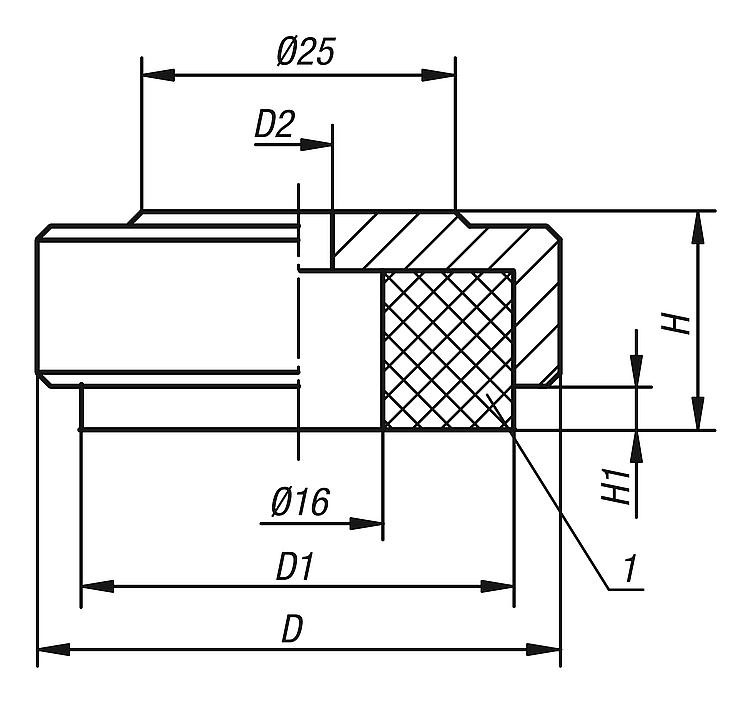

Drawing reference:

1) damper plate

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 27808 Machine feet with vibration absorption

215 kB

Drawings

Item selection/filter

	steel stainless steel	36 46 56 74	30,5 40,5 50 68	5,5 6,6 9	15 17 19 21	4 / 2,8 / 1,9	0,212 0,435 0,705 1,372				Reset
Order No.	Main material	D	D1	D2	H	H1 by 0 / 0.4 / 0.6 N/mm²	Load rating max. kN	CAD	Acc.	Price	Order
27808-036	steel	36	30,5	5,5	15	4 / 2,8 / 1,9	0,212			on request
27808-046	steel	46	40,5	6,6	17	4 / 2,8 / 1,9	0,435			on request
27808-056	steel	56	50	9	19	4 / 2,8 / 1,9	0,705			on request
27808-074	steel	74	68	9	21	4 / 2,8 / 1,9	1,372			on request
27808-1036	stainless steel	36	30,5	5,5	15	4 / 2,8 / 1,9	0,212			on request
27808-1046	stainless steel	46	40,5	6,6	17	4 / 2,8 / 1,9	0,435			on request
27808-1056	stainless steel	56	50	9	19	4 / 2,8 / 1,9	0,705			on request
