Levelling feet plates plastic, heavy-duty version

27816

Levelling feet plates plastic, heavy-duty version

Products
- Product overview
  - Systems and components for machine and plant construction
    - Clevis joints Rod ends Ball joints Axial joints Levelling sets Swivel feet Levelling feet Tube-end plugs Equipment feet Hinges
      - Levelling feet, swivel feet, machine feet
        Levelling feet plates plastic, heavy-duty version

Item description/product images

Show/filter all items

DescriptionMaterial:Plates, thermoplastic, fibreglass reinforced.
Anti-slip plate thermoplastic elastomer.Version:Black.Note:Levelling feet consist of a plate and a threaded spindle. Any plate can be combined with any threaded spindle.
The anti-slip plate absorbs vibrations and prevents the levelling foot slipping.
For matching threaded spindles see 27828.Drawing reference:

Form C with screw-on hole (closed), without anti-slip plate
Form D with screw-on hole (closed), with anti-slip plate

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 27816 Levelling feet plates plastic, heavy-duty version

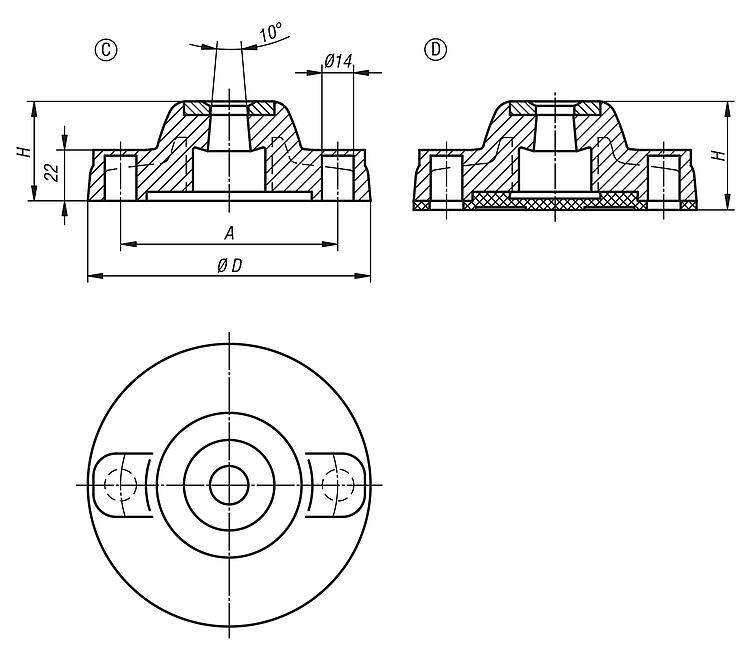

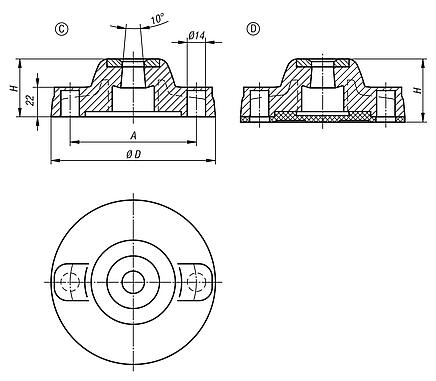

Drawings (total overview)

Levelling feet plates plastic, heavy-duty version

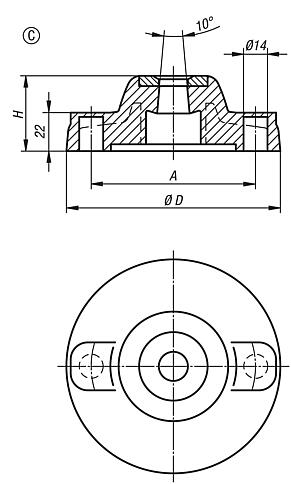

Levelling feet plates, plastic, heavy-duty version, Form C

More information

Drawings

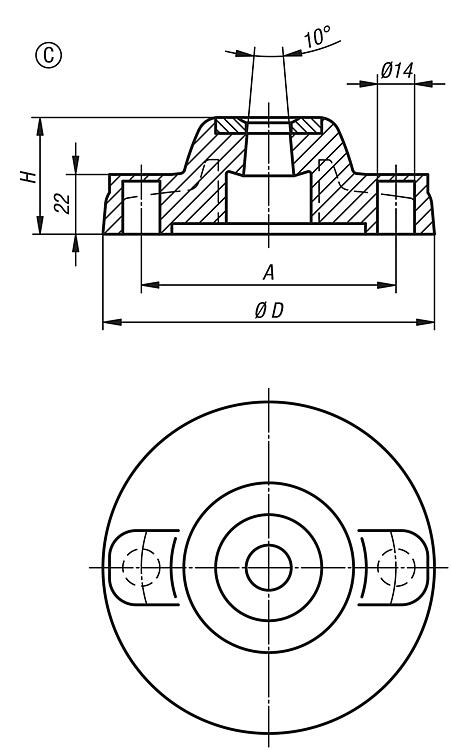

Levelling feet plates, plastic, heavy-duty version, Form C

Item selection/filter

Order No.	Form	D	A	H	Load rating max. kN	CAD	Acc.	Price	Order
27816-31251	C	125	96	44	18			on request
27816-31751	C	175	135	45	25			on request

Levelling feet plates, plastic, heavy-duty version, Form D

More information

Drawings

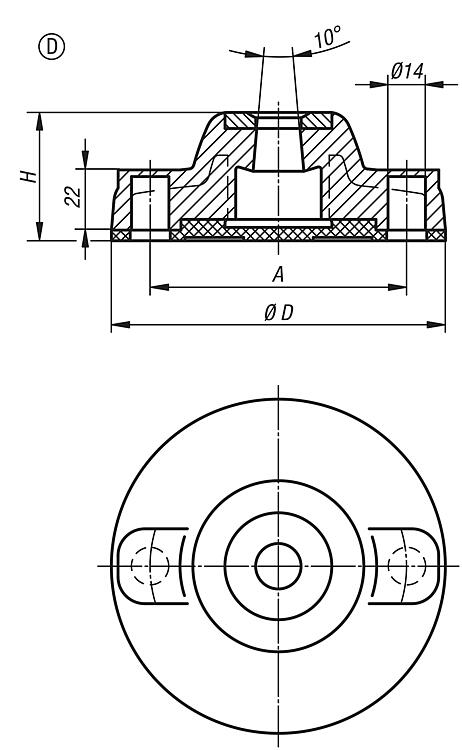

Levelling feet plates, plastic, heavy-duty version, Form D

Item selection/filter

Order No.	Form	D	A	H	Load rating max. kN	CAD	Acc.	Price	Order
27816-41251	D	125	96	48	18			on request
27816-41751	D	175	135	49	25			on request
