        Levelling feet plates die-cast zinc or stainless steel

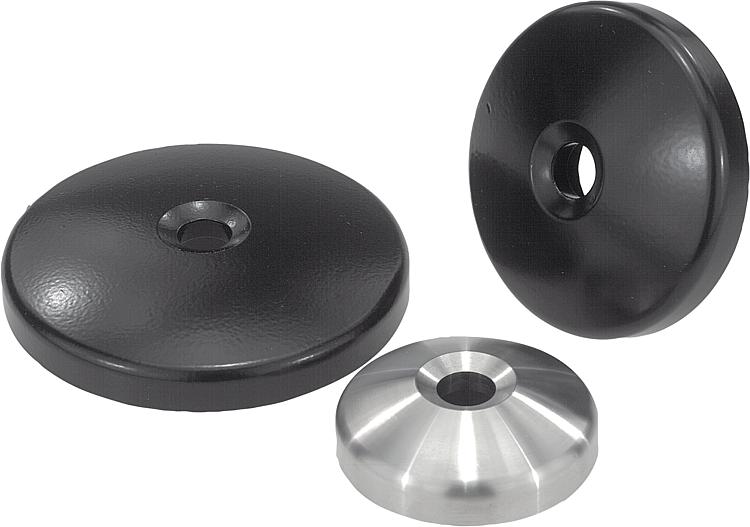

Item description/product images

Show/filter all items

DescriptionMaterial:

Plate die-cast zinc or stainless steel 1.4305.
Anti-slip plate thermoplastic elastomer.

Version:Die-cast zinc plate, black powder-coated.
Stainless steel plate, bright.Note:Levelling feet consist of a plate and a threaded spindle. Any plate can be combined with any threaded spindle.
The anti-slip plate absorbs vibrations and prevents the levelling foot slipping.

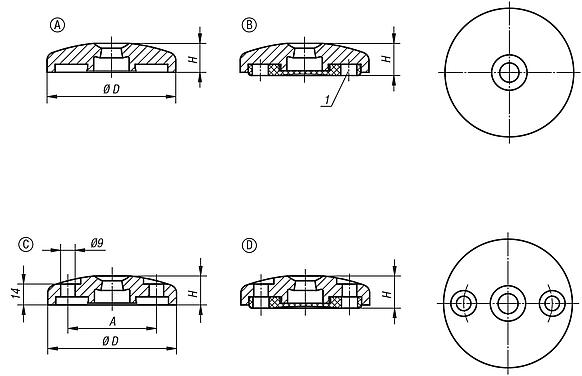

For matching threaded spindles see 27828.Drawing reference:

Form A without screw-on hole, without anti-slip plate
Form B without screw-on hole, with anti-slip plate
Form C with screw-on hole (open), without anti-slip plate
Form D with screw-on hole (open), with anti-slip plate

1) From plate Ø 80

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 27817 Levelling feet plates die-cast zinc or stainless steel

173 kB

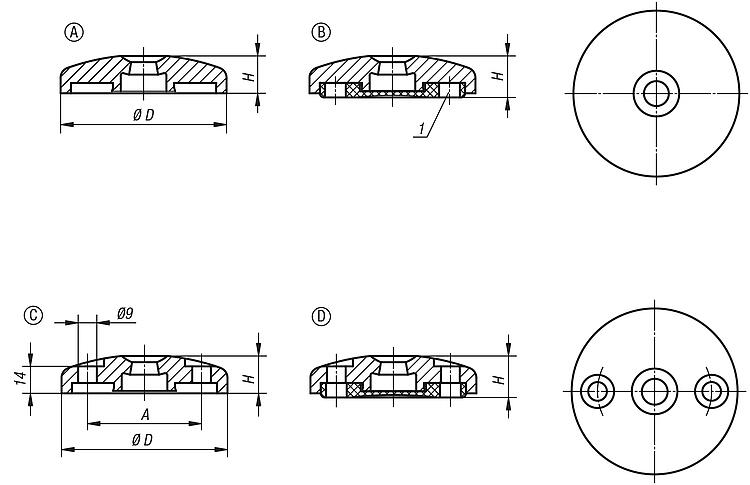

Drawings (total overview)

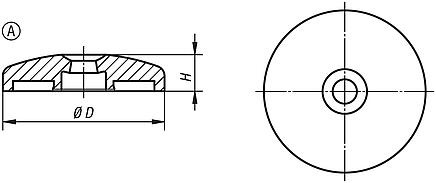

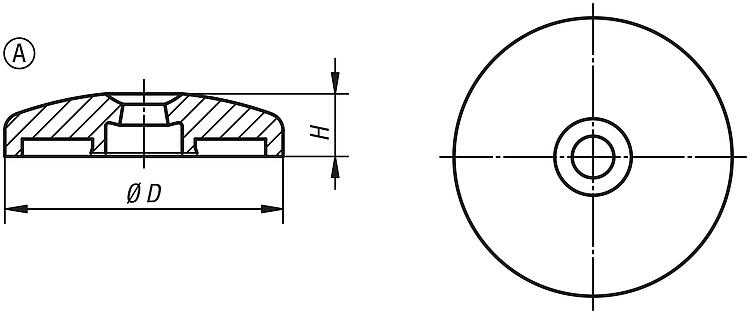

Levelling feet plates, Form A

More information

Drawings

Item selection/filter

Order No.	Form	Main material	D	H	Load rating max. kN	Price
27817-10401	A	zinc	40	18	20	on request
27817-10451	A	zinc	45	18	25	on request
27817-10501	A	zinc	50	18	25	on request
27817-10601	A	zinc	60	18	35	on request
27817-10801	A	zinc	80	18	35	on request
27817-11001	A	zinc	100	18	35	on request
27817-11201	A	zinc	120	18	35	on request
27817-10602	A	stainless steel	60	18	45	on request
27817-10802	A	stainless steel	80	18	45	on request
27817-11002	A	stainless steel	100	18	45	on request

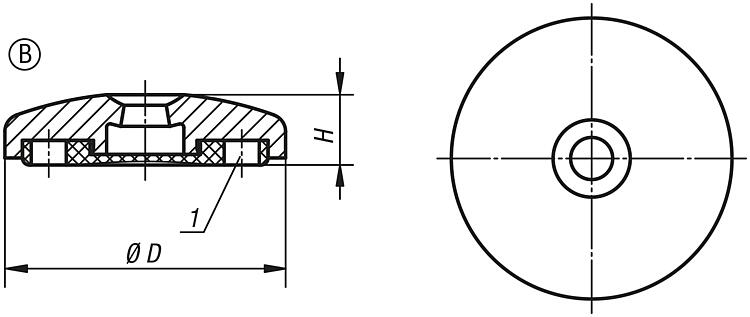

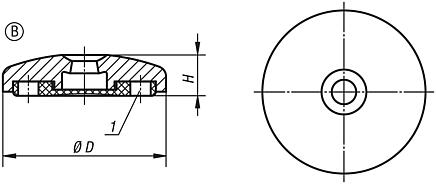

Levelling feet plates, Form B

More information

Drawings

Item selection/filter

Order No.	Form	Main material	D	H	Load rating max. kN	Price
27817-20601	B	zinc	60	20	35	on request
27817-20801	B	zinc	80	20	35	on request
27817-21001	B	zinc	100	20	35	on request
27817-21201	B	zinc	120	20	35	on request
27817-20602	B	stainless steel	60	20	45	on request
27817-20802	B	stainless steel	80	20	45	on request
27817-21002	B	stainless steel	100	20	45	on request

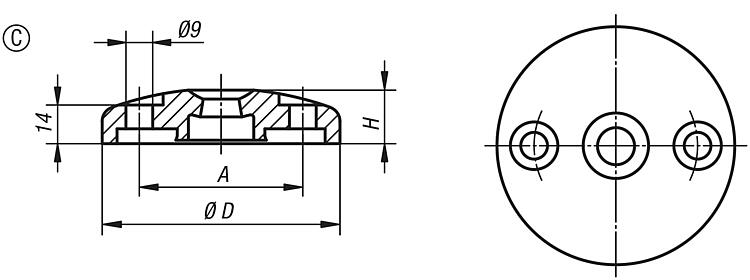

Levelling feet plates, Form C

More information

Drawings

Item selection/filter

Order No.	Form	Main material	D	A	H	Load rating max. kN	Price
27817-30801	C	zinc	80	55	18	35	on request
27817-31001	C	zinc	100	74	18	35	on request
27817-30802	C	stainless steel	80	55	18	45	on request
27817-31002	C	stainless steel	100	74	18	45	on request

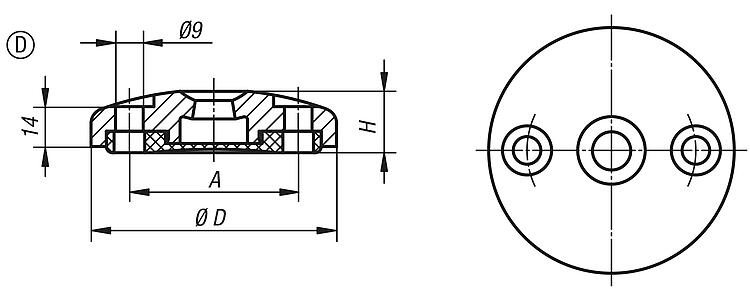

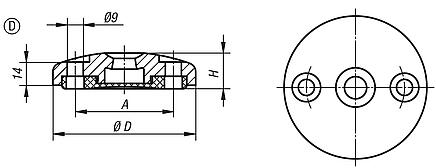

Levelling feet plates, Form D

More information

Drawings

Item selection/filter

Order No.	Form	Main material	D	A	H	Load rating max. kN	Price
27817-40801	D	zinc	80	55	20	35	on request
27817-41001	D	zinc	100	74	20	35	on request
27817-40802	D	stainless steel	80	55	20	45	on request
27817-41002	D	stainless steel	100	74	20	45	on request
