        Levelling feet plates ECO die-cast zinc, stainless steel or plastic

Item description/product images

Show/filter all items

DescriptionMaterial:

Plate thermoplastic, die-cast zinc or stainless steel 1.4305.
Anti-slip plate thermoplastic elastomer.

Version:Thermoplastic plate black.
Die-cast zinc plate blue electro zinc-plated.
Stainless steel plate bright.Note:ECO levelling feet consist of a plate and a threaded spindle. Any plate can be combined with any threaded spindle.
The anti-slip plate absorbs vibrations and prevents the levelling foot slipping.

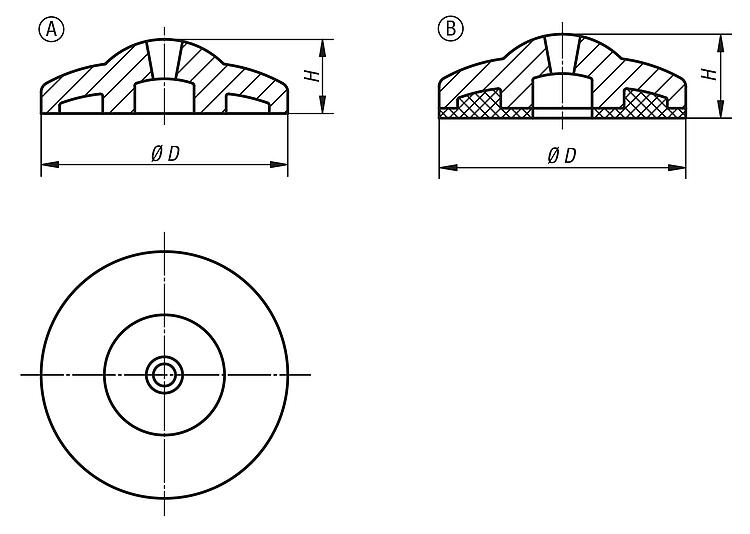

For matching threaded spindles see 27832.Drawing reference:

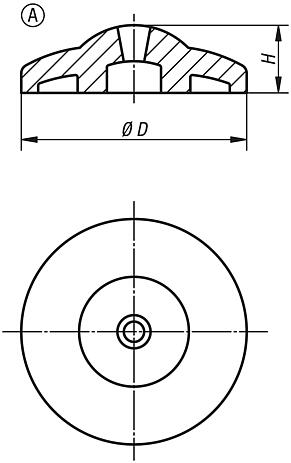

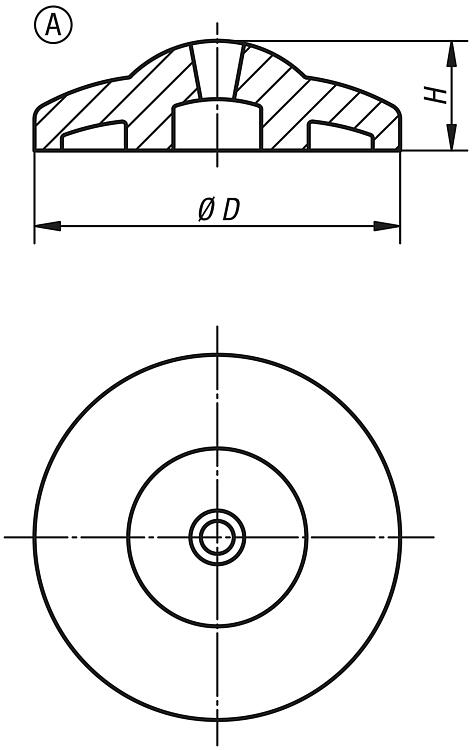

Form A without anti-slip plate

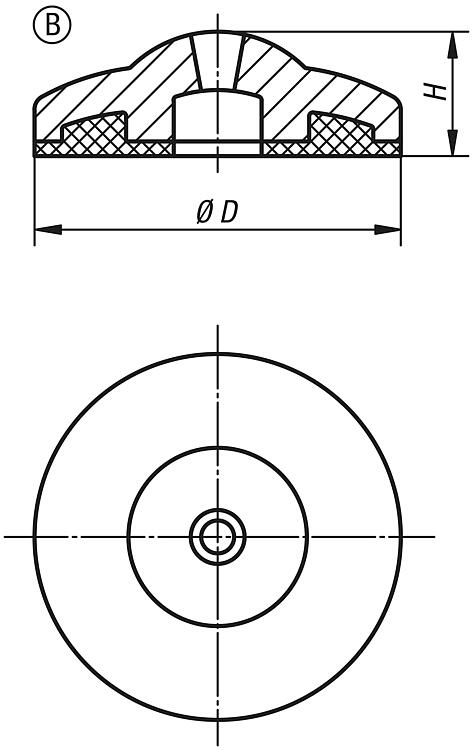

Form B with anti-slip plate

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 27830 Levelling feet plates ECO die-cast zinc, stainless steel or plastic

147 kB

Drawings (total overview)

Levelling feet plates ECO, Form A

More information

Drawings

Item selection/filter

Order No.	Form	Main material	D	H	Load rating max. kN	Price
27830-10301	A	zinc	30	11,5	16	on request
27830-10401	A	zinc	40	12	18	on request
27830-10501	A	zinc	50	14,5	20	on request
27830-10302	A	stainless steel	30	11,5	22	on request
27830-10402	A	stainless steel	40	12	24	on request
27830-10502	A	stainless steel	50	14,5	26	on request
27830-10303	A	thermoplastic	30	11,5	15	on request
27830-10403	A	thermoplastic	40	12	15	on request
27830-10503	A	thermoplastic	50	14,5	15	on request

Levelling feet plates ECO, Form B

More information

Drawings

Item selection/filter

Order No.	Form	Main material	D	H	Load rating max. kN	Price
27830-20301	B	zinc	30	13,5	16	on request
27830-20401	B	zinc	40	14,5	18	on request
27830-20501	B	zinc	50	17,5	20	on request
27830-20302	B	stainless steel	30	13,5	22	on request
27830-20402	B	stainless steel	40	14,5	24	on request
27830-20502	B	stainless steel	50	17,5	26	on request
27830-20303	B	thermoplastic	30	13,5	15	on request
27830-20403	B	thermoplastic	40	14,5	15	on request
27830-20503	B	thermoplastic	50	17,5	15	on request
