        Levelling feet for aluminium profiles

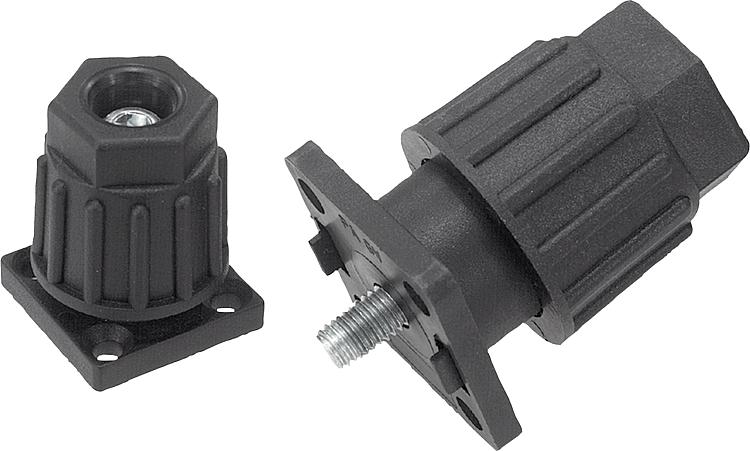

Item description/product images

DescriptionMaterial:Body fibreglass reinforced thermoplastic.
Spindle and washer steel.Version:Body black.
Spindle and washer electro zinc-plated.Note:These levelling feet are suitable for tables and lighter installations. The foot height is adjusted by turning the base nut by hand or spanner. The pins on the top flange centre the foot and prevent it turning. These levelling feet can be attached to aluminium profiles using T-slot nuts, no need for drilling.Drawing reference:

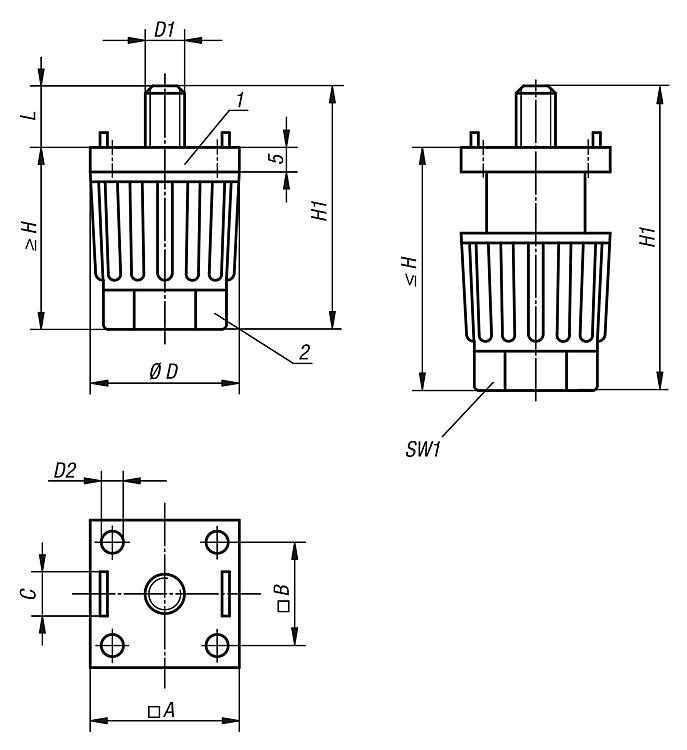

1) support flange
2) nut

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 27840 Levelling feet for aluminium profiles

256 kB

Drawings

Item selection/filter

Order No.	A for aluminium profile	B	C for slot	D	D1	D2 for countersunk screw	H	H1	L	SW1	Load rating max. kN (static load only)	Price
27840-300806	30	20,5	8	30	M6	M4	35-50	44-59	9	22	1,5	on request
27840-300808	30	20,5	8	30	M8	M4	35-50	44-59	9	22	1,5	on request
27840-400808	40	28	8	40	M8	M6	45-65	54-74	9	30	1,5	on request
27840-401006	40	28	10	40	M6	M6	45-65	54-74	9	30	1,5	on request
27840-401008	40	28	10	40	M8	M6	45-65	54-74	9	30	1,5	on request
