DescriptionMaterial:Body fibreglass reinforced thermoplastic.
Hexagon head screw steel.Version:Body black.
Hexagon head screw electro zinc-plated.Note:The flat top flange and sunken screw head make these levelling feet ideal for mounting on smooth surfaces.

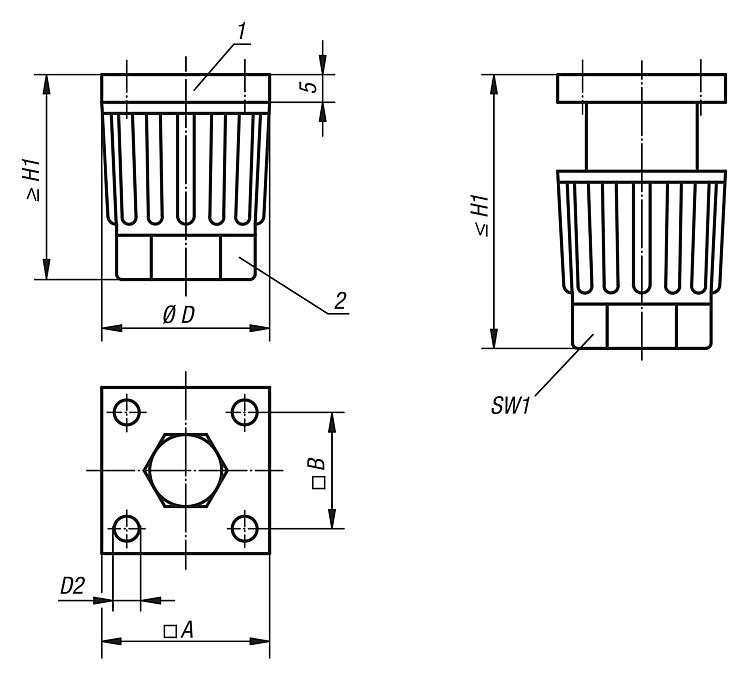

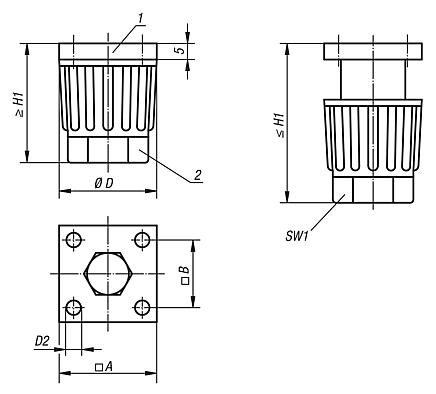

The foot height is adjusted by turning the base nut by hand or spanner.Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| A | B | D | D2
for
countersunk screw | H1 | SW1 | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| 27841-3004 | 30 | 20,5 | 30 | M4 | 35-50 | 22 | 1,5 |  | | on request | | | 27841-4006 | 40 | 28 | 40 | M6 | 45-65 | 30 | 1,5 | | | on request | |
