        Hinges plastic, separable, dismountable

Item description/product images

Show/filter all items

DescriptionProduct description:Hinges for panel elements and aluminium profiles.
The hinge pins can be removed and refitted without tools enabling the hinge halves to be quickly separated and rejoined.
These hinges find use on hatches, covers and frames
Can be used indoors or outdoors.Material:

Fibreglass reinforced thermoplastic.
Hinge pin and accessories stainless steel 1.4305.
Hinge pin steel.

Version:Hinge black similar to RAL 9005.
Hinge pin bright stainless steel.
Hinge pin electro zinc-plated steel.
Accessories bright.Note:The loading values given for the hinges are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for information purposes only and do not constitute a legally binding assurance of properties.

The load values have been determined under laboratory conditions. Each user must determine individually whether the hinge is suitable for the respective application.

Different materials attached to the hinge and the type of attachment used, meteorological conditions and wear can effect the calculated values.Advantages:Tool-free mounting and removalOn request:Unequal leaf length combinations.Accessory:03400 Locking pins with folding latch.
07336 Cotter pin DIN EN ISO 1234.
03199 Key ring.Supplied withTwo hinge halves.

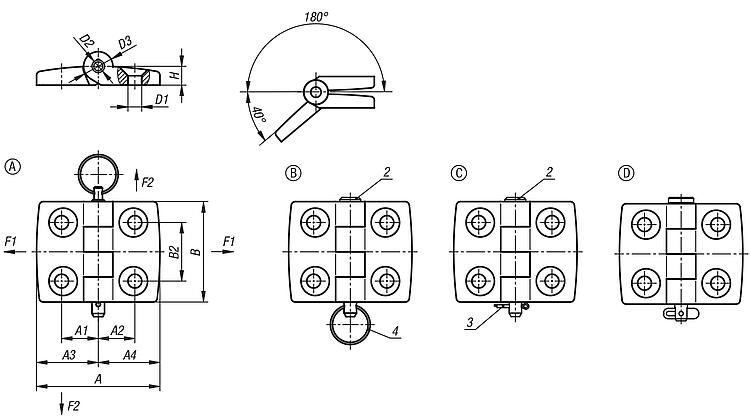

Selected hinge pin and/or accessories.Drawing reference:

Form A: with locking pin
Form B: with pin/head and key ring
Form C: with pin/head and cotter pin
Form D: with locking pin /folding latch

2) Hinge pin
3) Cotter pin
4) Key ring

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 27851 Hinges plastic, separable, dismountable

193 kB

Drawings (total overview)

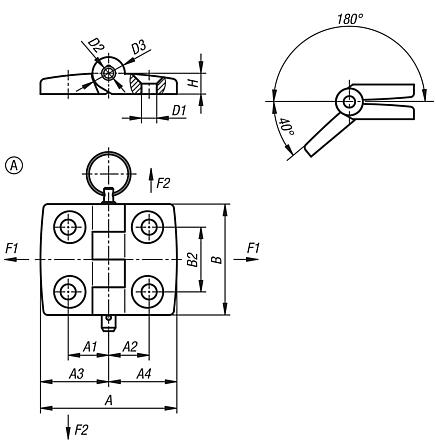

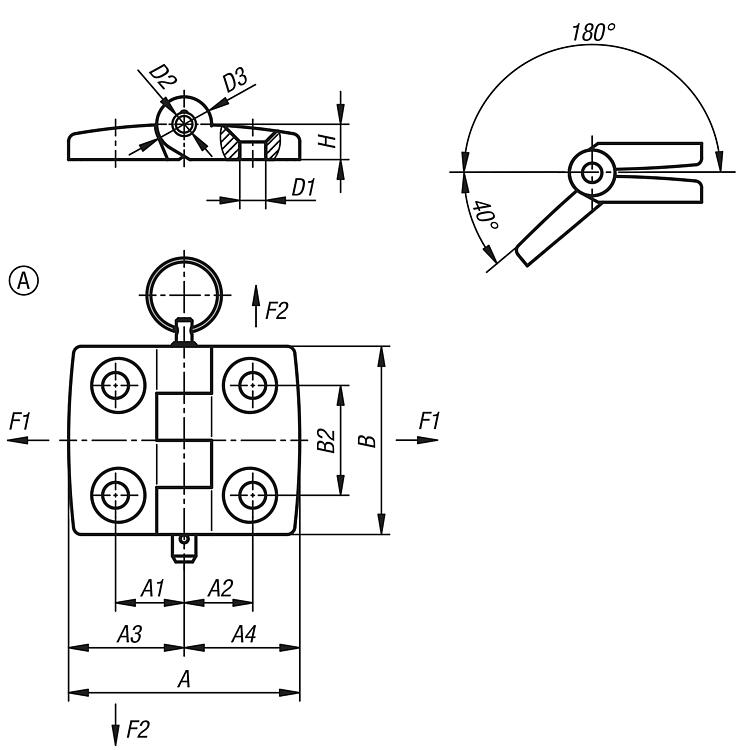

Hinges plastic, separable, dismountable, Form A, with locking pin

More information

Drawings

Hinges plastic, separable, dismountable, Form A, with locking pin

Item selection/filter

Order No.	Form	Form definition	Component material	A	A1	A2	A3	A4	B	B2	D1	D2	D3	H	F1 N	F2 N	Price
27851-25151501	A	-	stainless steel	52	15	15	26	26	48	28	6,6	6	14	9	625	425	on request
27851-30181801	A	-	stainless steel	59	17,5	17,5	29,5	29,5	48	28	6,6	6	14	9	700	400	on request
27851-35202001	A	-	stainless steel	71	20	20	35,5	35,5	48	28	6,6	6	14	9	700	400	on request
27851-40232301	A	-	stainless steel	77	22,5	22,5	38,5	38,5	48	28	6,6	6	14	9	750	450	on request
27851-45252501	A	-	stainless steel	87	25	25	43,5	43,5	48	28	6,6	6	14	9	750	450	on request
27851-50282801	A	-	stainless steel	97	27,5	27,5	48,5	48,5	48	28	6,6	6	14	9	800	425	on request
27851-60333301	A	-	stainless steel	115	32,5	32,5	57,5	57,5	48	28	6,6	6	14	9	850	175	on request

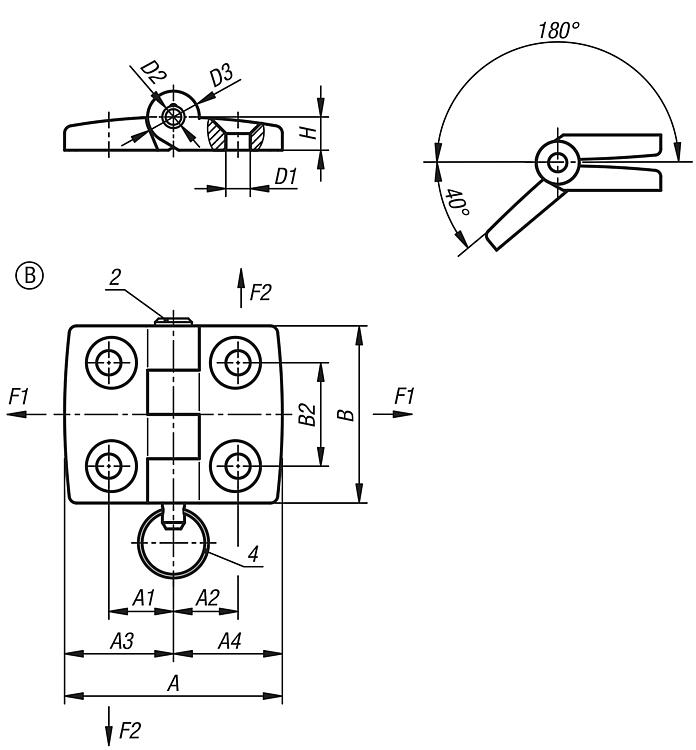

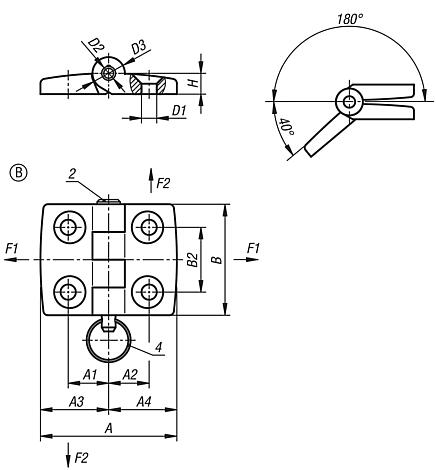

Hinges plastic, separable, dismountable, Form B, with bolt/head and key ring

More information

Drawings

Hinges plastic, separable, dismountable, Form B, with bolt/head and key ring

Item selection/filter

Order No.	Form	Form definition	Component material	A	A1	A2	A3	A4	B	B2	D1	D2	D3	H	F1 N	F2 N	Price
27851-25151502	B	-	stainless steel	52	15	15	26	26	48	28	6,6	6	14	9	625	425	on request
27851-30181802	B	-	stainless steel	59	17,5	17,5	29,5	29,5	48	28	6,6	6	14	9	700	400	on request
27851-35202002	B	-	stainless steel	71	20	20	35,5	35,5	48	28	6,6	6	14	9	700	400	on request
27851-40232302	B	-	stainless steel	77	22,5	22,5	38,5	38,5	48	28	6,6	6	14	9	750	450	on request
27851-45252502	B	-	stainless steel	87	25	25	43,5	43,5	48	28	6,6	6	14	9	750	450	on request
27851-50282802	B	-	stainless steel	97	27,5	27,5	48,5	48,5	48	28	6,6	6	14	9	800	425	on request
27851-60333302	B	-	stainless steel	115	32,5	32,5	57,5	57,5	48	28	6,6	6	14	9	850	175	on request

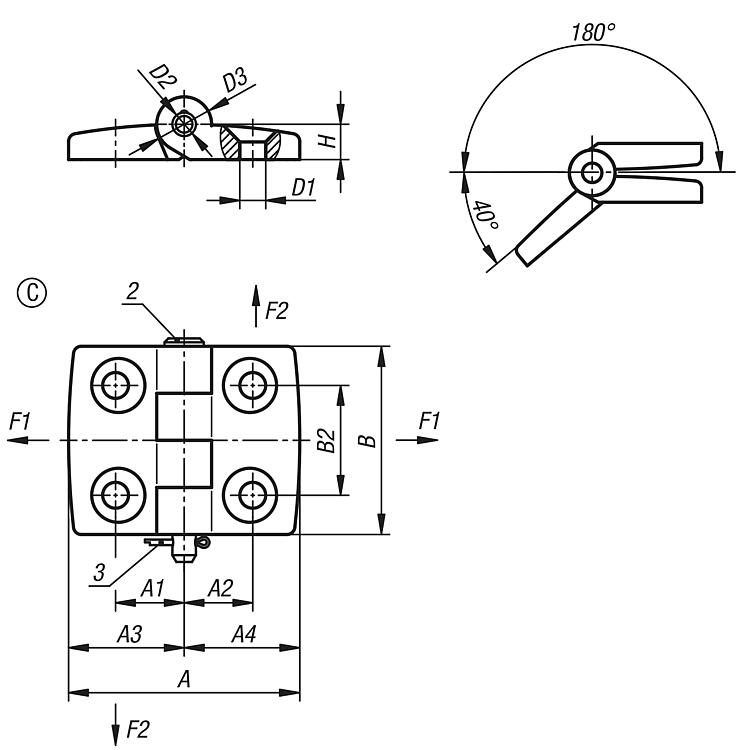

Hinges plastic, separable, dismountable, Form C, with bolt/head and cotter pin

More information

Drawings

Hinges plastic, separable, dismountable, Form C, with bolt/head and cotter pin

Item selection/filter

Order No.	Form	Form definition	Component material	A	A1	A2	A3	A4	B	B2	D1	D2	D3	H	F1 N	F2 N	Price
27851-25151503	C	-	stainless steel	52	15	15	26	26	48	28	6,6	6	14	9	625	425	on request
27851-30181803	C	-	stainless steel	59	17,5	17,5	29,5	29,5	48	28	6,6	6	14	9	700	400	on request
27851-35202003	C	-	stainless steel	71	20	20	35,5	35,5	48	28	6,6	6	14	9	700	400	on request
27851-40232303	C	-	stainless steel	77	22,5	22,5	38,5	38,5	48	28	6,6	6	14	9	750	450	on request
27851-45252503	C	-	stainless steel	87	25	25	43,5	43,5	48	28	6,6	6	14	9	750	450	on request
27851-50282803	C	-	stainless steel	97	27,5	27,5	48,5	48,5	48	28	6,6	6	14	9	800	425	on request
27851-60333303	C	-	stainless steel	115	32,5	32,5	57,5	57,5	48	28	6,6	6	14	9	850	175	on request

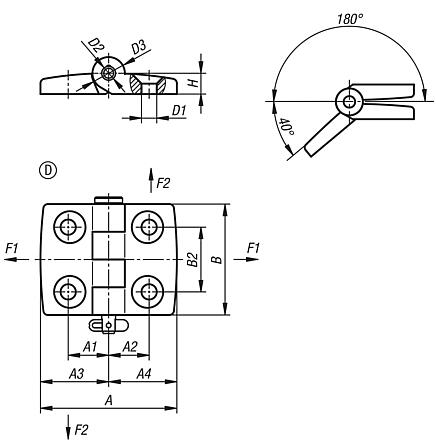

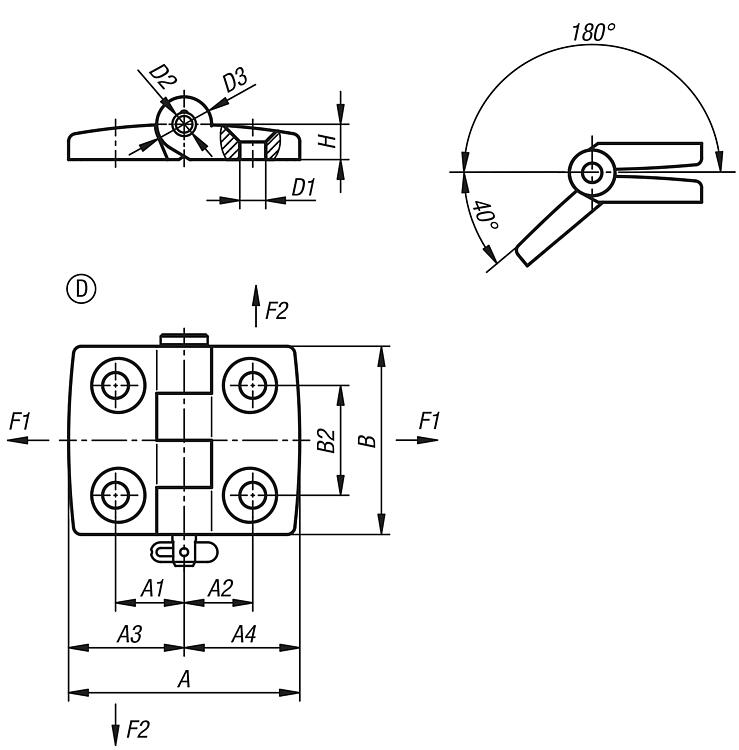

Hinges plastic, separable, dismountable, Form D, with locking pin/folding latch

More information

Drawings

Hinges plastic, separable, dismountable, Form D, with locking pin/folding latch

Item selection/filter

Order No.	Form	Form definition	Component material	A	A1	A2	A3	A4	B	B2	D1	D2	D3	H	F1 N	F2 N	Price
27851-25151504	D	-	steel	52	15	15	26	26	48	28	6,6	6	14	9	625	425	on request
27851-30181804	D	-	steel	59	17,5	17,5	29,5	29,5	48	28	6,6	6	14	9	700	400	on request
27851-35202004	D	-	steel	71	20	20	35,5	35,5	48	28	6,6	6	14	9	700	400	on request
27851-40232304	D	-	steel	77	22,5	22,5	38,5	38,5	48	28	6,6	6	14	9	750	450	on request
27851-45252504	D	-	steel	87	25	25	43,5	43,5	48	28	6,6	6	14	9	750	450	on request
27851-50282804	D	-	steel	97	27,5	27,5	48,5	48,5	48	28	6,6	6	14	9	800	425	on request
27851-60333304	D	-	steel	115	32,5	32,5	57,5	57,5	48	28	6,6	6	14	9	850	175	on request
