        Spring hinges aluminium profile, 0.2 Nm
        Spring hinges aluminium profile, 0.2 Nm, spring closed

Item description/product images

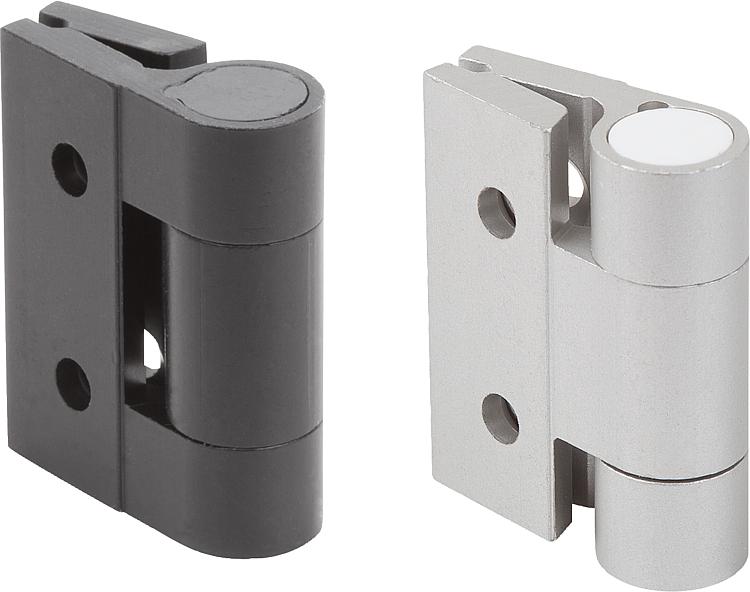

DescriptionMaterial:Aluminium 6060 T5.
Cover plug PA 6.6.Version:Black anodisedNote:These hinges have stainless steel tension springs which enables doors and hatches to open or close automatically.
Opening angle 270°.

Spring torque:
M(0°): 0.08 Nm / M(90°): 0.15 Nm / M(180°): 0.23 Nm

Screw on using DIN 7991 countersunk screws.

The loading values given for the hinges are non-binding reference values without consideration of safety factors and exclude any liability. The values given are for information purposes only and do not constitute a legally binding assurance of properties.
These load values were determined under laboratory conditions. Each user must determine individually whether the hinge is suitable for the respective application.
Different materials onto which the hinges are installed and the type of mounting, weather conditions and wear can influence the determined values.Temperature range:From -20°C to +80°C

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
