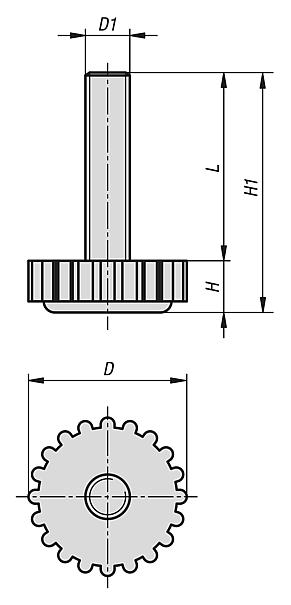

        Levelling feet with knurled base

Item description/product images

DescriptionMaterial:Polyamide.
Screw, steel.Version:Black.
Screw electro zinc-plated.Note:Levelling feet with knurled base. Rigid version.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 27797 Levelling feet with knurled base

132 kB

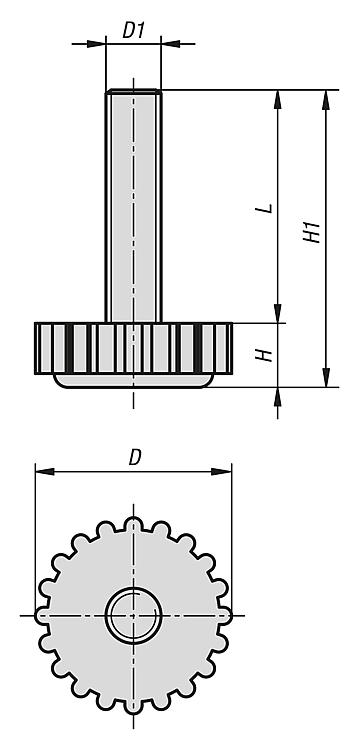

Drawings

Item selection/filter

Order No.	D	D1	H	H1	L	Load rating max. kN (static load only)	Price
27797-2805X016	28,5	M5	9,3	25,3	16	2	on request
27797-2805X020	28,5	M5	9,3	29,3	20	2	on request
27797-2805X025	28,5	M5	9,3	34,3	25	2	on request
27797-2805X040	28,5	M5	9,3	49,3	40	2	on request
27797-2806X016	28,5	M6	9,3	25,3	16	3,5	on request
27797-2806X020	28,5	M6	9,3	29,3	20	3,5	on request
27797-2806X030	28,5	M6	9,3	39,3	30	3,5	on request
27797-2806X040	28,5	M6	9,3	49,3	40	3,5	on request
27797-2806X050	28,5	M6	9,3	59,3	50	3,5	on request
27797-2808X016	28,5	M8	9,3	25,3	16	4,5	on request
27797-2808X020	28,5	M8	9,3	29,3	20	4,5	on request
27797-2808X030	28,5	M8	9,3	39,3	30	4,5	on request
27797-2808X040	28,5	M8	9,3	49,3	40	4,5	on request
27797-2808X050	28,5	M8	9,3	59,3	50	4,5	on request
27797-2808X060	28,5	M8	9,3	69,3	60	4,5	on request
27797-2808X080	28,5	M8	9,3	89,3	80	4,5	on request
