        Levelling feet

Item description/product images

Show/filter all items

DescriptionMaterial:Foot plate and threaded spindle in steel.Version:Foot plate and threaded spindle electro zinc-plated.Note:The threaded spindle is pressed into the rotatable base.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 27798 Levelling feet

196 kB

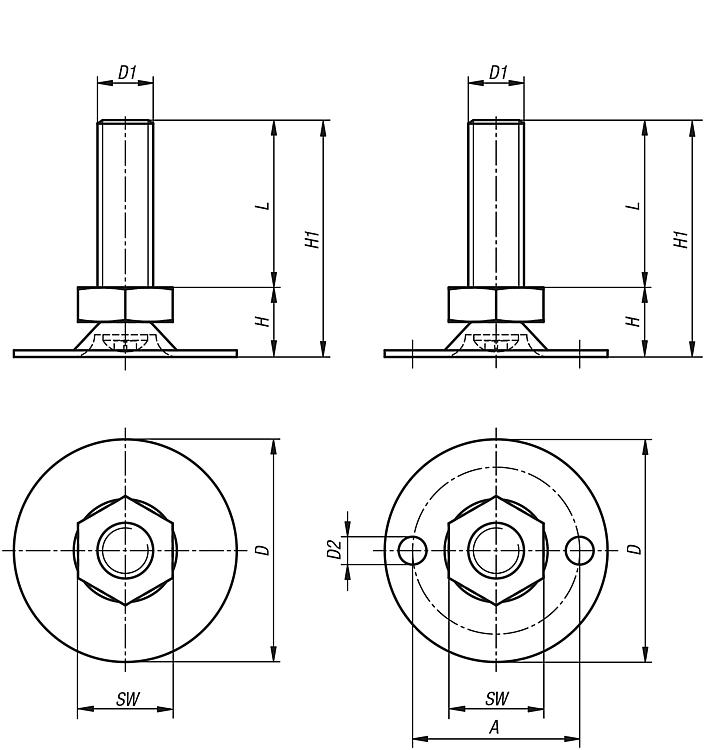

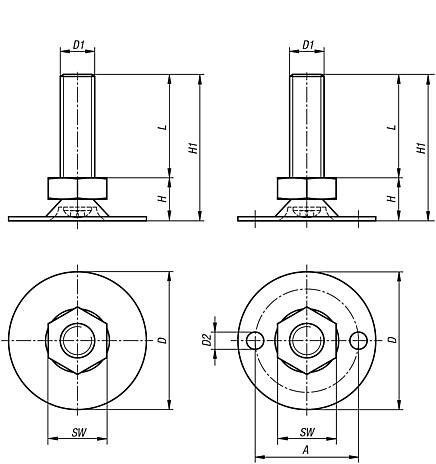

Drawings (total overview)

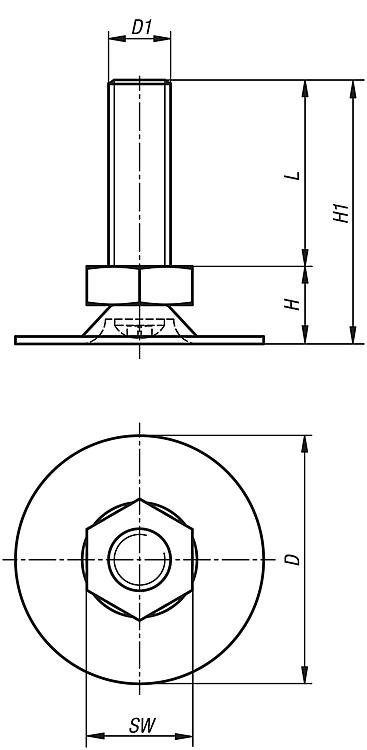

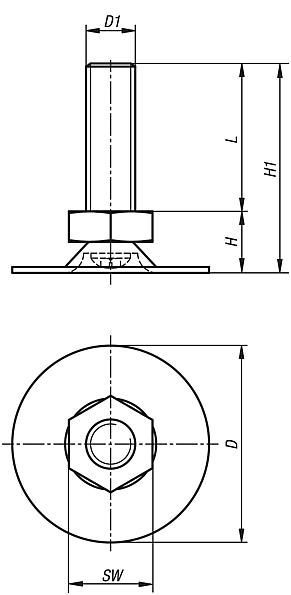

Levelling feet without hole

More information

Drawings

Item selection/filter

Order No.	Version 1	D	D1	H	H1	L	SW	Price
27798-03008X016	without hole	30	M8	11	27	16	13	on request
27798-03008X020	without hole	30	M8	11	31	20	13	on request
27798-03008X030	without hole	30	M8	11	41	30	13	on request
27798-03008X040	without hole	30	M8	11	51	40	13	on request
27798-03008X050	without hole	30	M8	11	61	50	13	on request
27798-03010X016	without hole	30	M10	12,5	28,5	16	17	on request
27798-03010X020	without hole	30	M10	12,5	32,5	20	17	on request
27798-03010X030	without hole	30	M10	12,5	42,5	30	17	on request
27798-03010X040	without hole	30	M10	12,5	52,5	40	17	on request
27798-03010X050	without hole	30	M10	12,5	62,5	50	17	on request
27798-03010X060	without hole	30	M10	12,5	72,5	60	17	on request
27798-04008X016	without hole	40	M8	11	27	16	13	on request
27798-04008X020	without hole	40	M8	11	31	20	13	on request
27798-04008X030	without hole	40	M8	11	41	30	13	on request
27798-04008X040	without hole	40	M8	11	51	40	13	on request
27798-04008X050	without hole	40	M8	11	61	50	13	on request
27798-04010X016	without hole	40	M10	11	27	16	17	on request
27798-04010X020	without hole	40	M10	11	31	20	17	on request
27798-04010X030	without hole	40	M10	11	41	30	17	on request
27798-04010X040	without hole	40	M10	11	51	40	17	on request
27798-04010X050	without hole	40	M10	11	61	50	17	on request
27798-04010X060	without hole	40	M10	11	71	60	17	on request
27798-05008X016	without hole	50	M8	12,5	28,5	16	13	on request
27798-05008X020	without hole	50	M8	12,5	32,5	20	13	on request
27798-05008X030	without hole	50	M8	12,5	42,5	30	13	on request
27798-05008X040	without hole	50	M8	12,5	52,5	40	13	on request
27798-05008X050	without hole	50	M8	12,5	62,5	50	13	on request
27798-05010X016	without hole	50	M10	14	30	16	17	on request
27798-05010X020	without hole	50	M10	14	34	20	17	on request
27798-05010X030	without hole	50	M10	14	44	30	17	on request
27798-05010X040	without hole	50	M10	14	54	40	17	on request
27798-05010X050	without hole	50	M10	14	64	50	17	on request
27798-05010X060	without hole	50	M10	14	74	60	17	on request
27798-06008X016	without hole	60	M8	13,5	29,5	16	13	on request
27798-06008X020	without hole	60	M8	13,5	33,5	20	13	on request
27798-06008X030	without hole	60	M8	13,5	43,5	30	13	on request
27798-06008X040	without hole	60	M8	13,5	53,5	40	13	on request
27798-06008X050	without hole	60	M8	13,5	63,5	50	13	on request
27798-06010X016	without hole	60	M10	15	31	16	17	on request
27798-06010X020	without hole	60	M10	15	35	20	17	on request
27798-06010X030	without hole	60	M10	15	45	30	17	on request
27798-06010X040	without hole	60	M10	15	55	40	17	on request
27798-06010X050	without hole	60	M10	15	65	50	17	on request
27798-06010X060	without hole	60	M10	15	75	60	17	on request

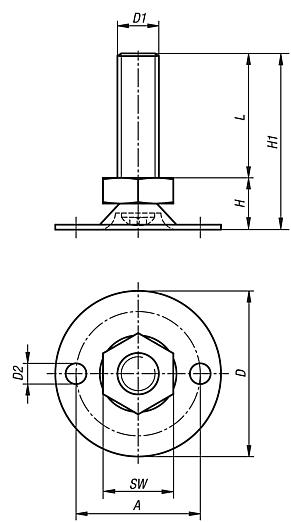

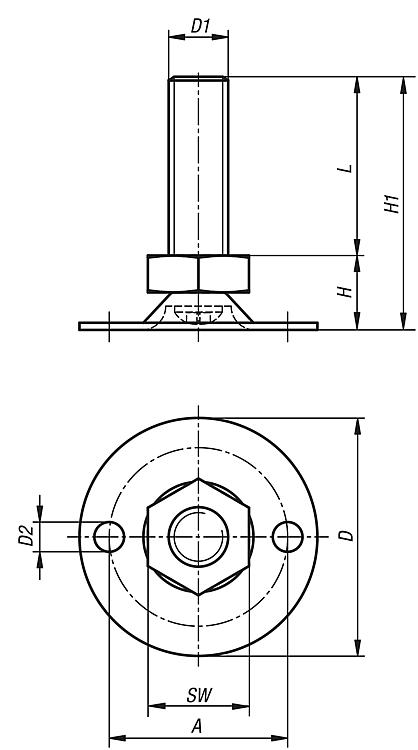

Levelling feet with hole

More information

Drawings

Item selection/filter

Order No.	Version 1	A	D	D1	D2	H	H1	L	SW	Load rating max. kN (static load only)	Price
27798-13008X016	with hole	24,3	30	M8	4	11	27	16	13	2,5	on request
27798-13008X020	with hole	24,3	30	M8	4	11	31	20	13	2,5	on request
27798-13008X030	with hole	24,3	30	M8	4	11	41	30	13	2,5	on request
27798-13008X040	with hole	24,3	30	M8	4	11	51	40	13	2,5	on request
27798-13008X050	with hole	24,3	30	M8	4	11	61	50	13	2,5	on request
27798-13010X016	with hole	24,3	30	M10	4	12,5	28,5	16	17	3,5	on request
27798-13010X020	with hole	24,3	30	M10	4	12,5	32,5	20	17	3,5	on request
27798-13010X030	with hole	24,3	30	M10	4	12,5	42,5	30	17	3,5	on request
27798-13010X040	with hole	24,3	30	M10	4	12,5	52,5	40	17	3,5	on request
27798-13010X050	with hole	24,3	30	M10	4	12,5	62,5	50	17	3,5	on request
27798-13010X060	with hole	24,3	30	M10	4	12,5	72,5	60	17	3,5	on request
27798-14008X016	with hole	30	40	M8	5	11	27	16	13	2,5	on request
27798-14008X020	with hole	30	40	M8	5	11	31	20	13	2,5	on request
27798-14008X030	with hole	30	40	M8	5	11	41	30	13	2,5	on request
27798-14008X040	with hole	30	40	M8	5	11	51	40	13	2,5	on request
27798-14008X050	with hole	30	40	M8	5	11	61	50	13	2,5	on request
27798-14010X016	with hole	30	40	M10	5	11	27	16	17	3,5	on request
27798-14010X020	with hole	30	40	M10	5	11	31	20	17	3,5	on request
27798-14010X030	with hole	30	40	M10	5	11	41	30	17	3,5	on request
27798-14010X040	with hole	30	40	M10	5	11	51	40	17	3,5	on request
27798-14010X050	with hole	30	40	M10	5	11	61	50	17	3,5	on request
27798-14010X060	with hole	30	40	M10	5	11	71	60	17	3,5	on request
27798-15008X016	with hole	35	50	M8	5,5	12,5	28,5	16	13	2,5	on request
27798-15008X020	with hole	35	50	M8	5,5	12,5	32,5	20	13	2,5	on request
27798-15008X030	with hole	35	50	M8	5,5	12,5	42,5	30	13	2,5	on request
27798-15008X040	with hole	35	50	M8	5,5	12,5	52,5	40	13	2,5	on request
27798-15008X050	with hole	35	50	M8	5,5	12,5	62,5	50	13	2,5	on request
27798-15010X016	with hole	35	50	M10	5,5	14	30	16	17	3,5	on request
27798-15010X020	with hole	35	50	M10	5,5	14	34	20	17	3,5	on request
27798-15010X030	with hole	35	50	M10	5,5	14	44	30	17	3,5	on request
27798-15010X040	with hole	35	50	M10	5,5	14	54	40	17	3,5	on request
27798-15010X050	with hole	35	50	M10	5,5	14	64	50	17	3,5	on request
27798-15010X060	with hole	35	50	M10	5,5	14	74	60	17	3,5	on request
27798-16008X016	with hole	46	60	M8	5,5	13,5	29,5	16	13	2,5	on request
27798-16008X020	with hole	46	60	M8	5,5	13,5	33,5	20	13	2,5	on request
27798-16008X030	with hole	46	60	M8	5,5	13,5	43,5	30	13	2,5	on request
27798-16008X040	with hole	46	60	M8	5,5	13,5	53,5	40	13	2,5	on request
27798-16008X050	with hole	46	60	M8	5,5	13,5	63,5	50	13	2,5	on request
27798-16010X016	with hole	46	60	M10	5,5	15	31	16	17	3,5	on request
27798-16010X020	with hole	46	60	M10	5,5	15	35	20	17	3,5	on request
27798-16010X030	with hole	46	60	M10	5,5	15	45	30	17	3,5	on request
27798-16010X040	with hole	46	60	M10	5,5	15	55	40	17	3,5	on request
27798-16010X050	with hole	46	60	M10	5,5	15	65	50	17	3,5	on request
27798-16010X060	with hole	46	60	M10	5,5	15	75	60	17	3,5	on request
