27799-20Plugs, plastic with felt glide surface for round and square... |
go back |
|
|
DescriptionMaterial:Body polyethylene.
Glide face synthetic needle felt.Version:Body black.Note:The felt surface enables gentle and quiet gliding or sliding.
The lamellar are closed or interrupted. For technical production reasons, cast residues may exceed the shaft length.Application:The plugs are used in steel pipes, tube covers or aluminium base frames in industry, trade and households. Especially suitable to avoid scratches on sensitive and hard floors such as stone or laminate.Assembly:They can be pushed in by hand or tapped in with a plastic hammer.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

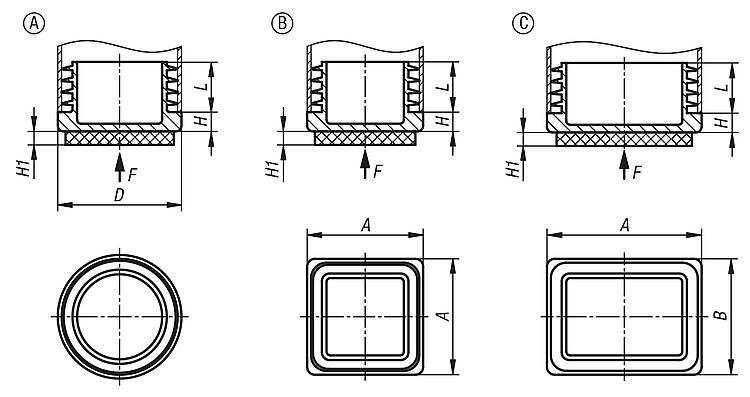

Drawings (total overview) |

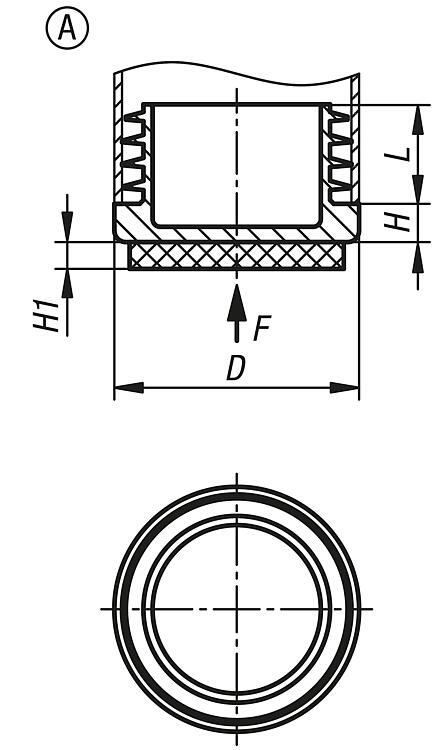

Plugs, plastic with felt glide surface for round and square tubes, Form A, round |
More information |
| Order No. | Version 2 | Form | Form definition | D | H
| H1 | L | Suitable for
| CAD | Acc. | Price | Order |
|---|
| 27799-20-00120820 | for round tubes | A | round | 12 | 3,5 | 3,5 | 10 | Ø12x0.8-2 |  | | on request | | | 27799-20-00130820 | for round tubes | A | round | 13 | 4 | 3,5 | 11,5 | Ø13x0.8-2 | | | on request | | | 27799-20-00140820 | for round tubes | A | round | 14 | 5 | 3,5 | 10,5 | Ø14x0.8-2 | | | on request | | | 27799-20-00150820 | for round tubes | A | round | 15 | 3 | 3,5 | 11,5 | Ø15x0.8-2 | | | on request | | | 27799-20-00160820 | for round tubes | A | round | 16 | 5 | 3,5 | 11,5 | Ø16x0.8-2 | | | on request | | | 27799-20-00180825 | for round tubes | A | round | 18 | 5 | 3,5 | 11,5 | - | | | on request | | | 27799-20-00190825 | for round tubes | A | round | 19 | 5 | 3,5 | 11,5 | Ø19x0.8-2.5 | | | on request | | | 27799-20-00200825 | for round tubes | A | round | 20 | 5 | 3,5 | 11,5 | - | | | on request | | | 27799-20-00220830 | for round tubes | A | round | 22 | 5 | 3,5 | 11,5 | Ø22x0.8-3 | | | on request | | | 27799-20-00230830 | for round tubes | A | round | 23 | 5 | 3,5 | 11,5 | Ø23x0.8-3 | | | on request | | | 27799-20-00251030 | for round tubes | A | round | 25 | 5 | 3,5 | 11,5 | Ø25x1-3 | | | on request | | | 27799-20-00260830 | for round tubes | A | round | 26 | 5 | 3,5 | 11,5 | Ø26x0.8-3 | | | on request | | | 27799-20-00280825 | for round tubes | A | round | 28 | 5 | 3,5 | 11,5 | Ø28x0.8-2.5 | | | on request | | | 27799-20-00300825 | for round tubes | A | round | 30 | 5 | 3,5 | 11,5 | - | | | on request | | | 27799-20-00320830 | for round tubes | A | round | 32 | 5 | 3,5 | 11,5 | Ø32x0.8-3 | | | on request | | | 27799-20-00351030 | for round tubes | A | round | 35 | 5 | 3,5 | 11,5 | Ø35x1-3 | | | on request | | | 27799-20-00401030 | for round tubes | A | round | 40 | 5 | 3,5 | 11,5 | Ø40x1-3 | | | on request | | | 27799-20-00420825 | for round tubes | A | round | 42 | 5 | 3,5 | 11,5 | Ø42x0.8-2.5 | | | on request | |
|

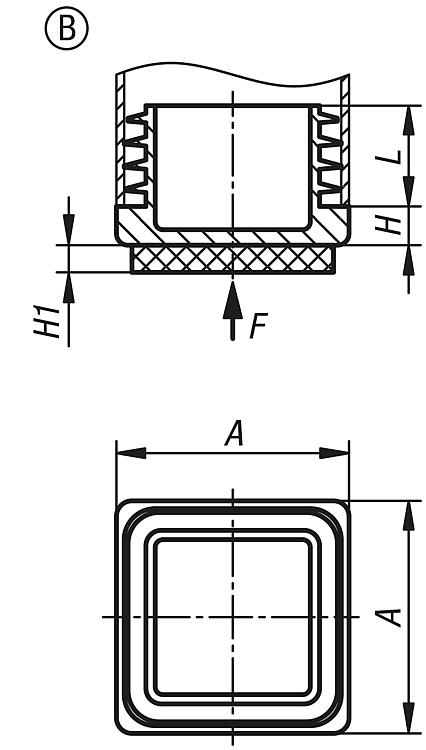

Plugs, plastic with felt glide surface for round and square tubes, Form B, square |
More information |
| Order No. | Version 2 | Form | Form definition | A | H
| H1 | L | Suitable for
| CAD | Acc. | Price | Order |
|---|
| 27799-20-13130520 | for square tubing | B | - | 13 | 4 | 3,5 | 11,5 | - | | | on request | | | 27799-20-15150820 | for square tubing | B | - | 15 | 3 | 3,5 | 11,5 | - | | | on request | | | 27799-20-16160820 | for square tubing | B | - | 16 | 5 | 3,5 | 11,5 | - | | | on request | | | 27799-20-18181530 | for square tubing | B | - | 18 | 5 | 3,5 | 11,5 | - | | | on request | | | 27799-20-20200830 | for square tubing | B | - | 20 | 5 | 3,5 | 11,5 | - | | | on request | | | 27799-20-22220830 | for square tubing | B | - | 22 | 5 | 3,5 | 11,5 | - | | | on request | | | 27799-20-25251030 | for square tubing | B | - | 25 | 5 | 3,5 | 11,5 | 25 x 25 x 1-3 | | | on request | | | 27799-20-30301025 | for square tubing | B | - | 30 | 5 | 3,5 | 11,5 | - | | | on request | |
|

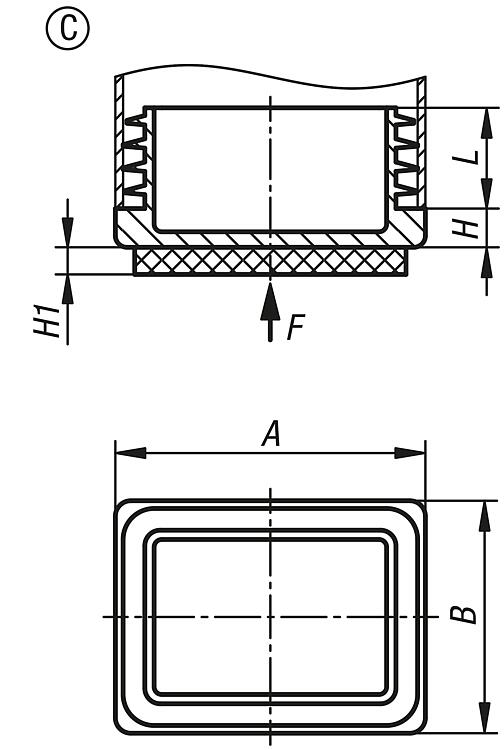

Plugs, plastic with felt glide surface for round and square tubes, Form C, rectangular |
More information |
| Order No. | Version 2 | Form | Form definition | A | B | H
| H1 | L | Suitable for
| CAD | Acc. | Price | Order |
|---|
| 27799-20-20151020 | - | C | - | 20 | 15 | 5 | 3,5 | 11,5 | 20x15x1-2 | | | on request | | | 27799-20-25201030 | - | C | - | 25 | 20 | 5 | 3,5 | 11,5 | 25x20x1-3 | | | on request | | | 27799-20-30100820 | - | C | - | 30 | 10 | 3 | 3,5 | 11,5 | - | | | on request | | | 27799-20-30150825 | - | C | - | 30 | 15 | 5 | 3,5 | 11,5 | - | | | on request | | | 27799-20-35100820 | - | C | - | 35 | 10 | 5 | 3,5 | 11,5 | - | | | on request | | | 27799-20-35151030 | - | C | - | 35 | 15 | 5 | 3,5 | 11,5 | 35x15x1-3 | | | on request | | | 27799-20-40101520 | - | C | - | 40 | 10 | 5 | 3,5 | 11 | - | | | on request | | | 27799-20-40151020 | - | C | - | 40 | 15 | 5 | 3,5 | 11,7 | 40x15x1-2 | | | on request | | | 27799-20-40301030 | - | C | - | 40 | 30 | 5 | 3,5 | 11,5 | 40x30x1-3 | | | on request | |
|
