        Swivel screws, steel or stainless steel

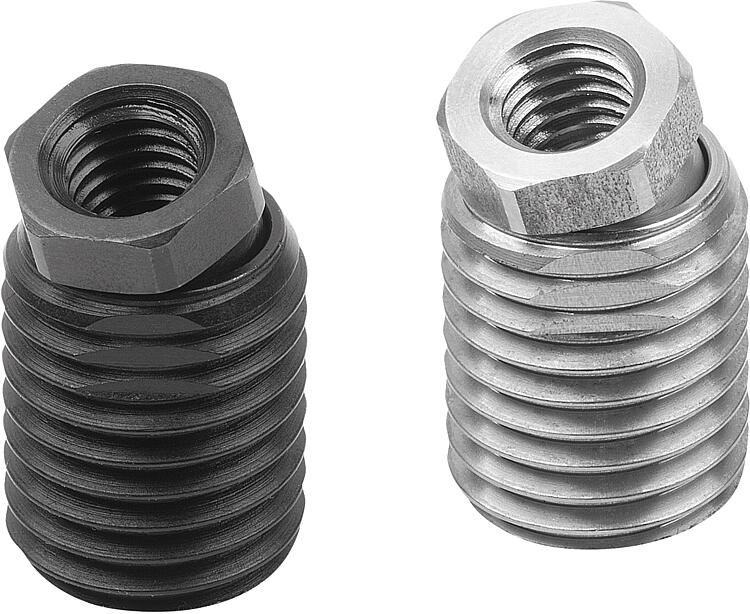

Item description/product images

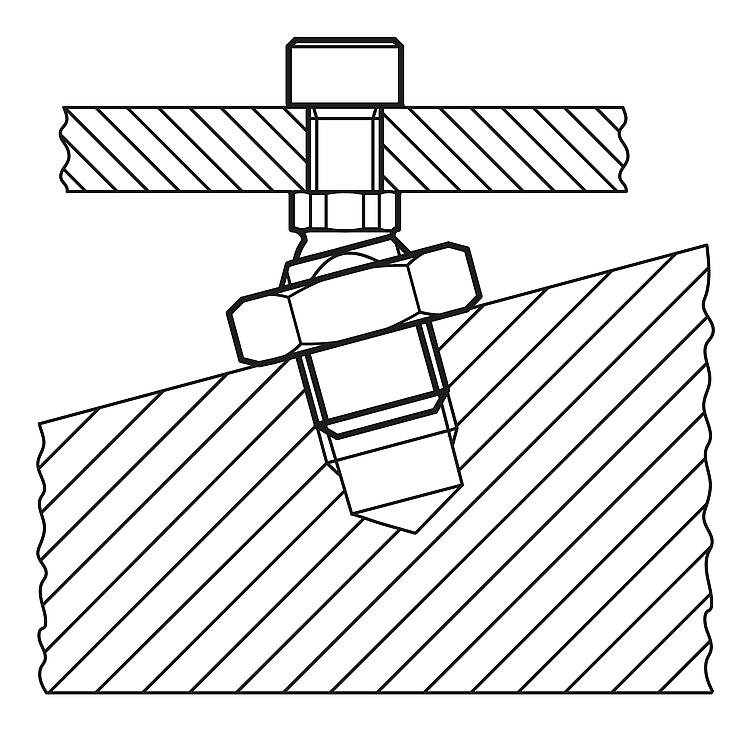

DescriptionProduct description:Swivel screws serve as a flexibly adjustable connecting elements to compensate for angles and spacings.
For example, as a foot element on machines or housings.Material:

Threaded sleeve QT steel grade 10.9 or stainless steel 1.4305.
Ball element free-cutting steel or stainless steel 1.4305.

Version:QT steel tempered and black oxidised
Free-cutting steel hardened and black oxidised.
Stainless steel bright.Note:Swivel screws may only be subjected to compressive loads.

The specified static load rating results from the material used for the ball element and is a static axial force.
Bending and buckling stresses occurring during application must be taken into account by the user.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 27807 Swivel screws, steel or stainless steel

389 kB

Drawings

Item selection/filter

	steel stainless steel	M10 M12 M16 M24 M30x2 M38x2	M5 M6 M8 M10 M12 M16 M20	7,8 9,6 13,2 20 27,7 34,6	6 8,5 15 21 31 58 91 2,6 4 7 11 16 30 46	18,9 21,2 26 40 45,5 54,5	14 16 20 30 36 40	5 6 8 12 17	9 10 14 20 27 32	7 9 12 19 24 30	5 7 9 11 14 18					Reset
Order No.	Main material	D1=Thread	D2=Thread	D3	Load rating max. kN (static load only)	L1	L2	SW1	SW2	SW3	T	W=Swivel angle	CAD	Acc.	Price	Order
27807-1005	steel	M10	M5	7,8	6	18,9	14	5	9	7	5	10°			on request
27807-1206	steel	M12	M6	9,6	8,5	21,2	16	6	10	9	5	15°			on request
27807-1608	steel	M16	M8	13,2	15	26	20	8	14	12	7	15°			on request
27807-2410	steel	M24	M10	20	21	40	30	12	20	19	9	15°			on request
27807-2412	steel	M24	M12	20	31	40	30	12	20	19	11	15°			on request
27807-3016	steel	M30x2	M16	27,7	58	45,5	36	12	27	24	14	15°			on request
27807-3820	steel	M38x2	M20	34,6	91	54,5	40	17	32	30	18	15°			on request
27807-11005	stainless steel	M10	M5	7,8	2,6	18,9	14	5	9	7	5	10°			on request
27807-11206	stainless steel	M12	M6	9,6	4	21,2	16	6	10	9	5	15°			on request
27807-11608	stainless steel	M16	M8	13,2	7	26	20	8	14	12	7	15°			on request
27807-12410	stainless steel	M24	M10	20	11	40	30	12	20	19	9	15°			on request
27807-12412	stainless steel	M24	M12	20	16	40	30	12	20	19	11	15°			on request
27807-13016	stainless steel	M30x2	M16	27,7	30	45,5	36	12	27	24	14	15°			on request
27807-13820	stainless steel	M38x2	M20	34,6	46	54,5	40	17	32	30	18	15°			on request
