        Plugs with tapped hole, plastic for square tubes

Item description/product images

DescriptionMaterial:Body polyamide.Version:Body black.Note:Threaded round inserts for attaching levelling feet, swivel feet and castors to round tubes.Assembly:They can be pushed in by hand or tapped in with a plastic hammer.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 27835-05 Plugs with tapped hole, plastic for square tubes

237 kB

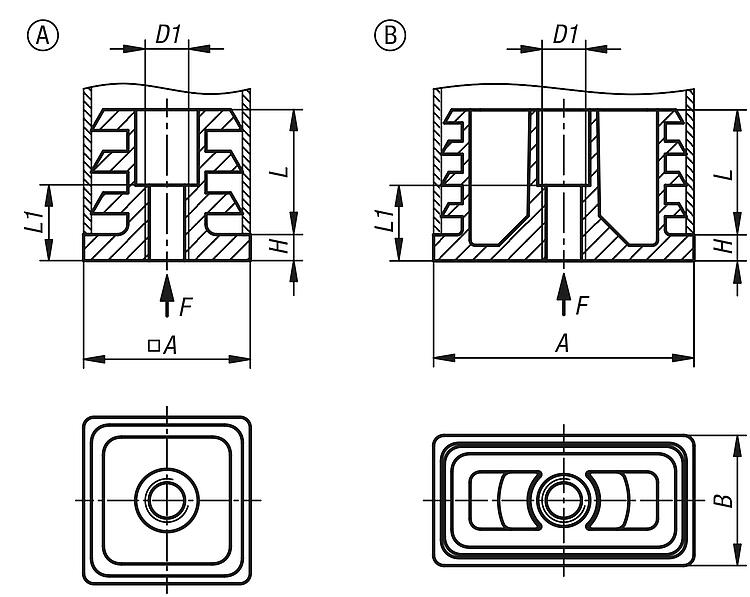

Drawings (total overview)

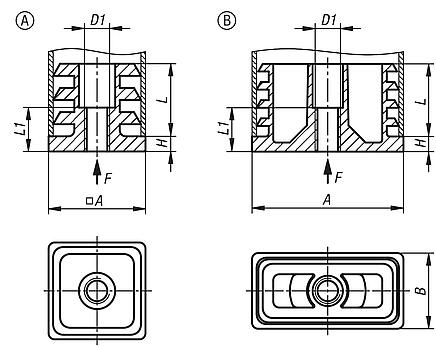

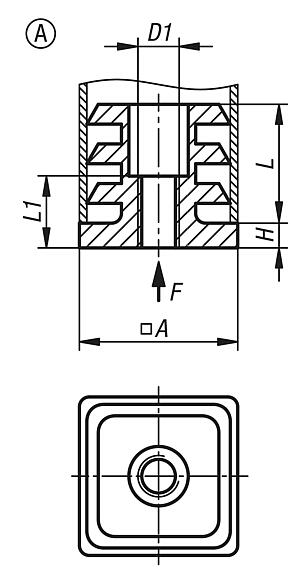

Plugs with tapped hole, plastic for square tubes, Form A, square

More information

Drawings

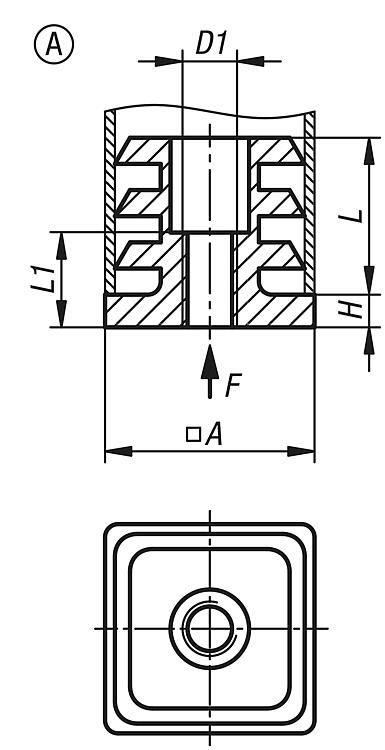

Plugs with tapped hole, plastic for square tubes, Form A, square

Item selection/filter

Order No.	Form	Form definition	A	D1	H	L	L1	Load rating max. kN (static load only)	Suitable for	Price
27835-05-2020081520	A	-	20	M8	5	16,5	14,5	2	-	on request
27835-05-2222081520	A	-	22	M8	5	16,5	14,5	2	-	on request
27835-05-2525081520	A	-	25	M8	5	16,5	14,5	2	-	on request
27835-05-3030081520	A	-	30	M8	5	16,5	14,5	2	-	on request
27835-05-3030082530	A	-	30	M8	5	16,5	14,5	2	-	on request
27835-05-3232081520	A	-	32	M8	5	24	14,5	2	-	on request
27835-05-3434081520	A	-	34	M8	5	24	14,5	2	-	on request
27835-05-3535081520	A	-	35	M8	5	24	14,5	2	-	on request
27835-05-3838081520	A	-	38	M8	5	24	14,5	2	-	on request
27835-05-4040081520	A	-	40	M8	5	24	14,5	2	-	on request
27835-05-4040082530	A	-	40	M8	5	24	14,5	2	-	on request
27835-05-4545081520	A	-	45	M8	5	24	14,5	2	-	on request
27835-05-5050081520	A	-	50	M8	5	24	14,5	2	-	on request
27835-05-5050082530	A	-	50	M8	5	24	14,5	2	-	on request
27835-05-2020101520	A	-	20	M10	5	16,5	14,5	2	-	on request
27835-05-2222101520	A	-	22	M10	5	16,5	14,5	2	-	on request
27835-05-2525101520	A	-	25	M10	5	16,5	14,5	2	-	on request
27835-05-3030101520	A	-	30	M10	5	16,5	14,5	2	-	on request
27835-05-3030102530	A	-	30	M10	5	16,5	14,5	2	-	on request
27835-05-3232101520	A	-	32	M10	5	24	14,5	2	-	on request
27835-05-3434101520	A	-	34	M10	5	24	14,5	2	-	on request
27835-05-3535101520	A	-	35	M10	5	24	14,5	2	-	on request
27835-05-3838101520	A	-	38	M10	5	24	14,5	2	-	on request
27835-05-4040101520	A	-	40	M10	5	24	14,5	2	-	on request
27835-05-4040102530	A	-	40	M10	5	24	14,5	2	-	on request
27835-05-4545101520	A	-	45	M10	5	24	14,5	2	-	on request
27835-05-5050101520	A	-	50	M10	5	24	14,5	2	-	on request
27835-05-5050102530	A	-	50	M10	5	24	14,5	2	-	on request
27835-05-2525121520	A	-	25	M12	5	16,5	14,5	2	-	on request
27835-05-3030121520	A	-	30	M12	5	16,5	14,5	2	-	on request
27835-05-3030122530	A	-	30	M12	5	16,5	14,5	2	-	on request
27835-05-3232121520	A	-	32	M12	5	24	14,5	2	-	on request
27835-05-3434121520	A	-	34	M12	5	24	14,5	2	-	on request
27835-05-3535121520	A	-	35	M12	5	24	14,5	2	-	on request
27835-05-3838121520	A	-	38	M12	5	24	14,5	2	-	on request
27835-05-4040121520	A	-	40	M12	5	24	14,5	2	-	on request
27835-05-4040122530	A	-	40	M12	5	24	14,5	2	-	on request
27835-05-4545121520	A	-	45	M12	5	24	14,5	2	-	on request
27835-05-5050121520	A	-	50	M12	5	24	14,5	2	-	on request
27835-05-5050122530	A	-	50	M12	5	24	14,5	2	-	on request

Plugs with tapped hole, plastic for square tubes, Form B, rectangular

More information

Drawings

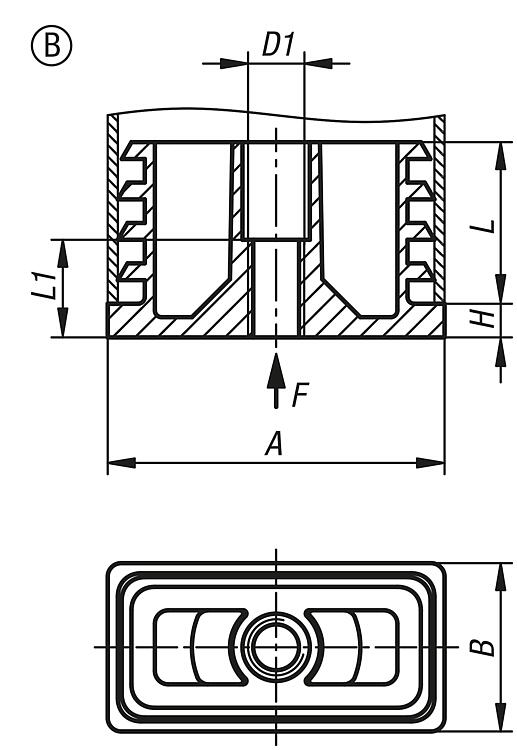

Plugs with tapped hole, plastic for square tubes, Form B, rectangular

Item selection/filter

Order No.	Form	Form definition	A	B	D1	H	L	L1	Load rating max. kN (static load only)	Suitable for	Price
27835-05-4020081520	B	-	40	20	M8	5	24	14,5	2	-	on request
27835-05-4025081520	B	-	40	25	M8	5	24	14,5	2	-	on request
27835-05-4030081520	B	-	40	30	M8	5	24	14,5	2	-	on request
27835-05-5020081520	B	-	50	20	M8	5	24	14,5	2	-	on request
27835-05-5025082530	B	-	50	25	M8	5	24	14,5	2	-	on request
27835-05-5030081015	B	-	50	30	M8	5	24	14,5	2	-	on request
27835-05-5030081520	B	-	50	30	M8	5	24	14,5	2	-	on request
27835-05-6025081520	B	-	60	25	M8	5	24	14,5	2	-	on request
27835-05-6030081520	B	-	60	30	M8	5	24	14,5	2	-	on request
27835-05-6040081520	B	-	60	40	M8	5	24	14,5	2	-	on request
27835-05-4020101520	B	-	40	20	M10	5	24	14,5	2	-	on request
27835-05-4025101520	B	-	40	25	M10	5	24	14,5	2	-	on request
27835-05-4030101520	B	-	40	30	M10	5	24	14,5	2	-	on request
27835-05-5020101520	B	-	50	20	M10	5	24	14,5	2	-	on request
27835-05-5025102530	B	-	50	25	M10	5	24	14,5	2	-	on request
27835-05-5030101015	B	-	50	30	M10	5	24	14,5	2	-	on request
27835-05-5030101520	B	-	50	30	M10	5	24	14,5	2	-	on request
27835-05-6025101520	B	-	60	25	M10	5	24	14,5	2	-	on request
27835-05-6030101520	B	-	60	30	M10	5	24	14,5	2	-	on request
27835-05-6040101520	B	-	60	40	M10	5	24	14,5	2	-	on request
27835-05-4030121520	B	-	40	30	M12	5	24	14,5	2	-	on request
27835-05-5030121015	B	-	50	30	M12	5	24	14,5	2	-	on request
27835-05-5030121520	B	-	50	30	M12	5	24	14,5	2	-	on request
27835-05-6030121520	B	-	60	30	M12	5	24	14,5	2	-	on request
27835-05-6040121520	B	-	60	40	M12	5	24	14,5	2	-	on request
