27616
Hinge plates
go back
Products
Product overview
Systems and components for machine and plant construction
Clevis joints Rod ends Ball joints Axial joints Levelling sets Swivel feet Levelling feet Tube-end plugs Equipment feet Hinges
Rod ends
Hinge plates
Item description/product images
Description
Material:
Steel or stainless steel 1.4404.
Version:
Steel electro zinc-plated.
Stainless steel bright.
Download
Here is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
Datasheet 27616 Hinge plates
125 kB

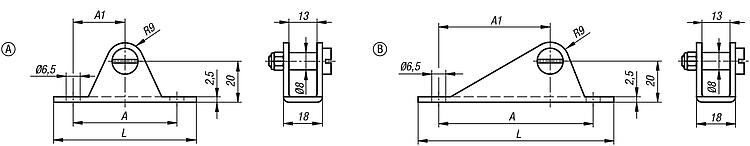

Drawings
Item selection/filter
Order No.
Main
material
Form
A
A1
L
Strength
N
CAD
Acc.
Price
Order
27616-08070
steel
A
51
25,5
70
1800
on request
27616-08095
steel
B
75
57
95
1800
on request
27616-080701
stainless steel
A
51
25,5
70
1800
on request
27616-080951
stainless steel
B
75
57
95
1800
on request
