        Indexing plungers steel, with cam lever

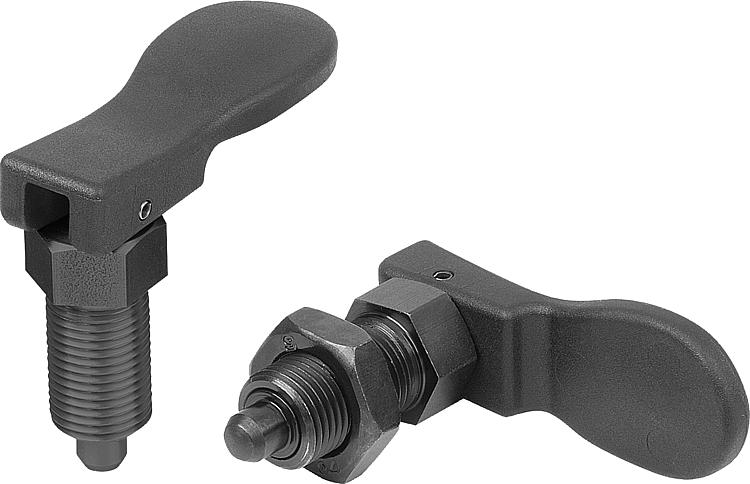

Item description/product images

Show/filter all items

DescriptionMaterial:Steel version:
Threaded sleeve steel.
Indexing pin steel.
Grip fibreglass reinforced thermoplastic PPA (high temperature resistant).Version:Steel version:
threaded sleeve, black oxidised.
Indexing pin hardened, ground and black oxidised.

Handle black grey RAL7021.Note:Indexing plungers are used where it is necessary to prevent changes of position due to lateral forces. A new locking position can be set only after the plunger has been manually disengaged. With this indexing plunger a cam lever is used to retract the pin. The indexing plunger remains unlocked as long as the handle is positioned over the dead-centre of the cam.
The ergonomic cam lever enables light handling with low effort. Temperature range:Permanent operating temperature acc. to IEC 216 max. 160°C.
Short-term operating temperature max. 250°C.Advantages:Simple and quick operation.
Suitable for high temperature applications.
With integrated detent function.On request:Special versions.Accessory:Spacer rings 03089
Positioning bushes for indexing plunger 03099-50
Mounting brackets 03099Drawing reference:

Form A: without locknut
Form B: with locknut

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 03090 inch Indexing plungers steel, with cam lever

205 kB

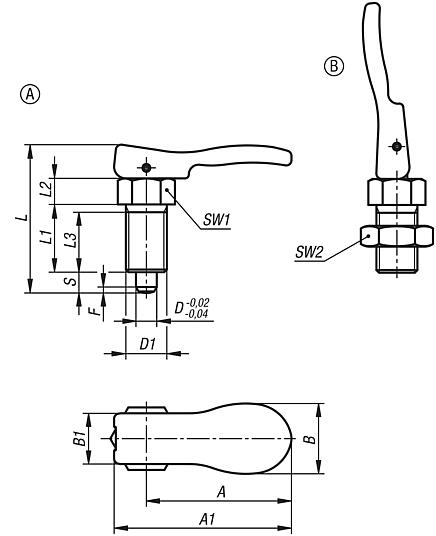

Drawings (total overview)

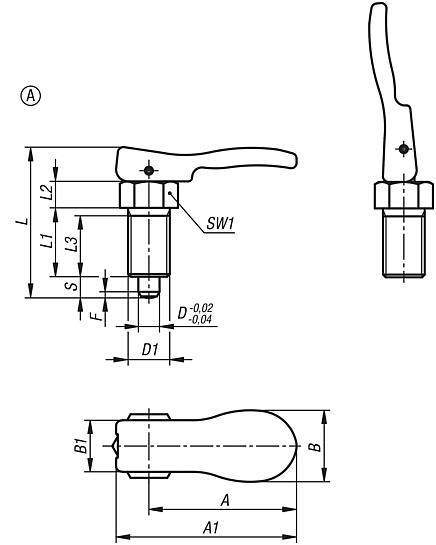

Indexing plunger with cam lever, steel, Form A, inch

More information

Drawings

Indexing plunger with cam lever, steel, Form A, inch

Item selection/filter

	steel	black	A	31,7 31,6 55,5 53,4	41,7 67,8	17,9 26,9	12,9 19,4	5 6 8 10	3/8-24 1/2-13 5/8-11 3/4-10	5 6 8 10	39 44 56,9 62,9	17 20 26 28	7 8 10 12	15 17 23 25	13 14 19 22	1,3 1,8 2,3 2,8	5 6 15	12 14 35 34				Reset
Order No.	Main material	Component colour	Form	A	A1	B	B1	D	D1	Travel S	L	L1	L2	L3	SW1	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	CAD	Acc.	Price	Order
03090-8105AL	steel	black	A	31,7	41,7	17,9	12,9	5	3/8-24	5	39	17	7	15	13	1,3	5	12			on request
03090-8206A5	steel	black	A	31,6	41,7	17,9	12,9	6	1/2-13	6	44	20	8	17	14	1,8	6	14			on request
03090-8308A6	steel	black	A	55,5	67,8	26,9	19,4	8	5/8-11	8	56,9	26	10	23	19	2,3	15	35			on request
03090-8410A7	steel	black	A	53,4	67,8	26,9	19,4	10	3/4-10	10	62,9	28	12	25	22	2,8	15	34			on request

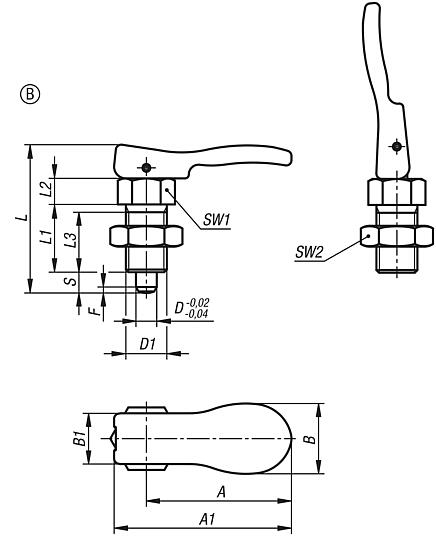

Indexing plunger with cam lever, steel, Form B, inch

More information

Drawings

Indexing plunger with cam lever, steel, Form B, inch

Item selection/filter

	steel	black	B	31,7 31,6 55,5 53,4	41,7 67,8	17,9 26,9	12,9 19,4	5 6 8 10	3/8-24 1/2-13 5/8-11 3/4-10	5 6 8 10	39 44 56,9 62,9	17 20 26 28	7 8 10 12	15 17 23 25	13 14 19 22	17 19 24 30	1,3 1,8 2,3 2,8	5 6 15	12 14 35 34				Reset
Order No.	Main material	Component colour	Form	A	A1	B	B1	D	D1	Travel S	L	L1	L2	L3	SW1	SW2	Fx30°	Spring force initial pressure F1 approx. N	Spring force final pressure F2 approx. N	CAD	Acc.	Price	Order
03090-9105AL	steel	black	B	31,7	41,7	17,9	12,9	5	3/8-24	5	39	17	7	15	13	17	1,3	5	12			on request
03090-9206A5	steel	black	B	31,6	41,7	17,9	12,9	6	1/2-13	6	44	20	8	17	14	19	1,8	6	14			on request
03090-9308A6	steel	black	B	55,5	67,8	26,9	19,4	8	5/8-11	8	56,9	26	10	23	19	24	2,3	15	35			on request
03090-9410A7	steel	black	B	53,4	67,8	26,9	19,4	10	3/4-10	10	62,9	28	12	25	22	30	2,8	15	34			on request
