        Cam levers, plastic with internal or external thread, plastic thrust washer and steel or stainless steel stud, inch

Item description/product images

Show/filter all items

DescriptionProduct description:These cam levers have a technically optimised plastic thrust washer.
The thrust washer is made of a special high-performance plastic that guarantees very good wear and creep resistance. Material:

Handle PA 6.6 fibreglass reinforced plastic
Thrust washer high performance carbon-fibre reinforced thermoplastic.
Hinge pin stainless steel 1.4305.
Stud steel, grade 5.8 or stainless steel 1.4305.

Version:Grip black or traffic red RAL3020.
Thrust washer black.
Hinge pin bright.
Stud blue-passivated or bright stainless steel.Note:Plastics are subject to creeping under load (retardation).Accessory:For slightly curved contact faces, a stainless steel washer 04234 can also be ordered.
This washer can be mounted between the thrust washer and the contact face.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04232-14 inch Cam levers, plastic with internal or external thread, plastic thrust washer and steel or stainless steel stud, inch

215 kB

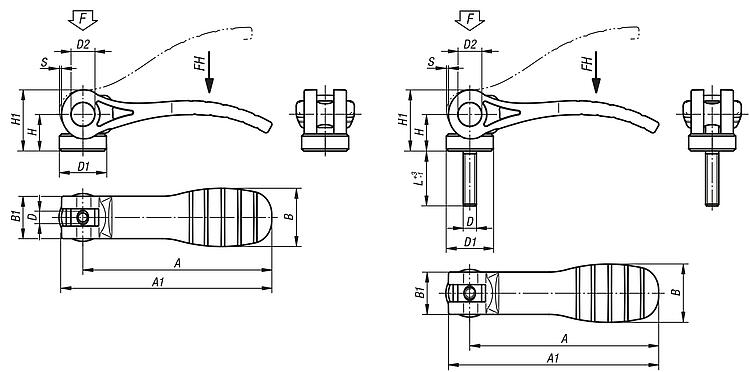

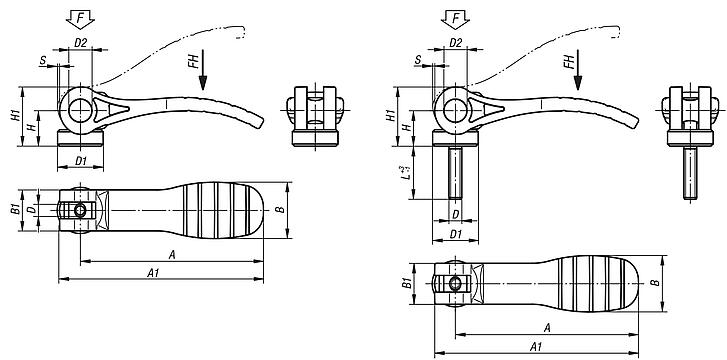

Drawings (total overview)

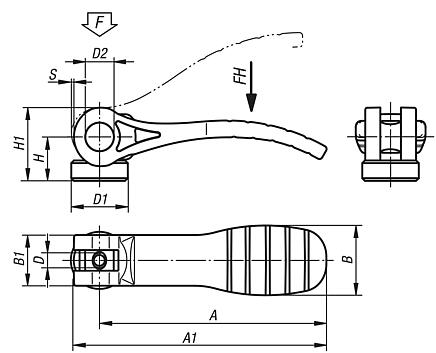

Cam levers, plastic with internal thread, plastic thrust washer, inch

More information

Drawings

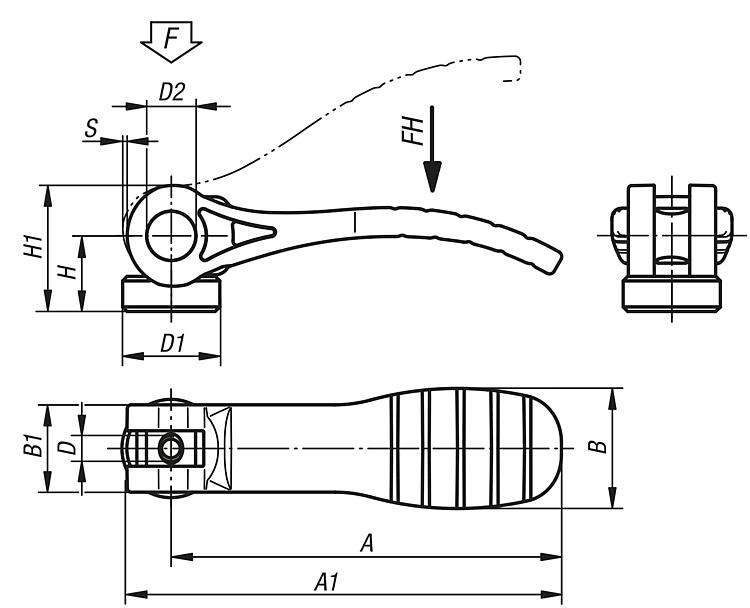

Cam levers, plastic with internal thread, plastic thrust washer, inch

Item selection/filter

Order No.	norelem old article number	Component material	Main colour	D	D1	D2	B	B1	H	H1	A	A1	Travel S	Clamping force F (kN)	Hand force FH N	Price
04232-14-15211A1	04232-15211A1	steel	black	10-32	16	9	22	16	14	23,2	71,5	79,6	1,15	2,5	125	on request
04232-14-15211A2	04232-15211A2	steel	black	1/4-20	16	9	22	16	14	23,2	71,5	79,6	1,15	2,5	125	on request
04232-14-25211A3	04232-25211A3	steel	black	5/16-18	25	11	33	24,2	16,3	27,9	100	110	1,5	5	170	on request
04232-14-15311A1	04232-15311A1	stainless steel	black	10-32	16	9	22	16	14	23,2	71,5	79,6	1,15	2,5	125	on request
04232-14-15311A2	04232-15311A2	stainless steel	black	1/4-20	16	9	22	16	14	23,2	71,5	79,6	1,15	2,5	125	on request
04232-14-25311A3	04232-25311A3	stainless steel	black	5/16-18	25	11	33	24,2	16,3	27,9	100	110	1,5	5	170	on request
04232-14-152184A1	04232-152184A1	steel	traffic red RAL 3020	10-32	16	9	22	16	14	23,2	71,5	79,6	1,15	2,5	125	on request
04232-14-152184A2	04232-152184A2	steel	traffic red RAL 3020	1/4-20	16	9	22	16	14	23,2	71,5	79,6	1,15	2,5	125	on request
04232-14-252184A3	04232-252184A3	steel	traffic red RAL 3020	5/16-18	25	11	33	24,2	16,3	27,9	100	110	1,5	5	170	on request
04232-14-153184A1	04232-153184A1	stainless steel	traffic red RAL 3020	10-32	16	9	22	16	14	23,2	71,5	79,6	1,15	2,5	125	on request
04232-14-153184A2	04232-153184A2	stainless steel	traffic red RAL 3020	1/4-20	16	9	22	16	14	23,2	71,5	79,6	1,15	2,5	125	on request
04232-14-253184A3	04232-253184A3	stainless steel	traffic red RAL 3020	5/16-18	25	11	33	24,2	16,3	27,9	100	110	1,5	5	170	on request

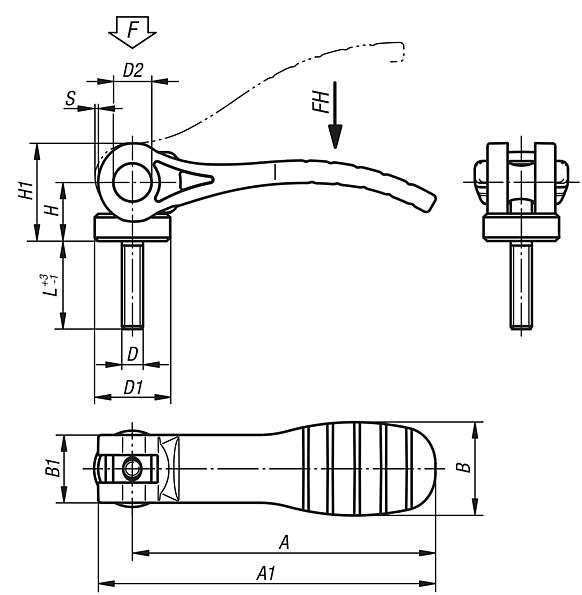

Cam levers, plastic with external thread, plastic thrust washer and steel or stainless steel stud, inch

More information

Drawings

Cam levers, plastic with external thread, plastic thrust washer and steel or stainless steel stud, inch

Item selection/filter

Order No.	norelem old article number	Component material	Main colour	D	D1	D2	B	B1	H	H1	A	A1	L	Travel S	Clamping force F (kN)	Hand force FH N	Price
04232-14-15211A1X20	04232-15211A1X20	steel	black	10-32	16	9	22	16	14	23,2	71,5	79,6	20	1,15	2,5	125	on request
04232-14-15211A1X30	04232-15211A1X30	steel	black	10-32	16	9	22	16	14	23,2	71,5	79,6	30	1,15	2,5	125	on request
04232-14-15211A1X40	04232-15211A1X40	steel	black	10-32	16	9	22	16	14	23,2	71,5	79,6	40	1,15	2,5	125	on request
04232-14-15211A1X50	04232-15211A1X50	steel	black	10-32	16	9	22	16	14	23,2	71,5	79,6	50	1,15	2,5	125	on request
04232-14-15211A2X20	04232-15211A2X20	steel	black	1/4-20	16	9	22	16	14	23,2	71,5	79,6	20	1,15	2,5	125	on request
04232-14-15211A2X30	04232-15211A2X30	steel	black	1/4-20	16	9	22	16	14	23,2	71,5	79,6	30	1,15	2,5	125	on request
04232-14-15211A2X40	04232-15211A2X40	steel	black	1/4-20	16	9	22	16	14	23,2	71,5	79,6	40	1,15	2,5	125	on request
04232-14-15211A2X50	04232-15211A2X50	steel	black	1/4-20	16	9	22	16	14	23,2	71,5	79,6	50	1,15	2,5	125	on request
04232-14-25211A3X25	04232-25211A3X25	steel	black	5/16-18	25	11	33	24,2	16,3	27,9	100	110	25	1,5	5	170	on request
04232-14-25211A3X30	04232-25211A3X30	steel	black	5/16-18	25	11	33	24,2	16,3	27,9	100	110	30	1,5	5	170	on request
04232-14-25211A3X40	04232-25211A3X40	steel	black	5/16-18	25	11	33	24,2	16,3	27,9	100	110	40	1,5	5	170	on request
04232-14-25211A3X50	04232-25211A3X50	steel	black	5/16-18	25	11	33	24,2	16,3	27,9	100	110	50	1,5	5	170	on request
04232-14-25211A4X25	04232-25211A4X25	steel	black	3/8-16	25	11	33	24,2	16,3	27,9	100	110	25	1,5	5	170	on request
04232-14-25211A4X30	04232-25211A4X30	steel	black	3/8-16	25	11	33	24,2	16,3	27,9	100	110	30	1,5	5	170	on request
04232-14-25211A4X40	04232-25211A4X40	steel	black	3/8-16	25	11	33	24,2	16,3	27,9	100	110	40	1,5	5	170	on request
04232-14-25211A4X50	04232-25211A4X50	steel	black	3/8-16	25	11	33	24,2	16,3	27,9	100	110	50	1,5	5	170	on request
04232-14-15311A1X20	04232-15311A1X20	stainless steel	black	10-32	16	9	22	16	14	23,2	71,5	79,6	20	1,15	2,5	125	on request
04232-14-15311A1X30	04232-15311A1X30	stainless steel	black	10-32	16	9	22	16	14	23,2	71,5	79,6	30	1,15	2,5	125	on request
04232-14-15311A1X40	04232-15311A1X40	stainless steel	black	10-32	16	9	22	16	14	23,2	71,5	79,6	40	1,15	2,5	125	on request
04232-14-15311A1X50	04232-15311A1X50	stainless steel	black	10-32	16	9	22	16	14	23,2	71,5	79,6	50	1,15	2,5	125	on request
04232-14-15311A2X20	04232-15311A2X20	stainless steel	black	1/4-20	16	9	22	16	14	23,2	71,5	79,6	20	1,15	2,5	125	on request
04232-14-15311A2X30	04232-15311A2X30	stainless steel	black	1/4-20	16	9	22	16	14	23,2	71,5	79,6	30	1,15	2,5	125	on request
04232-14-15311A2X40	04232-15311A2X40	stainless steel	black	1/4-20	16	9	22	16	14	23,2	71,5	79,6	40	1,15	2,5	125	on request
04232-14-15311A2X50	04232-15311A2X50	stainless steel	black	1/4-20	16	9	22	16	14	23,2	71,5	79,6	50	1,15	2,5	125	on request
04232-14-25311A3X25	04232-25311A3X25	stainless steel	black	5/16-18	25	11	33	24,2	16,3	27,9	100	110	25	1,5	5	170	on request
04232-14-25311A3X30	04232-25311A3X30	stainless steel	black	5/16-18	25	11	33	24,2	16,3	27,9	100	110	30	1,5	5	170	on request
04232-14-25311A3X40	04232-25311A3X40	stainless steel	black	5/16-18	25	11	33	24,2	16,3	27,9	100	110	40	1,5	5	170	on request
04232-14-25311A3X50	04232-25311A3X50	stainless steel	black	5/16-18	25	11	33	24,2	16,3	27,9	100	110	50	1,5	5	170	on request
04232-14-25311A4X25	04232-25311A4X25	stainless steel	black	3/8-16	25	11	33	24,2	16,3	27,9	100	110	25	1,5	5	170	on request
04232-14-25311A4X30	04232-25311A4X30	stainless steel	black	3/8-16	25	11	33	24,2	16,3	27,9	100	110	30	1,5	5	170	on request
04232-14-25311A4X40	04232-25311A4X40	stainless steel	black	3/8-16	25	11	33	24,2	16,3	27,9	100	110	40	1,5	5	170	on request
04232-14-25311A4X50	04232-25311A4X50	stainless steel	black	3/8-16	25	11	33	24,2	16,3	27,9	100	110	50	1,5	5	170	on request
04232-14-152184A1X20	04232-152184A1X20	steel	traffic red RAL 3020	10-32	16	9	22	16	14	23,2	71,5	79,6	20	1,15	2,5	125	on request
04232-14-152184A1X30	04232-152184A1X30	steel	traffic red RAL 3020	10-32	16	9	22	16	14	23,2	71,5	79,6	30	1,15	2,5	125	on request
04232-14-152184A1X40	04232-152184A1X40	steel	traffic red RAL 3020	10-32	16	9	22	16	14	23,2	71,5	79,6	40	1,15	2,5	125	on request
04232-14-152184A1X50	04232-152184A1X50	steel	traffic red RAL 3020	10-32	16	9	22	16	14	23,2	71,5	79,6	50	1,15	2,5	125	on request
04232-14-152184A2X20	04232-152184A2X20	steel	traffic red RAL 3020	1/4-20	16	9	22	16	14	23,2	71,5	79,6	20	1,15	2,5	125	on request
04232-14-152184A2X30	04232-152184A2X30	steel	traffic red RAL 3020	1/4-20	16	9	22	16	14	23,2	71,5	79,6	30	1,15	2,5	125	on request
04232-14-152184A2X40	04232-152184A2X40	steel	traffic red RAL 3020	1/4-20	16	9	22	16	14	23,2	71,5	79,6	40	1,15	2,5	125	on request
04232-14-152184A2X50	04232-152184A2X50	steel	traffic red RAL 3020	1/4-20	16	9	22	16	14	23,2	71,5	79,6	50	1,15	2,5	125	on request
04232-14-252184A3X25	04232-252184A3X25	steel	traffic red RAL 3020	5/16-18	25	11	33	24,2	16,3	27,9	100	110	25	1,5	5	170	on request
04232-14-252184A3X30	04232-252184A3X30	steel	traffic red RAL 3020	5/16-18	25	11	33	24,2	16,3	27,9	100	110	30	1,5	5	170	on request
04232-14-252184A3X40	04232-252184A3X40	steel	traffic red RAL 3020	5/16-18	25	11	33	24,2	16,3	27,9	100	110	40	1,5	5	170	on request
04232-14-252184A3X50	04232-252184A3X50	steel	traffic red RAL 3020	5/16-18	25	11	33	24,2	16,3	27,9	100	110	50	1,5	5	170	on request
04232-14-252184A4X25	04232-252184A4X25	steel	traffic red RAL 3020	3/8-16	25	11	33	24,2	16,3	27,9	100	110	25	1,5	5	170	on request
04232-14-252184A4X30	04232-252184A4X30	steel	traffic red RAL 3020	3/8-16	25	11	33	24,2	16,3	27,9	100	110	30	1,5	5	170	on request
04232-14-252184A4X40	04232-252184A4X40	steel	traffic red RAL 3020	3/8-16	25	11	33	24,2	16,3	27,9	100	110	40	1,5	5	170	on request
04232-14-252184A4X50	04232-252184A4X50	steel	traffic red RAL 3020	3/8-16	25	11	33	24,2	16,3	27,9	100	110	50	1,5	5	170	on request
04232-14-153184A1X20	04232-153184A1X20	stainless steel	traffic red RAL 3020	10-32	16	9	22	16	14	23,2	71,5	79,6	20	1,15	2,5	125	on request
04232-14-153184A1X30	04232-153184A1X30	stainless steel	traffic red RAL 3020	10-32	16	9	22	16	14	23,2	71,5	79,6	30	1,15	2,5	125	on request
04232-14-153184A1X40	04232-153184A1X40	stainless steel	traffic red RAL 3020	10-32	16	9	22	16	14	23,2	71,5	79,6	40	1,15	2,5	125	on request
04232-14-153184A1X50	04232-153184A1X50	stainless steel	traffic red RAL 3020	10-32	16	9	22	16	14	23,2	71,5	79,6	50	1,15	2,5	125	on request
04232-14-153184A2X20	04232-153184A2X20	stainless steel	traffic red RAL 3020	1/4-20	16	9	22	16	14	23,2	71,5	79,6	20	1,15	2,5	125	on request
04232-14-153184A2X30	04232-153184A2X30	stainless steel	traffic red RAL 3020	1/4-20	16	9	22	16	14	23,2	71,5	79,6	30	1,15	2,5	125	on request
04232-14-153184A2X40	04232-153184A2X40	stainless steel	traffic red RAL 3020	1/4-20	16	9	22	16	14	23,2	71,5	79,6	40	1,15	2,5	125	on request
04232-14-153184A2X50	04232-153184A2X50	stainless steel	traffic red RAL 3020	1/4-20	16	9	22	16	14	23,2	71,5	79,6	50	1,15	2,5	125	on request
04232-14-253184A3X25	04232-253184A3X25	stainless steel	traffic red RAL 3020	5/16-18	25	11	33	24,2	16,3	27,9	100	110	25	1,5	5	170	on request
04232-14-253184A3X30	04232-253184A3X30	stainless steel	traffic red RAL 3020	5/16-18	25	11	33	24,2	16,3	27,9	100	110	30	1,5	5	170	on request
04232-14-253184A3X40	04232-253184A3X40	stainless steel	traffic red RAL 3020	5/16-18	25	11	33	24,2	16,3	27,9	100	110	40	1,5	5	170	on request
04232-14-253184A3X50	04232-253184A3X50	stainless steel	traffic red RAL 3020	5/16-18	25	11	33	24,2	16,3	27,9	100	110	50	1,5	5	170	on request
04232-14-253184A4X25	04232-253184A4X25	stainless steel	traffic red RAL 3020	3/8-16	25	11	33	24,2	16,3	27,9	100	110	25	1,5	5	170	on request
04232-14-253184A4X30	04232-253184A4X30	stainless steel	traffic red RAL 3020	3/8-16	25	11	33	24,2	16,3	27,9	100	110	30	1,5	5	170	on request
04232-14-253184A4X40	04232-253184A4X40	stainless steel	traffic red RAL 3020	3/8-16	25	11	33	24,2	16,3	27,9	100	110	40	1,5	5	170	on request
04232-14-253184A4X50	04232-253184A4X50	stainless steel	traffic red RAL 3020	3/8-16	25	11	33	24,2	16,3	27,9	100	110	50	1,5	5	170	on request
