        Clamping levers, die-cast zinc with external thread, threaded insert stainless steel, inch

Item description/product images

DescriptionMaterial:

Handle die-cast zinc DIN EN 12844.
Steel parts stainless steel 1.4305.

Version:Handle powder-coated or high-gloss chromed.
Steel parts bright.Note:Where L ≥ 60 mm the thread length is always 60 mm.
On request:Other threads, screw lengths, colours and special versions.
Dimension “H1” available in other lengths at extra charge.Drawing reference:

1) flat point DIN EN ISO 4753

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06461 inch Clamping levers external thread, steel parts stainless steel, inch

486 kB

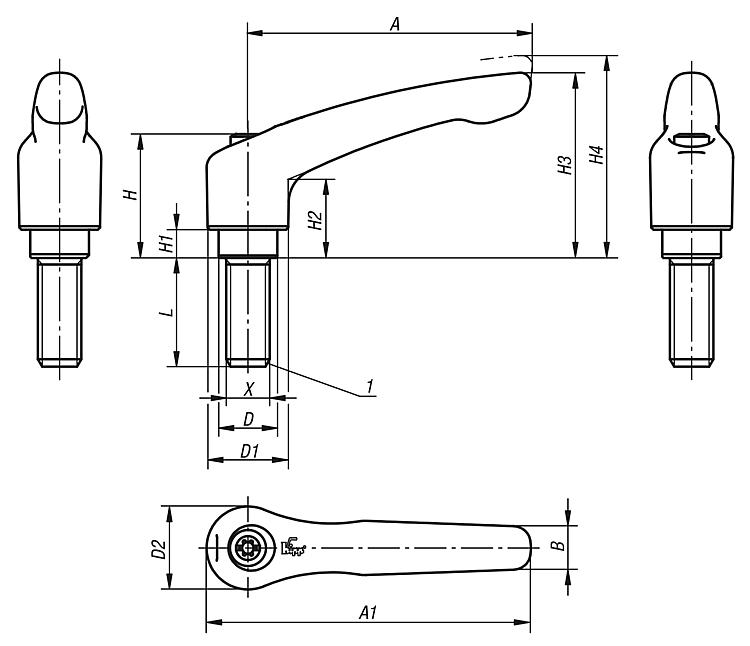

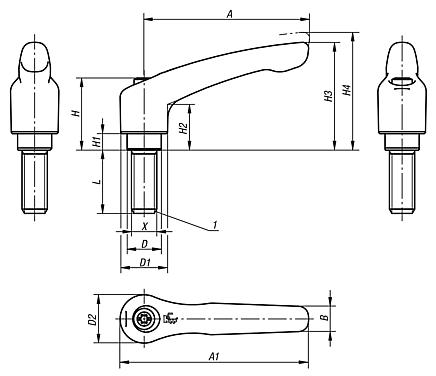

Drawings (total overview)

Clamping levers with external thread, steel parts stainless steel, satin finish, inch

More information

Drawings

Clamping levers with external thread, steel parts stainless steel, satin finish, inch

Item selection/filter

	jet black RAL 9005	satin finish	9 0 1 2 3 4 5	6-32 8-32 10-32 10-24 1/4-20 5/16-18 3/8-16 1/2-13 5/8-11	8 10 13,5 16 19 23	11 13 18,5 21 27 31	11,5 14 19 22 27,5 32	21,4 24,5 28,5 37 43 49	4 6,5 10 12	11,9 14,5 17,5 24 27 31,5	24 30 31 42,5 54,5 63 73	27 33 34 45,5 58,5 67,5 77,5	22 30 40 65 80 95 110	27,7 37 47 74,5 91 109 126	6,4 7 9,5 11 13 15	12 16 20 22 24 26	15 20 25 30 35 40 10 50 60				Reset
Order No.	Main colour	Surface finish body	Size	X	D	D1	D2	H	H1	H2	H3	H4	A	A1	B	No. of teeth	L	CAD	Acc.	Price	Order
06461-9AD1X15	jet black RAL 9005	satin finish	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9AD1X20	jet black RAL 9005	satin finish	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9AD1X25	jet black RAL 9005	satin finish	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9AE1X15	jet black RAL 9005	satin finish	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9AE1X20	jet black RAL 9005	satin finish	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9AE1X25	jet black RAL 9005	satin finish	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9A11X15	jet black RAL 9005	satin finish	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9A11X20	jet black RAL 9005	satin finish	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9A11X25	jet black RAL 9005	satin finish	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9A11X30	jet black RAL 9005	satin finish	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06461-9A11X35	jet black RAL 9005	satin finish	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06461-9A11X40	jet black RAL 9005	satin finish	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	40			on request
06461-0AE1X10	jet black RAL 9005	satin finish	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0AE1X15	jet black RAL 9005	satin finish	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0AE1X20	jet black RAL 9005	satin finish	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0AE1X25	jet black RAL 9005	satin finish	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A01X10	jet black RAL 9005	satin finish	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A01X15	jet black RAL 9005	satin finish	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A01X20	jet black RAL 9005	satin finish	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A01X25	jet black RAL 9005	satin finish	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A11X10	jet black RAL 9005	satin finish	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A11X15	jet black RAL 9005	satin finish	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A11X20	jet black RAL 9005	satin finish	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A11X25	jet black RAL 9005	satin finish	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A21X10	jet black RAL 9005	satin finish	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A21X15	jet black RAL 9005	satin finish	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A21X20	jet black RAL 9005	satin finish	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A21X25	jet black RAL 9005	satin finish	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A21X30	jet black RAL 9005	satin finish	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06461-0A21X40	jet black RAL 9005	satin finish	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06461-0A21X50	jet black RAL 9005	satin finish	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06461-1A01X15	jet black RAL 9005	satin finish	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A01X20	jet black RAL 9005	satin finish	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A01X25	jet black RAL 9005	satin finish	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A11X15	jet black RAL 9005	satin finish	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A11X20	jet black RAL 9005	satin finish	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A11X25	jet black RAL 9005	satin finish	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A21X10	jet black RAL 9005	satin finish	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06461-1A21X15	jet black RAL 9005	satin finish	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A21X20	jet black RAL 9005	satin finish	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A21X25	jet black RAL 9005	satin finish	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A21X30	jet black RAL 9005	satin finish	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06461-1A21X40	jet black RAL 9005	satin finish	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06461-1A21X50	jet black RAL 9005	satin finish	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06461-2A21X15	jet black RAL 9005	satin finish	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06461-2A21X20	jet black RAL 9005	satin finish	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A21X25	jet black RAL 9005	satin finish	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A21X30	jet black RAL 9005	satin finish	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A21X40	jet black RAL 9005	satin finish	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A21X50	jet black RAL 9005	satin finish	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A21X60	jet black RAL 9005	satin finish	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A31X15	jet black RAL 9005	satin finish	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06461-2A31X20	jet black RAL 9005	satin finish	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A31X25	jet black RAL 9005	satin finish	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A31X30	jet black RAL 9005	satin finish	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A31X40	jet black RAL 9005	satin finish	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A31X50	jet black RAL 9005	satin finish	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A31X60	jet black RAL 9005	satin finish	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A41X20	jet black RAL 9005	satin finish	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A41X25	jet black RAL 9005	satin finish	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A41X30	jet black RAL 9005	satin finish	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A41X40	jet black RAL 9005	satin finish	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A41X50	jet black RAL 9005	satin finish	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A41X60	jet black RAL 9005	satin finish	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-3A31X20	jet black RAL 9005	satin finish	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06461-3A31X25	jet black RAL 9005	satin finish	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06461-3A31X30	jet black RAL 9005	satin finish	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06461-3A31X40	jet black RAL 9005	satin finish	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06461-3A31X50	jet black RAL 9005	satin finish	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06461-3A31X60	jet black RAL 9005	satin finish	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06461-3A41X20	jet black RAL 9005	satin finish	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06461-3A41X25	jet black RAL 9005	satin finish	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06461-3A41X30	jet black RAL 9005	satin finish	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06461-3A41X40	jet black RAL 9005	satin finish	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06461-3A41X50	jet black RAL 9005	satin finish	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06461-3A41X60	jet black RAL 9005	satin finish	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06461-4A51X25	jet black RAL 9005	satin finish	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06461-4A51X30	jet black RAL 9005	satin finish	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06461-4A51X40	jet black RAL 9005	satin finish	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06461-4A51X50	jet black RAL 9005	satin finish	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06461-4A51X60	jet black RAL 9005	satin finish	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06461-5A61X30	jet black RAL 9005	satin finish	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06461-5A61X40	jet black RAL 9005	satin finish	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06461-5A61X50	jet black RAL 9005	satin finish	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06461-5A61X60	jet black RAL 9005	satin finish	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request

Clamping levers with external thread, steel parts stainless steel, matt textured, inch

More information

Drawings

Clamping levers with external thread, steel parts stainless steel, matt textured, inch

Item selection/filter

	jet black RAL 9005 orange RAL 2004 colza yellow RAL 1021 traffic red RAL 3020 signal green RAL 6032 traffic blue RAL 5017 light grey RAL 7035 window grey RAL 7040	textured matt	9 0 1 2 3 4 5	6-32 8-32 10-32 10-24 1/4-20 5/16-18 3/8-16 1/2-13 5/8-11	8 10 13,5 16 19 23	11 13 18,5 21 27 31	11,5 14 19 22 27,5 32	21,4 24,5 28,5 37 43 49	4 6,5 10 12	11,9 14,5 17,5 24 27 31,5	24 30 31 42,5 54,5 63 73	27 33 34 45,5 58,5 67,5 77,5	22 30 40 65 80 95 110	27,7 37 47 74,5 91 109 126	6,4 7 9,5 11 13 15	12 16 20 22 24 26	15 20 25 30 35 40 10 50 60				Reset
Order No.	Main colour	Surface finish body	Size	X	D	D1	D2	H	H1	H2	H3	H4	A	A1	B	No. of teeth	L	CAD	Acc.	Price	Order
06461-9AD181X15	jet black RAL 9005	textured matt	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9AD181X20	jet black RAL 9005	textured matt	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9AD181X25	jet black RAL 9005	textured matt	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9AD182X15	orange RAL 2004	textured matt	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9AD182X20	orange RAL 2004	textured matt	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9AD182X25	orange RAL 2004	textured matt	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9AD183X15	colza yellow RAL 1021	textured matt	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9AD183X20	colza yellow RAL 1021	textured matt	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9AD183X25	colza yellow RAL 1021	textured matt	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9AD184X15	traffic red RAL 3020	textured matt	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9AD184X20	traffic red RAL 3020	textured matt	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9AD184X25	traffic red RAL 3020	textured matt	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9AD185X15	signal green RAL 6032	textured matt	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9AD185X20	signal green RAL 6032	textured matt	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9AD185X25	signal green RAL 6032	textured matt	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9AD186X15	traffic blue RAL 5017	textured matt	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9AD186X20	traffic blue RAL 5017	textured matt	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9AD186X25	traffic blue RAL 5017	textured matt	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9AD187X15	light grey RAL 7035	textured matt	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9AD187X20	light grey RAL 7035	textured matt	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9AD187X25	light grey RAL 7035	textured matt	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9AD188X15	window grey RAL 7040	textured matt	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9AD188X20	window grey RAL 7040	textured matt	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9AD188X25	window grey RAL 7040	textured matt	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9AE181X15	jet black RAL 9005	textured matt	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9AE181X20	jet black RAL 9005	textured matt	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9AE181X25	jet black RAL 9005	textured matt	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9AE182X15	orange RAL 2004	textured matt	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9AE182X20	orange RAL 2004	textured matt	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9AE182X25	orange RAL 2004	textured matt	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9AE183X15	colza yellow RAL 1021	textured matt	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9AE183X20	colza yellow RAL 1021	textured matt	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9AE183X25	colza yellow RAL 1021	textured matt	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9AE184X15	traffic red RAL 3020	textured matt	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9AE184X20	traffic red RAL 3020	textured matt	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9AE184X25	traffic red RAL 3020	textured matt	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9AE185X15	signal green RAL 6032	textured matt	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9AE185X20	signal green RAL 6032	textured matt	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9AE185X25	signal green RAL 6032	textured matt	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9AE186X15	traffic blue RAL 5017	textured matt	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9AE186X20	traffic blue RAL 5017	textured matt	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9AE186X25	traffic blue RAL 5017	textured matt	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9AE187X15	light grey RAL 7035	textured matt	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9AE187X20	light grey RAL 7035	textured matt	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9AE187X25	light grey RAL 7035	textured matt	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9AE188X15	window grey RAL 7040	textured matt	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9AE188X20	window grey RAL 7040	textured matt	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9AE188X25	window grey RAL 7040	textured matt	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9A1181X15	jet black RAL 9005	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9A1181X20	jet black RAL 9005	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9A1181X25	jet black RAL 9005	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9A1181X30	jet black RAL 9005	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06461-9A1181X35	jet black RAL 9005	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06461-9A1181X40	jet black RAL 9005	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	40			on request
06461-9A1182X15	orange RAL 2004	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9A1182X20	orange RAL 2004	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9A1182X25	orange RAL 2004	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9A1182X30	orange RAL 2004	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06461-9A1182X35	orange RAL 2004	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06461-9A1182X40	orange RAL 2004	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	40			on request
06461-9A1183X15	colza yellow RAL 1021	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9A1183X20	colza yellow RAL 1021	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9A1183X25	colza yellow RAL 1021	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9A1183X30	colza yellow RAL 1021	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06461-9A1183X35	colza yellow RAL 1021	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06461-9A1183X40	colza yellow RAL 1021	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	40			on request
06461-9A1184X15	traffic red RAL 3020	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9A1184X20	traffic red RAL 3020	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9A1184X25	traffic red RAL 3020	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9A1184X30	traffic red RAL 3020	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06461-9A1184X35	traffic red RAL 3020	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06461-9A1184X40	traffic red RAL 3020	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	40			on request
06461-9A1185X15	signal green RAL 6032	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9A1185X20	signal green RAL 6032	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9A1185X25	signal green RAL 6032	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9A1185X30	signal green RAL 6032	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06461-9A1185X35	signal green RAL 6032	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06461-9A1185X40	signal green RAL 6032	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	40			on request
06461-9A1186X15	traffic blue RAL 5017	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9A1186X20	traffic blue RAL 5017	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9A1186X25	traffic blue RAL 5017	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9A1186X30	traffic blue RAL 5017	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06461-9A1186X35	traffic blue RAL 5017	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06461-9A1186X40	traffic blue RAL 5017	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	40			on request
06461-9A1187X15	light grey RAL 7035	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9A1187X20	light grey RAL 7035	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9A1187X25	light grey RAL 7035	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9A1187X30	light grey RAL 7035	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06461-9A1187X35	light grey RAL 7035	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06461-9A1187X40	light grey RAL 7035	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	40			on request
06461-9A1188X15	window grey RAL 7040	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9A1188X20	window grey RAL 7040	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9A1188X25	window grey RAL 7040	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9A1188X30	window grey RAL 7040	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06461-9A1188X35	window grey RAL 7040	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06461-9A1188X40	window grey RAL 7040	textured matt	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	40			on request
06461-0AE181X10	jet black RAL 9005	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0AE181X15	jet black RAL 9005	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0AE181X20	jet black RAL 9005	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0AE181X25	jet black RAL 9005	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0AE182X10	orange RAL 2004	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0AE182X15	orange RAL 2004	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0AE182X20	orange RAL 2004	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0AE182X25	orange RAL 2004	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0AE183X10	colza yellow RAL 1021	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0AE183X15	colza yellow RAL 1021	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0AE183X20	colza yellow RAL 1021	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0AE183X25	colza yellow RAL 1021	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0AE184X10	traffic red RAL 3020	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0AE184X15	traffic red RAL 3020	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0AE184X20	traffic red RAL 3020	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0AE184X25	traffic red RAL 3020	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0AE185X10	signal green RAL 6032	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0AE185X15	signal green RAL 6032	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0AE185X20	signal green RAL 6032	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0AE185X25	signal green RAL 6032	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0AE186X10	traffic blue RAL 5017	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0AE186X15	traffic blue RAL 5017	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0AE186X20	traffic blue RAL 5017	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0AE186X25	traffic blue RAL 5017	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0AE187X10	light grey RAL 7035	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0AE187X15	light grey RAL 7035	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0AE187X20	light grey RAL 7035	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0AE187X25	light grey RAL 7035	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0AE188X10	window grey RAL 7040	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0AE188X15	window grey RAL 7040	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0AE188X20	window grey RAL 7040	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0AE188X25	window grey RAL 7040	textured matt	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A0181X10	jet black RAL 9005	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A0181X15	jet black RAL 9005	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A0181X20	jet black RAL 9005	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A0181X25	jet black RAL 9005	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A0182X10	orange RAL 2004	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A0182X15	orange RAL 2004	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A0182X20	orange RAL 2004	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A0182X25	orange RAL 2004	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A0183X10	colza yellow RAL 1021	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A0183X15	colza yellow RAL 1021	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A0183X20	colza yellow RAL 1021	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A0183X25	colza yellow RAL 1021	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A0184X10	traffic red RAL 3020	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A0184X15	traffic red RAL 3020	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A0184X20	traffic red RAL 3020	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A0184X25	traffic red RAL 3020	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A0185X10	signal green RAL 6032	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A0185X15	signal green RAL 6032	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A0185X20	signal green RAL 6032	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A0185X25	signal green RAL 6032	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A0186X10	traffic blue RAL 5017	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A0186X15	traffic blue RAL 5017	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A0186X20	traffic blue RAL 5017	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A0186X25	traffic blue RAL 5017	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A0187X10	light grey RAL 7035	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A0187X15	light grey RAL 7035	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A0187X20	light grey RAL 7035	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A0187X25	light grey RAL 7035	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A0188X10	window grey RAL 7040	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A0188X15	window grey RAL 7040	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A0188X20	window grey RAL 7040	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A0188X25	window grey RAL 7040	textured matt	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A1181X10	jet black RAL 9005	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A1181X15	jet black RAL 9005	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A1181X20	jet black RAL 9005	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A1181X25	jet black RAL 9005	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A1182X10	orange RAL 2004	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A1182X15	orange RAL 2004	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A1182X20	orange RAL 2004	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A1182X25	orange RAL 2004	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A1183X10	colza yellow RAL 1021	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A1183X15	colza yellow RAL 1021	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A1183X20	colza yellow RAL 1021	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A1183X25	colza yellow RAL 1021	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A1184X10	traffic red RAL 3020	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A1184X15	traffic red RAL 3020	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A1184X20	traffic red RAL 3020	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A1184X25	traffic red RAL 3020	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A1185X10	signal green RAL 6032	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A1185X15	signal green RAL 6032	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A1185X20	signal green RAL 6032	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A1185X25	signal green RAL 6032	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A1186X10	traffic blue RAL 5017	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A1186X15	traffic blue RAL 5017	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A1186X20	traffic blue RAL 5017	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A1186X25	traffic blue RAL 5017	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A1187X10	light grey RAL 7035	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A1187X15	light grey RAL 7035	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A1187X20	light grey RAL 7035	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A1187X25	light grey RAL 7035	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A1188X10	window grey RAL 7040	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A1188X15	window grey RAL 7040	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A1188X20	window grey RAL 7040	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A1188X25	window grey RAL 7040	textured matt	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A2181X10	jet black RAL 9005	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A2181X15	jet black RAL 9005	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A2181X20	jet black RAL 9005	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A2181X25	jet black RAL 9005	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A2181X30	jet black RAL 9005	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06461-0A2181X40	jet black RAL 9005	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06461-0A2181X50	jet black RAL 9005	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06461-0A2182X10	orange RAL 2004	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A2182X15	orange RAL 2004	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A2182X20	orange RAL 2004	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A2182X25	orange RAL 2004	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A2182X30	orange RAL 2004	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06461-0A2182X40	orange RAL 2004	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06461-0A2182X50	orange RAL 2004	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06461-0A2183X10	colza yellow RAL 1021	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A2183X15	colza yellow RAL 1021	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A2183X20	colza yellow RAL 1021	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A2183X25	colza yellow RAL 1021	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A2183X30	colza yellow RAL 1021	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06461-0A2183X40	colza yellow RAL 1021	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06461-0A2183X50	colza yellow RAL 1021	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06461-0A2184X10	traffic red RAL 3020	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A2184X15	traffic red RAL 3020	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A2184X20	traffic red RAL 3020	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A2184X25	traffic red RAL 3020	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A2184X30	traffic red RAL 3020	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06461-0A2184X40	traffic red RAL 3020	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06461-0A2184X50	traffic red RAL 3020	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06461-0A2185X10	signal green RAL 6032	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A2185X15	signal green RAL 6032	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A2185X20	signal green RAL 6032	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A2185X25	signal green RAL 6032	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A2185X30	signal green RAL 6032	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06461-0A2185X40	signal green RAL 6032	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06461-0A2185X50	signal green RAL 6032	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06461-0A2186X10	traffic blue RAL 5017	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A2186X15	traffic blue RAL 5017	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A2186X20	traffic blue RAL 5017	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A2186X25	traffic blue RAL 5017	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A2186X30	traffic blue RAL 5017	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06461-0A2186X40	traffic blue RAL 5017	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06461-0A2186X50	traffic blue RAL 5017	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06461-0A2187X10	light grey RAL 7035	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A2187X15	light grey RAL 7035	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A2187X20	light grey RAL 7035	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A2187X25	light grey RAL 7035	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A2187X30	light grey RAL 7035	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06461-0A2187X40	light grey RAL 7035	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06461-0A2187X50	light grey RAL 7035	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06461-0A2188X10	window grey RAL 7040	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A2188X15	window grey RAL 7040	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A2188X20	window grey RAL 7040	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A2188X25	window grey RAL 7040	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A2188X30	window grey RAL 7040	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06461-0A2188X40	window grey RAL 7040	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06461-0A2188X50	window grey RAL 7040	textured matt	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06461-1A0181X15	jet black RAL 9005	textured matt	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A0181X20	jet black RAL 9005	textured matt	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A0181X25	jet black RAL 9005	textured matt	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A0182X15	orange RAL 2004	textured matt	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A0182X20	orange RAL 2004	textured matt	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A0182X25	orange RAL 2004	textured matt	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A0183X15	colza yellow RAL 1021	textured matt	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A0183X20	colza yellow RAL 1021	textured matt	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A0183X25	colza yellow RAL 1021	textured matt	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A0184X15	traffic red RAL 3020	textured matt	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A0184X20	traffic red RAL 3020	textured matt	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A0184X25	traffic red RAL 3020	textured matt	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A0185X15	signal green RAL 6032	textured matt	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A0185X20	signal green RAL 6032	textured matt	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A0185X25	signal green RAL 6032	textured matt	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A0186X15	traffic blue RAL 5017	textured matt	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A0186X20	traffic blue RAL 5017	textured matt	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A0186X25	traffic blue RAL 5017	textured matt	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A0187X15	light grey RAL 7035	textured matt	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A0187X20	light grey RAL 7035	textured matt	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A0187X25	light grey RAL 7035	textured matt	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A0188X15	window grey RAL 7040	textured matt	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A0188X20	window grey RAL 7040	textured matt	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A0188X25	window grey RAL 7040	textured matt	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A1181X15	jet black RAL 9005	textured matt	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A1181X20	jet black RAL 9005	textured matt	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A1181X25	jet black RAL 9005	textured matt	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A1182X15	orange RAL 2004	textured matt	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A1182X20	orange RAL 2004	textured matt	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A1182X25	orange RAL 2004	textured matt	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A1183X15	colza yellow RAL 1021	textured matt	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A1183X20	colza yellow RAL 1021	textured matt	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A1183X25	colza yellow RAL 1021	textured matt	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A1184X15	traffic red RAL 3020	textured matt	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A1184X20	traffic red RAL 3020	textured matt	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A1184X25	traffic red RAL 3020	textured matt	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A1185X15	signal green RAL 6032	textured matt	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A1185X20	signal green RAL 6032	textured matt	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A1185X25	signal green RAL 6032	textured matt	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A1186X15	traffic blue RAL 5017	textured matt	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A1186X20	traffic blue RAL 5017	textured matt	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A1186X25	traffic blue RAL 5017	textured matt	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A1187X15	light grey RAL 7035	textured matt	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A1187X20	light grey RAL 7035	textured matt	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A1187X25	light grey RAL 7035	textured matt	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A1188X15	window grey RAL 7040	textured matt	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A1188X20	window grey RAL 7040	textured matt	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A1188X25	window grey RAL 7040	textured matt	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A2181X10	jet black RAL 9005	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06461-1A2181X15	jet black RAL 9005	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A2181X20	jet black RAL 9005	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A2181X25	jet black RAL 9005	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A2181X30	jet black RAL 9005	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06461-1A2181X40	jet black RAL 9005	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06461-1A2181X50	jet black RAL 9005	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06461-1A2182X10	orange RAL 2004	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06461-1A2182X15	orange RAL 2004	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A2182X20	orange RAL 2004	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A2182X25	orange RAL 2004	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A2182X30	orange RAL 2004	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06461-1A2182X40	orange RAL 2004	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06461-1A2182X50	orange RAL 2004	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06461-1A2183X10	colza yellow RAL 1021	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06461-1A2183X15	colza yellow RAL 1021	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A2183X20	colza yellow RAL 1021	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A2183X25	colza yellow RAL 1021	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A2183X30	colza yellow RAL 1021	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06461-1A2183X40	colza yellow RAL 1021	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06461-1A2183X50	colza yellow RAL 1021	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06461-1A2184X10	traffic red RAL 3020	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06461-1A2184X15	traffic red RAL 3020	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A2184X20	traffic red RAL 3020	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A2184X25	traffic red RAL 3020	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A2184X30	traffic red RAL 3020	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06461-1A2184X40	traffic red RAL 3020	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06461-1A2184X50	traffic red RAL 3020	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06461-1A2185X10	signal green RAL 6032	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06461-1A2185X15	signal green RAL 6032	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A2185X20	signal green RAL 6032	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A2185X25	signal green RAL 6032	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A2185X30	signal green RAL 6032	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06461-1A2185X40	signal green RAL 6032	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06461-1A2185X50	signal green RAL 6032	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06461-1A2186X10	traffic blue RAL 5017	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06461-1A2186X15	traffic blue RAL 5017	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A2186X20	traffic blue RAL 5017	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A2186X25	traffic blue RAL 5017	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A2186X30	traffic blue RAL 5017	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06461-1A2186X40	traffic blue RAL 5017	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06461-1A2186X50	traffic blue RAL 5017	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06461-1A2187X10	light grey RAL 7035	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06461-1A2187X15	light grey RAL 7035	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A2187X20	light grey RAL 7035	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A2187X25	light grey RAL 7035	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A2187X30	light grey RAL 7035	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06461-1A2187X40	light grey RAL 7035	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06461-1A2187X50	light grey RAL 7035	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06461-1A2188X10	window grey RAL 7040	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06461-1A2188X15	window grey RAL 7040	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A2188X20	window grey RAL 7040	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A2188X25	window grey RAL 7040	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A2188X30	window grey RAL 7040	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06461-1A2188X40	window grey RAL 7040	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06461-1A2188X50	window grey RAL 7040	textured matt	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06461-2A2181X15	jet black RAL 9005	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06461-2A2181X20	jet black RAL 9005	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A2181X25	jet black RAL 9005	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A2181X30	jet black RAL 9005	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A2181X40	jet black RAL 9005	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A2181X50	jet black RAL 9005	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A2181X60	jet black RAL 9005	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A2182X15	orange RAL 2004	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06461-2A2182X20	orange RAL 2004	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A2182X25	orange RAL 2004	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A2182X30	orange RAL 2004	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A2182X40	orange RAL 2004	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A2182X50	orange RAL 2004	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A2182X60	orange RAL 2004	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A2183X15	colza yellow RAL 1021	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06461-2A2183X20	colza yellow RAL 1021	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A2183X25	colza yellow RAL 1021	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A2183X30	colza yellow RAL 1021	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A2183X40	colza yellow RAL 1021	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A2183X50	colza yellow RAL 1021	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A2183X60	colza yellow RAL 1021	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A2184X15	traffic red RAL 3020	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06461-2A2184X20	traffic red RAL 3020	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A2184X25	traffic red RAL 3020	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A2184X30	traffic red RAL 3020	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A2184X40	traffic red RAL 3020	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A2184X50	traffic red RAL 3020	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A2184X60	traffic red RAL 3020	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A2185X15	signal green RAL 6032	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06461-2A2185X20	signal green RAL 6032	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A2185X25	signal green RAL 6032	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A2185X30	signal green RAL 6032	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A2185X40	signal green RAL 6032	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A2185X50	signal green RAL 6032	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A2185X60	signal green RAL 6032	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A2186X15	traffic blue RAL 5017	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06461-2A2186X20	traffic blue RAL 5017	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A2186X25	traffic blue RAL 5017	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A2186X30	traffic blue RAL 5017	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A2186X40	traffic blue RAL 5017	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A2186X50	traffic blue RAL 5017	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A2186X60	traffic blue RAL 5017	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A2187X15	light grey RAL 7035	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06461-2A2187X20	light grey RAL 7035	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A2187X25	light grey RAL 7035	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A2187X30	light grey RAL 7035	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A2187X40	light grey RAL 7035	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A2187X50	light grey RAL 7035	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A2187X60	light grey RAL 7035	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A2188X15	window grey RAL 7040	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06461-2A2188X20	window grey RAL 7040	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A2188X25	window grey RAL 7040	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A2188X30	window grey RAL 7040	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A2188X40	window grey RAL 7040	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A2188X50	window grey RAL 7040	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A2188X60	window grey RAL 7040	textured matt	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A3181X15	jet black RAL 9005	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06461-2A3181X20	jet black RAL 9005	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A3181X25	jet black RAL 9005	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A3181X30	jet black RAL 9005	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A3181X40	jet black RAL 9005	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A3181X50	jet black RAL 9005	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A3181X60	jet black RAL 9005	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A3182X15	orange RAL 2004	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06461-2A3182X20	orange RAL 2004	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A3182X25	orange RAL 2004	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A3182X30	orange RAL 2004	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A3182X40	orange RAL 2004	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A3182X50	orange RAL 2004	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A3182X60	orange RAL 2004	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A3183X15	colza yellow RAL 1021	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06461-2A3183X20	colza yellow RAL 1021	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A3183X25	colza yellow RAL 1021	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A3183X30	colza yellow RAL 1021	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A3183X40	colza yellow RAL 1021	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A3183X50	colza yellow RAL 1021	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A3183X60	colza yellow RAL 1021	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A3184X15	traffic red RAL 3020	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06461-2A3184X20	traffic red RAL 3020	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A3184X25	traffic red RAL 3020	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A3184X30	traffic red RAL 3020	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A3184X40	traffic red RAL 3020	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A3184X50	traffic red RAL 3020	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A3184X60	traffic red RAL 3020	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A3185X15	signal green RAL 6032	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06461-2A3185X20	signal green RAL 6032	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A3185X25	signal green RAL 6032	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A3185X30	signal green RAL 6032	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A3185X40	signal green RAL 6032	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A3185X50	signal green RAL 6032	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A3185X60	signal green RAL 6032	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A3186X15	traffic blue RAL 5017	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06461-2A3186X20	traffic blue RAL 5017	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A3186X25	traffic blue RAL 5017	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A3186X30	traffic blue RAL 5017	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A3186X40	traffic blue RAL 5017	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A3186X50	traffic blue RAL 5017	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A3186X60	traffic blue RAL 5017	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A3187X15	light grey RAL 7035	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06461-2A3187X20	light grey RAL 7035	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A3187X25	light grey RAL 7035	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A3187X30	light grey RAL 7035	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A3187X40	light grey RAL 7035	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A3187X50	light grey RAL 7035	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A3187X60	light grey RAL 7035	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A3188X15	window grey RAL 7040	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06461-2A3188X20	window grey RAL 7040	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A3188X25	window grey RAL 7040	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A3188X30	window grey RAL 7040	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A3188X40	window grey RAL 7040	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A3188X50	window grey RAL 7040	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A3188X60	window grey RAL 7040	textured matt	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A4181X20	jet black RAL 9005	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A4181X25	jet black RAL 9005	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A4181X30	jet black RAL 9005	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A4181X40	jet black RAL 9005	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A4181X50	jet black RAL 9005	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A4181X60	jet black RAL 9005	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A4182X20	orange RAL 2004	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A4182X25	orange RAL 2004	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A4182X30	orange RAL 2004	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A4182X40	orange RAL 2004	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A4182X50	orange RAL 2004	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A4182X60	orange RAL 2004	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A4183X20	colza yellow RAL 1021	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A4183X25	colza yellow RAL 1021	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A4183X30	colza yellow RAL 1021	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A4183X40	colza yellow RAL 1021	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A4183X50	colza yellow RAL 1021	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A4183X60	colza yellow RAL 1021	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A4184X20	traffic red RAL 3020	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A4184X25	traffic red RAL 3020	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A4184X30	traffic red RAL 3020	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A4184X40	traffic red RAL 3020	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A4184X50	traffic red RAL 3020	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A4184X60	traffic red RAL 3020	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A4185X20	signal green RAL 6032	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A4185X25	signal green RAL 6032	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A4185X30	signal green RAL 6032	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A4185X40	signal green RAL 6032	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A4185X50	signal green RAL 6032	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A4185X60	signal green RAL 6032	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A4186X20	traffic blue RAL 5017	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A4186X25	traffic blue RAL 5017	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A4186X30	traffic blue RAL 5017	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A4186X40	traffic blue RAL 5017	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A4186X50	traffic blue RAL 5017	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A4186X60	traffic blue RAL 5017	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A4187X20	light grey RAL 7035	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A4187X25	light grey RAL 7035	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A4187X30	light grey RAL 7035	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A4187X40	light grey RAL 7035	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A4187X50	light grey RAL 7035	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A4187X60	light grey RAL 7035	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A4188X20	window grey RAL 7040	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A4188X25	window grey RAL 7040	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A4188X30	window grey RAL 7040	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A4188X40	window grey RAL 7040	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A4188X50	window grey RAL 7040	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A4188X60	window grey RAL 7040	textured matt	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-3A3181X20	jet black RAL 9005	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06461-3A3181X25	jet black RAL 9005	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06461-3A3181X30	jet black RAL 9005	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06461-3A3181X40	jet black RAL 9005	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06461-3A3181X50	jet black RAL 9005	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06461-3A3181X60	jet black RAL 9005	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06461-3A3182X20	orange RAL 2004	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06461-3A3182X25	orange RAL 2004	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06461-3A3182X30	orange RAL 2004	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06461-3A3182X40	orange RAL 2004	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06461-3A3182X50	orange RAL 2004	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06461-3A3182X60	orange RAL 2004	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06461-3A3183X20	colza yellow RAL 1021	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06461-3A3183X25	colza yellow RAL 1021	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06461-3A3183X30	colza yellow RAL 1021	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06461-3A3183X40	colza yellow RAL 1021	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06461-3A3183X50	colza yellow RAL 1021	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06461-3A3183X60	colza yellow RAL 1021	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06461-3A3184X20	traffic red RAL 3020	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06461-3A3184X25	traffic red RAL 3020	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06461-3A3184X30	traffic red RAL 3020	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06461-3A3184X40	traffic red RAL 3020	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06461-3A3184X50	traffic red RAL 3020	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06461-3A3184X60	traffic red RAL 3020	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06461-3A3185X20	signal green RAL 6032	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06461-3A3185X25	signal green RAL 6032	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06461-3A3185X30	signal green RAL 6032	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06461-3A3185X40	signal green RAL 6032	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06461-3A3185X50	signal green RAL 6032	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06461-3A3185X60	signal green RAL 6032	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06461-3A3186X20	traffic blue RAL 5017	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06461-3A3186X25	traffic blue RAL 5017	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06461-3A3186X30	traffic blue RAL 5017	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06461-3A3186X40	traffic blue RAL 5017	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06461-3A3186X50	traffic blue RAL 5017	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06461-3A3186X60	traffic blue RAL 5017	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06461-3A3187X20	light grey RAL 7035	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06461-3A3187X25	light grey RAL 7035	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06461-3A3187X30	light grey RAL 7035	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06461-3A3187X40	light grey RAL 7035	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06461-3A3187X50	light grey RAL 7035	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06461-3A3187X60	light grey RAL 7035	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06461-3A3188X20	window grey RAL 7040	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06461-3A3188X25	window grey RAL 7040	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06461-3A3188X30	window grey RAL 7040	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06461-3A3188X40	window grey RAL 7040	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06461-3A3188X50	window grey RAL 7040	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06461-3A3188X60	window grey RAL 7040	textured matt	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06461-3A4181X20	jet black RAL 9005	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06461-3A4181X25	jet black RAL 9005	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06461-3A4181X30	jet black RAL 9005	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06461-3A4181X40	jet black RAL 9005	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06461-3A4181X50	jet black RAL 9005	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06461-3A4181X60	jet black RAL 9005	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06461-3A4182X20	orange RAL 2004	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06461-3A4182X25	orange RAL 2004	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06461-3A4182X30	orange RAL 2004	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06461-3A4182X40	orange RAL 2004	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06461-3A4182X50	orange RAL 2004	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06461-3A4182X60	orange RAL 2004	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06461-3A4183X20	colza yellow RAL 1021	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06461-3A4183X25	colza yellow RAL 1021	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06461-3A4183X30	colza yellow RAL 1021	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06461-3A4183X40	colza yellow RAL 1021	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06461-3A4183X50	colza yellow RAL 1021	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06461-3A4183X60	colza yellow RAL 1021	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06461-3A4184X20	traffic red RAL 3020	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06461-3A4184X25	traffic red RAL 3020	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06461-3A4184X30	traffic red RAL 3020	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06461-3A4184X40	traffic red RAL 3020	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06461-3A4184X50	traffic red RAL 3020	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06461-3A4184X60	traffic red RAL 3020	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06461-3A4185X20	signal green RAL 6032	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06461-3A4185X25	signal green RAL 6032	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06461-3A4185X30	signal green RAL 6032	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06461-3A4185X40	signal green RAL 6032	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06461-3A4185X50	signal green RAL 6032	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06461-3A4185X60	signal green RAL 6032	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06461-3A4186X20	traffic blue RAL 5017	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06461-3A4186X25	traffic blue RAL 5017	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06461-3A4186X30	traffic blue RAL 5017	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06461-3A4186X40	traffic blue RAL 5017	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06461-3A4186X50	traffic blue RAL 5017	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06461-3A4186X60	traffic blue RAL 5017	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06461-3A4187X20	light grey RAL 7035	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06461-3A4187X25	light grey RAL 7035	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06461-3A4187X30	light grey RAL 7035	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06461-3A4187X40	light grey RAL 7035	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06461-3A4187X50	light grey RAL 7035	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06461-3A4187X60	light grey RAL 7035	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06461-3A4188X20	window grey RAL 7040	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06461-3A4188X25	window grey RAL 7040	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06461-3A4188X30	window grey RAL 7040	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06461-3A4188X40	window grey RAL 7040	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06461-3A4188X50	window grey RAL 7040	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06461-3A4188X60	window grey RAL 7040	textured matt	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06461-4A5181X25	jet black RAL 9005	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06461-4A5181X30	jet black RAL 9005	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06461-4A5181X40	jet black RAL 9005	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06461-4A5181X50	jet black RAL 9005	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06461-4A5181X60	jet black RAL 9005	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06461-4A5182X25	orange RAL 2004	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06461-4A5182X30	orange RAL 2004	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06461-4A5182X40	orange RAL 2004	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06461-4A5182X50	orange RAL 2004	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06461-4A5182X60	orange RAL 2004	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06461-4A5183X25	colza yellow RAL 1021	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06461-4A5183X30	colza yellow RAL 1021	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06461-4A5183X40	colza yellow RAL 1021	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06461-4A5183X50	colza yellow RAL 1021	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06461-4A5183X60	colza yellow RAL 1021	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06461-4A5184X25	traffic red RAL 3020	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06461-4A5184X30	traffic red RAL 3020	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06461-4A5184X40	traffic red RAL 3020	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06461-4A5184X50	traffic red RAL 3020	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06461-4A5184X60	traffic red RAL 3020	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06461-4A5185X25	signal green RAL 6032	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06461-4A5185X30	signal green RAL 6032	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06461-4A5185X40	signal green RAL 6032	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06461-4A5185X50	signal green RAL 6032	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06461-4A5185X60	signal green RAL 6032	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06461-4A5186X25	traffic blue RAL 5017	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06461-4A5186X30	traffic blue RAL 5017	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06461-4A5186X40	traffic blue RAL 5017	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06461-4A5186X50	traffic blue RAL 5017	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06461-4A5186X60	traffic blue RAL 5017	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06461-4A5187X25	light grey RAL 7035	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06461-4A5187X30	light grey RAL 7035	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06461-4A5187X40	light grey RAL 7035	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06461-4A5187X50	light grey RAL 7035	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06461-4A5187X60	light grey RAL 7035	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06461-4A5188X25	window grey RAL 7040	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06461-4A5188X30	window grey RAL 7040	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06461-4A5188X40	window grey RAL 7040	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06461-4A5188X50	window grey RAL 7040	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06461-4A5188X60	window grey RAL 7040	textured matt	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06461-5A6181X30	jet black RAL 9005	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06461-5A6181X40	jet black RAL 9005	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06461-5A6181X50	jet black RAL 9005	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06461-5A6181X60	jet black RAL 9005	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06461-5A6182X30	orange RAL 2004	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06461-5A6182X40	orange RAL 2004	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06461-5A6182X50	orange RAL 2004	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06461-5A6182X60	orange RAL 2004	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06461-5A6183X30	colza yellow RAL 1021	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06461-5A6183X40	colza yellow RAL 1021	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06461-5A6183X50	colza yellow RAL 1021	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06461-5A6183X60	colza yellow RAL 1021	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06461-5A6184X30	traffic red RAL 3020	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06461-5A6184X40	traffic red RAL 3020	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06461-5A6184X50	traffic red RAL 3020	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06461-5A6184X60	traffic red RAL 3020	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06461-5A6185X30	signal green RAL 6032	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06461-5A6185X40	signal green RAL 6032	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06461-5A6185X50	signal green RAL 6032	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06461-5A6185X60	signal green RAL 6032	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06461-5A6186X30	traffic blue RAL 5017	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06461-5A6186X40	traffic blue RAL 5017	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06461-5A6186X50	traffic blue RAL 5017	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06461-5A6186X60	traffic blue RAL 5017	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06461-5A6187X30	light grey RAL 7035	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06461-5A6187X40	light grey RAL 7035	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06461-5A6187X50	light grey RAL 7035	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06461-5A6187X60	light grey RAL 7035	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
06461-5A6188X30	window grey RAL 7040	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06461-5A6188X40	window grey RAL 7040	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06461-5A6188X50	window grey RAL 7040	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06461-5A6188X60	window grey RAL 7040	textured matt	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request

Clamping levers with external thread, steel parts stainless steel, bright, inch

More information

Drawings

Clamping levers with external thread, steel parts stainless steel, bright, inch

Item selection/filter

	bright	9 0 1 2 3 4 5	6-32 8-32 10-32 10-24 1/4-20 5/16-18 3/8-16 1/2-13 5/8-11	8 10 13,5 16 19 23	11 13 18,5 21 27 31	11,5 14 19 22 27,5 32	21,4 24,5 28,5 37 43 49	4 6,5 10 12	11,9 14,5 17,5 24 27 31,5	24 30 31 42,5 54,5 63 73	27 33 34 45,5 58,5 67,5 77,5	22 30 40 65 80 95 110	27,7 37 47 74,5 91 109 126	6,4 7 9,5 11 13 15	12 16 20 22 24 26	15 20 25 30 35 40 10 50 60				Reset
Order No.	Surface finish body	Size	X	D	D1	D2	H	H1	H2	H3	H4	A	A1	B	No. of teeth	L	CAD	Acc.	Price	Order
06461-9AD008X15	bright	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9AD008X20	bright	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9AD008X25	bright	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9AE008X15	bright	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9AE008X20	bright	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9AE008X25	bright	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9A1008X15	bright	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9A1008X20	bright	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9A1008X25	bright	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9A1008X30	bright	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06461-9A1008X35	bright	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06461-9A1008X40	bright	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	40			on request
06461-0AE008X10	bright	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0AE008X15	bright	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0AE008X20	bright	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0AE008X25	bright	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A0008X10	bright	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A0008X15	bright	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A0008X20	bright	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A0008X25	bright	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A1008X10	bright	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A1008X15	bright	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A1008X20	bright	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A1008X25	bright	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A2008X10	bright	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A2008X15	bright	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A2008X20	bright	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A2008X25	bright	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A2008X30	bright	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06461-0A2008X40	bright	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06461-0A2008X50	bright	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06461-1A0008X15	bright	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A0008X20	bright	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A0008X25	bright	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A1008X15	bright	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A1008X20	bright	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A1008X25	bright	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A2008X10	bright	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06461-1A2008X15	bright	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A2008X20	bright	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A2008X25	bright	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A2008X30	bright	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06461-1A2008X40	bright	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06461-1A2008X50	bright	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06461-2A2008X15	bright	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06461-2A2008X20	bright	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A2008X25	bright	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A2008X30	bright	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A2008X40	bright	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A2008X50	bright	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A2008X60	bright	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A3008X15	bright	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06461-2A3008X20	bright	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A3008X25	bright	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A3008X30	bright	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A3008X40	bright	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A3008X50	bright	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A3008X60	bright	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A4008X20	bright	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A4008X25	bright	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A4008X30	bright	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A4008X40	bright	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A4008X50	bright	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A4008X60	bright	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-3A3008X20	bright	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06461-3A3008X25	bright	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06461-3A3008X30	bright	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06461-3A3008X40	bright	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06461-3A3008X50	bright	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06461-3A3008X60	bright	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06461-3A4008X20	bright	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06461-3A4008X25	bright	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06461-3A4008X30	bright	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06461-3A4008X40	bright	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06461-3A4008X50	bright	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06461-3A4008X60	bright	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06461-4A5008X25	bright	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06461-4A5008X30	bright	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06461-4A5008X40	bright	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06461-4A5008X50	bright	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06461-4A5008X60	bright	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06461-5A6008X30	bright	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06461-5A6008X40	bright	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06461-5A6008X50	bright	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06461-5A6008X60	bright	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request

Clamping levers external thread, steel parts stainless steel, high-gloss chromed, inch

More information

Drawings

Clamping levers external thread, steel parts stainless steel, high-gloss chromed, inch

Item selection/filter

	silver	high-gloss chromed	9 0 1 2 3 4 5	6-32 8-32 10-32 10-24 1/4-20 5/16-18 3/8-16 1/2-13 5/8-11	8 10 13,5 16 19 23	11 13 18,5 21 27 31	11,5 14 19 22 27,5 32	21,4 24,5 28,5 37 43 49	4 6,5 10 12	11,9 14,5 17,5 24 27 31,5	24 30 31 42,5 54,5 63 73	27 33 34 45,5 58,5 67,5 77,5	22 30 40 65 80 95 110	27,7 37 47 74,5 91 109 126	6,4 7 9,5 11 13 15	12 16 20 22 24 26	15 20 25 30 35 40 10 50 60				Reset
Order No.	Main colour	Surface finish body	Size	X	D	D1	D2	H	H1	H2	H3	H4	A	A1	B	No. of teeth	L	CAD	Acc.	Price	Order
06461-9AD6X15	silver	high-gloss chromed	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9AD6X20	silver	high-gloss chromed	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9AD6X25	silver	high-gloss chromed	9	6-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9AE6X15	silver	high-gloss chromed	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9AE6X20	silver	high-gloss chromed	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9AE6X25	silver	high-gloss chromed	9	8-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9A16X15	silver	high-gloss chromed	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	15			on request
06461-9A16X20	silver	high-gloss chromed	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	20			on request
06461-9A16X25	silver	high-gloss chromed	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	25			on request
06461-9A16X30	silver	high-gloss chromed	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	30			on request
06461-9A16X35	silver	high-gloss chromed	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	35			on request
06461-9A16X40	silver	high-gloss chromed	9	10-32	8	11	11,5	21,4	4	11,9	24	27	22	27,7	6,4	12	40			on request
06461-0AE6X10	silver	high-gloss chromed	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0AE6X15	silver	high-gloss chromed	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0AE6X20	silver	high-gloss chromed	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0AE6X25	silver	high-gloss chromed	0	8-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A06X10	silver	high-gloss chromed	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A06X15	silver	high-gloss chromed	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A06X20	silver	high-gloss chromed	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A06X25	silver	high-gloss chromed	0	10-24	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A16X10	silver	high-gloss chromed	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A16X15	silver	high-gloss chromed	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A16X20	silver	high-gloss chromed	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A16X25	silver	high-gloss chromed	0	10-32	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A26X10	silver	high-gloss chromed	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	10			on request
06461-0A26X15	silver	high-gloss chromed	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	15			on request
06461-0A26X20	silver	high-gloss chromed	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	20			on request
06461-0A26X25	silver	high-gloss chromed	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	25			on request
06461-0A26X30	silver	high-gloss chromed	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	30			on request
06461-0A26X40	silver	high-gloss chromed	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	40			on request
06461-0A26X50	silver	high-gloss chromed	0	1/4-20	10	13	14	24,5	4	14,5	30	33	30	37	7	16	50			on request
06461-1A06X15	silver	high-gloss chromed	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A06X20	silver	high-gloss chromed	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A06X25	silver	high-gloss chromed	1	10-24	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A16X15	silver	high-gloss chromed	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A16X20	silver	high-gloss chromed	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A16X25	silver	high-gloss chromed	1	10-32	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A26X10	silver	high-gloss chromed	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	10			on request
06461-1A26X15	silver	high-gloss chromed	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	15			on request
06461-1A26X20	silver	high-gloss chromed	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	20			on request
06461-1A26X25	silver	high-gloss chromed	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	25			on request
06461-1A26X30	silver	high-gloss chromed	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	30			on request
06461-1A26X40	silver	high-gloss chromed	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	40			on request
06461-1A26X50	silver	high-gloss chromed	1	1/4-20	10	13	14	24,5	4	14,5	31	34	40	47	7	16	50			on request
06461-2A26X15	silver	high-gloss chromed	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06461-2A26X20	silver	high-gloss chromed	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A26X25	silver	high-gloss chromed	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A26X30	silver	high-gloss chromed	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A26X40	silver	high-gloss chromed	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A26X50	silver	high-gloss chromed	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A26X60	silver	high-gloss chromed	2	1/4-20	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A36X15	silver	high-gloss chromed	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	15			on request
06461-2A36X20	silver	high-gloss chromed	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A36X25	silver	high-gloss chromed	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A36X30	silver	high-gloss chromed	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A36X40	silver	high-gloss chromed	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A36X50	silver	high-gloss chromed	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A36X60	silver	high-gloss chromed	2	5/16-18	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-2A46X20	silver	high-gloss chromed	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	20			on request
06461-2A46X25	silver	high-gloss chromed	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	25			on request
06461-2A46X30	silver	high-gloss chromed	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	30			on request
06461-2A46X40	silver	high-gloss chromed	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	40			on request
06461-2A46X50	silver	high-gloss chromed	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	50			on request
06461-2A46X60	silver	high-gloss chromed	2	3/8-16	13,5	18,5	19	28,5	6,5	17,5	42,5	45,5	65	74,5	9,5	20	60			on request
06461-3A36X20	silver	high-gloss chromed	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06461-3A36X25	silver	high-gloss chromed	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06461-3A36X30	silver	high-gloss chromed	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06461-3A36X40	silver	high-gloss chromed	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06461-3A36X50	silver	high-gloss chromed	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06461-3A36X60	silver	high-gloss chromed	3	5/16-18	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06461-3A46X20	silver	high-gloss chromed	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	20			on request
06461-3A46X25	silver	high-gloss chromed	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	25			on request
06461-3A46X30	silver	high-gloss chromed	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	30			on request
06461-3A46X40	silver	high-gloss chromed	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	40			on request
06461-3A46X50	silver	high-gloss chromed	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	50			on request
06461-3A46X60	silver	high-gloss chromed	3	3/8-16	16	21	22	37	10	24	54,5	58,5	80	91	11	22	60			on request
06461-4A56X25	silver	high-gloss chromed	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	25			on request
06461-4A56X30	silver	high-gloss chromed	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	30			on request
06461-4A56X40	silver	high-gloss chromed	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	40			on request
06461-4A56X50	silver	high-gloss chromed	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	50			on request
06461-4A56X60	silver	high-gloss chromed	4	1/2-13	19	27	27,5	43	10	27	63	67,5	95	109	13	24	60			on request
06461-5A66X30	silver	high-gloss chromed	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	30			on request
06461-5A66X40	silver	high-gloss chromed	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	40			on request
06461-5A66X50	silver	high-gloss chromed	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	50			on request
06461-5A66X60	silver	high-gloss chromed	5	5/8-11	23	31	32	49	12	31,5	73	77,5	110	126	15	26	60			on request
