        Tube clamps cross, aluminium, inch

Item description/product images

DescriptionMaterial:Cast aluminium.
DIN 7984 screws and DIN 985 nuts, steel.Version:Vibratory ground.
Screws and nuts electro zinc-plated.Note:The dimensions for A and B are in inches, all other dimensions are in mm.On request:Clamping levers for tightening.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 29000 inch Tube clamps cross, aluminium, inch

729 kB

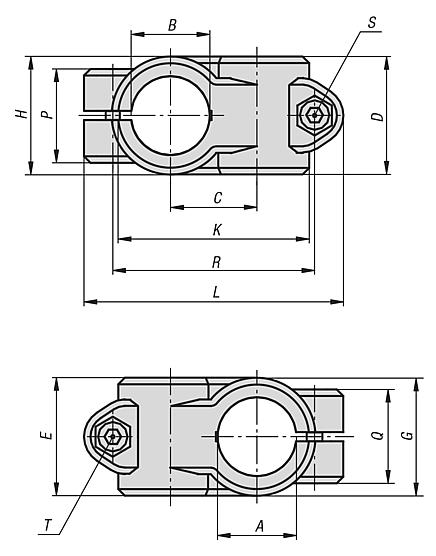

Drawings

Item selection/filter

Order No.	A	B	C	D	E	G	H	K	L	P	Q	R	S	T	Price
29000-5CPCP	0.5	0.5	20	25,5	25,5	-	-	43,5	67	23	23	49	M6x20	M6x20	on request
29000-5CRCR	0.75	0.75	20	25,5	25,5	-	-	43,5	67	23	23	49	M6x20	M6x20	on request
29000-5CSCS	1	1	33	40	40	-	-	73	101	33	33	78	M8x25	M8x25	on request
29000-5CTCT	1.25	1.25	33	40	40	-	-	73	101	33	33	78	M8x25	M8x25	on request
29000-5D2D2	1.5	1.5	45	60	60	-	-	100	137	40	40	111	M10x30	M10x30	on request
29000-5D4D4	2	2	53	70	70	-	-	118	154	45	45	128	M10x35	M10x35	on request
29000-5CPCS	1	0.5	27	40	33	40	26	59	84	21	33	65	M8x25	M6x20	on request
29000-5CRCS	1	0.75	27	40	33	40	26	59	84	21	33	65	M8x25	M6x20	on request
