Flat knobs with internal thread

06237_IG

Flat knobs with internal thread

Products
- Product overview
  - Flexible standard component system
    - Operating parts
      - Grips, handles and knobs
        Knobs flat
        Flat knobs with internal thread

Item description/product images

DescriptionMaterial:Steel.Version:Black oxidised.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06237_IG Flat knobs with internal thread

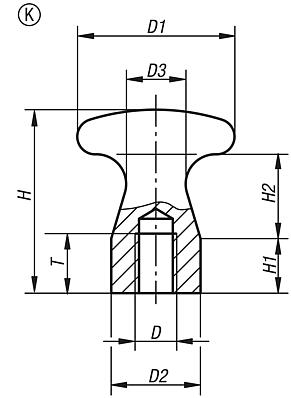

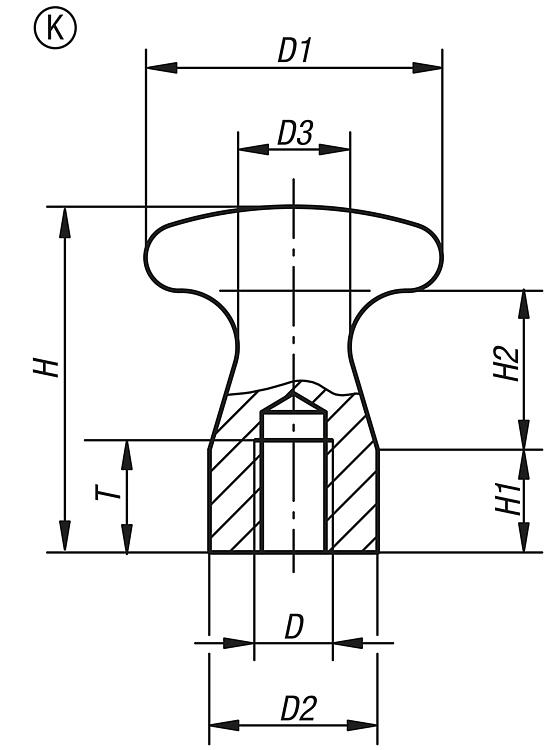

Drawings

Flat knobs with internal thread

Item selection/filter

Order No.	Form	D	D1	D2	D3	H	H1	H2	T	CAD	Acc.	Price	Order
06237-05	K	M5	16	10	6	18	5	9	7			on request
06237-06	K	M6	25	14	10	29	9	13	9			on request
06237-08	K	M8	32	18	12	37	11	17	12			on request
06237-10	K	M10	36	20	13	42	12	20	15			on request

Other items in this category

Flat knobs with external thread

06237_AG

Flat knobs with external thread
