Knobs flat
 06237

Knobs flat

 go back

Item description/product images
DescriptionMaterial:Steel.Version:Black oxidised.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 06237 Knobs flat 162 kB

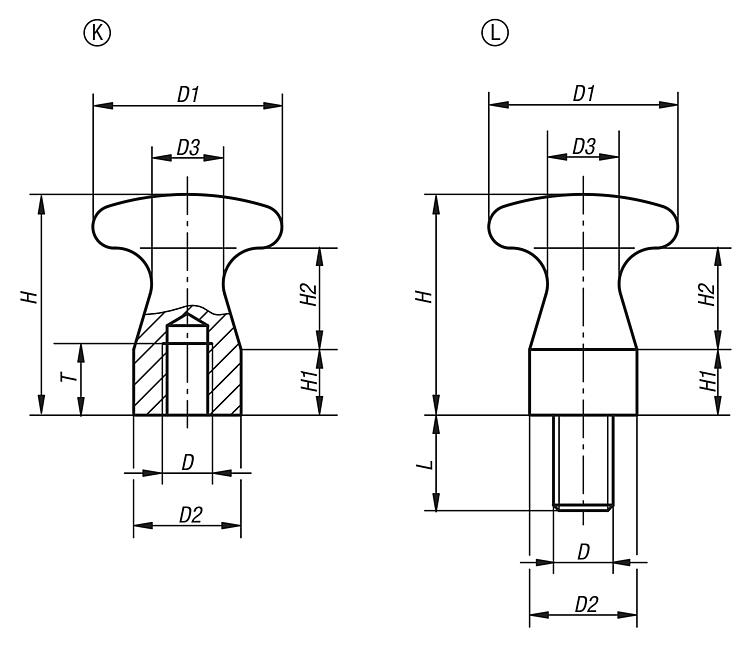

Drawings (total overview)

Knobs flat

Flat knobs with internal thread

 More information

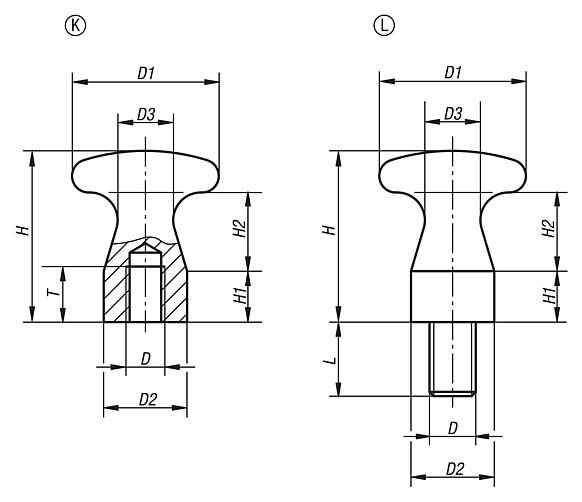

Drawings
Flat knobs with internal thread

Item selection/filter


  •
  • K

  •
  • M5
  • M6
  • M8
  • M10

  •
  • 16
  • 25
  • 32
  • 36

  •
  • 10
  • 14
  • 18
  • 20

  •
  • 6
  • 10
  • 12
  • 13

  •
  • 18
  • 29
  • 37
  • 42

  •
  • 5
  • 9
  • 11
  • 12

  •
  • 9
  • 13
  • 17
  • 20

  •
  • 7
  • 9
  • 12
  • 15

Reset
Order No.

FormDD1D2D3HH1H2TCADAcc.PriceOrder
06237-05KM51610618597  on request
06237-06KM6251410299139  on request
06237-08KM832181237111712  on request
06237-10KM1036201342122015  on request

Flat knobs with external thread

 More information

Drawings
Flat knobs with external thread

Item selection/filter


  •
  • L

  •
  • M6
  • M8
  • M10
  • M12

  •
  • 16
  • 25
  • 32
  • 36

  •
  • 10
  • 14
  • 18
  • 20

  •
  • 6
  • 10
  • 12
  • 13

  •
  • 18
  • 29
  • 37
  • 42

  •
  • 5
  • 9
  • 11
  • 12

  •
  • 9
  • 13
  • 17
  • 20

  •
  • 10
  • 14
  • 16
  • 18

Reset
Order No.

FormDD1D2D3HH1H2LCADAcc.PriceOrder
06237-06010LM616106185910  on request
06237-08014LM82514102991314  on request
06237-10016LM1032181237111716  on request
06237-12018LM1236201342122018  on request
