T-grips, with internal thread

go back

Products
- Product overview
  - Flexible standard component system
    - Operating parts
      - Grips, handles and knobs
        T-grips
        T-grips, with internal thread

Item description/product images

DescriptionMaterial, version:Glass-fibre reinforced thermoplastic, black
Threaded bush in brass.On request:Grip colour red, yellow, green, blue, white or grey (min. quanitity 1000).Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06649_IG T-grips, with internal thread

159 kB

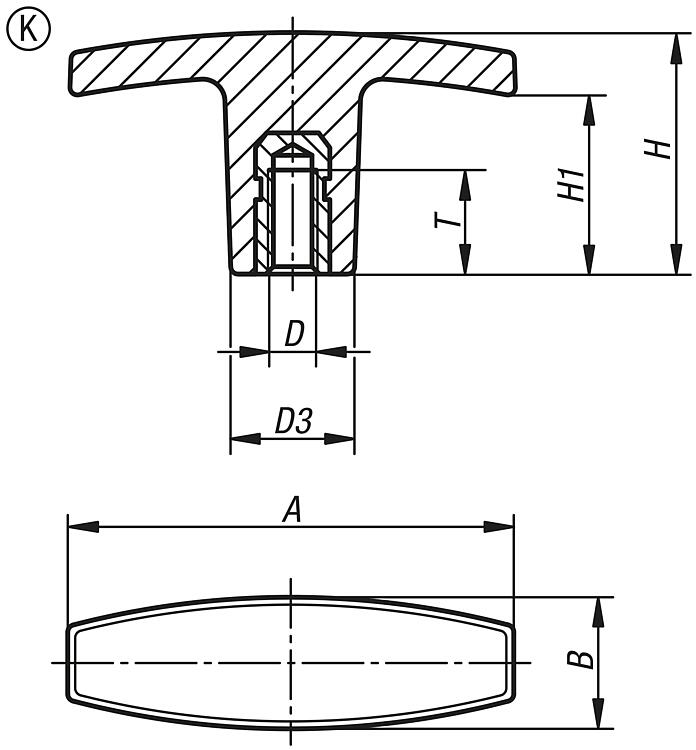

Drawings

Item selection/filter

Order No.	Form	A	B	D	D3	H	H1	T	Price
06649-14005	K	40	13	M5	13	30,5	20	10	on request
06649-15005	K	50	15	M5	14	24	16	10	on request
06649-16006	K	60	17	M6	16	31,5	23	12	on request
06649-17108	K	71	19,5	M8	20	36	19	20	on request
06649-17110	K	71	19,5	M10	20	36	19	20	on request
06649-18010	K	80	26	M10	26	39,5	26	25	on request
06649-18012	K	80	26	M12	26	39,5	26	25	on request
