        Multi-clamping system double-sided wedge clamps fixed jaw ES

Item description/product images

DescriptionMaterial:Clamping rail and fixed jaw tool steel.
Wedge clamp mild steel.Version:Clamping rail and fixed jaw hardened and ground (HRC 55 ±2).
Wedge clamp hardened, phosphated.Note:The multi-clamping system can be fastened using various interfaces.
1. Lateral clamping edge for clamping claw set. Clamping claws can be fastened at any position.
2. Holes for DIN cap screws.
3. Ø25 mm locating holes for conventional zero-point clamping systems with 200 mm spacing.
4. Ø16 mm locating holes for zero-point clamping systems with 96 mm spacing.
5. Three 18H7 alignment slots for crosswise and lengthwise alignment on T- slot tables.
6. Ø12F7 and Ø16F7 reamed holes for 40 and 50 mm grid systems.

Three different versions are available:
- Multi-clamping system double-sided wedge clamp with OS fixed jaw / 41510.
- Multi-clamping system double-sided wedge clamp with DS fixed jaw / 41510-10.
- Multi-clamping system single-sided wedge clamp with OS fixed jaw / 41510-20.Technical data:System width 50
Maximum clamping force: 10 kN
Maximum tightening torque: 30 Nm

System width 72
Maximum clamping force: 20 kN
Maximum tightening torque: 50 Nm

System width 100
Maximum clamping force: 30 kN
Maximum tightening torque: 65 NmApplication:A number of multi-clamping systems with different lengths can be mounted one behind the other or beside each other. The precision toothing enables highly precise positioning of the fixed jaws. Due to the lateral graduations on the clamping rails, each position of the fixed jaws can be documented and reset identically. Stops can be mounted in the tapped holes on the side.
Turning the clamping screw moves the clamping segments outwards and press the workpieces against the fixed jaw.Advantages:Universal and flexible.
For small and large batch sizes.
Large components can also be clamped next to each other on several multiple clamping systems.Accessory:Clamping pin 42208.
Cap screws 07160.
Shoulder screws 07533-12045 / 07533-16055.
Seating ledges 41505.
Attachment jaws with machining allowance 41505-02.
Attachment jaws with prism 41505-04.
Workpiece stop 41505-10.
Spacer 41505-12.
Clamping claw set 41505-15.
T-slot nut 41505-17.
T-slot key 03240.Supplied with1x clamping rail

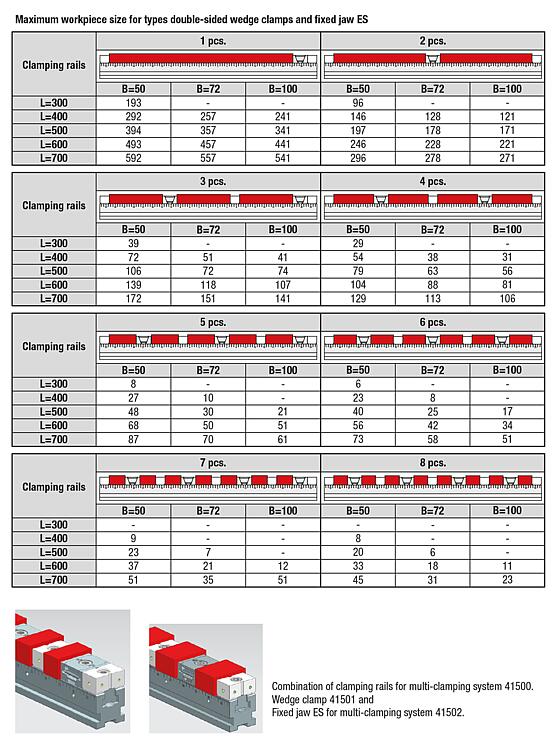

The number of wedge clamps and fixed jaws is dependent on the system size (see table).

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 41510 Multi-clamping system double-sided wedge clamps fixed jaw ES

511 kB

Technical information for multi-clamping system

1,9 MB

Drawings

Item selection/filter

Order No.	B	Version 1	L	H	L min.	L max.	L1	L2	L3	L4	L5	L6	L7	Clamping force max. kN	Tightening torque max. Nm	Price
41510-05030001	50	smooth	300	75	44,5	50,5	96	200	-	-	-	-	30	10	30	on request
41510-05040001	50	smooth	400	75	44,5	50,5	96	200	288	300	-	-	30	10	30	on request
41510-05050001	50	smooth	500	75	44,5	50,5	96	200	288	400	-	-	30	10	30	on request
41510-05060001	50	smooth	600	75	44,5	50,5	96	200	288	400	500	-	30	10	30	on request
41510-05070001	50	smooth	700	75	44,5	50,5	96	200	288	400	560	600	30	10	30	on request
41510-05030002	50	serrated	300	75	44,5	50,5	96	200	-	-	-	-	30	10	30	on request
41510-05040002	50	serrated	400	75	44,5	50,5	96	200	288	300	-	-	30	10	30	on request
41510-05050002	50	serrated	500	75	44,5	50,5	96	200	288	400	-	-	30	10	30	on request
41510-05060002	50	serrated	600	75	44,5	50,5	96	200	288	400	500	-	30	10	30	on request
41510-05070002	50	serrated	700	75	44,5	50,5	96	200	288	400	560	600	30	10	30	on request
41510-07240001	72	smooth	400	112	61	68	96	200	288	300	-	-	40	20	50	on request
41510-07250001	72	smooth	500	112	61	68	96	200	288	400	-	-	40	20	50	on request
41510-07260001	72	smooth	600	112	61	68	96	200	288	400	500	-	40	20	50	on request
41510-07270001	72	smooth	700	112	61	68	96	200	288	400	560	600	40	20	50	on request
41510-07240002	72	serrated	400	112	61	68	96	200	288	300	-	-	40	20	50	on request
41510-07250002	72	serrated	500	112	61	68	96	200	288	400	-	-	40	20	50	on request
41510-07260002	72	serrated	600	112	61	68	96	200	288	400	500	-	40	20	50	on request
41510-07270002	72	serrated	700	112	61	68	96	200	288	400	560	600	40	20	50	on request
41510-10040001	100	smooth	400	114,6	71	78	96	200	288	300	-	-	44	30	65	on request
41510-10050001	100	smooth	500	114,6	71	78	96	200	288	400	-	-	44	30	65	on request
41510-10060001	100	smooth	600	114,6	71	78	96	200	288	400	500	-	44	30	65	on request
41510-10070001	100	smooth	700	114,6	71	78	96	200	288	400	560	600	44	30	65	on request
41510-10040002	100	serrated	400	114,6	71	78	96	200	288	300	-	-	44	30	65	on request
41510-10050002	100	serrated	500	114,6	71	78	96	200	288	400	-	-	44	30	65	on request
41510-10060002	100	serrated	600	114,6	71	78	96	200	288	400	500	-	44	30	65	on request
41510-10070002	100	serrated	700	114,6	71	78	96	200	288	400	560	600	44	30	65	on request

Order No.	B	Version 1	L	D	D1	D2	D3	D4	D5	D6	D7	H1	H2	H3	H4	Clamping force max. kN	Tightening torque max. Nm	Price
41510-05030001	50	smooth	300	25	12	20	16	17,5	11	M5	M6	50	25	12	16	10	30	on request
41510-05040001	50	smooth	400	25	12	20	16	17,5	11	M5	M6	50	25	12	16	10	30	on request
41510-05050001	50	smooth	500	25	12	20	16	17,5	11	M5	M6	50	25	12	16	10	30	on request
41510-05060001	50	smooth	600	25	12	20	16	17,5	11	M5	M6	50	25	12	16	10	30	on request
41510-05070001	50	smooth	700	25	12	20	16	17,5	11	M5	M6	50	25	12	16	10	30	on request
41510-05030002	50	serrated	300	25	12	20	16	17,5	11	M5	M6	50	25	12	16	10	30	on request
41510-05040002	50	serrated	400	25	12	20	16	17,5	11	M5	M6	50	25	12	16	10	30	on request
41510-05050002	50	serrated	500	25	12	20	16	17,5	11	M5	M6	50	25	12	16	10	30	on request
41510-05060002	50	serrated	600	25	12	20	16	17,5	11	M5	M6	50	25	12	16	10	30	on request
41510-05070002	50	serrated	700	25	12	20	16	17,5	11	M5	M6	50	25	12	16	10	30	on request
41510-07240001	72	smooth	400	25	16	26	16	17,5	11	M6	M6	72	40	15	23,5	20	50	on request
41510-07250001	72	smooth	500	25	16	26	16	17,5	11	M6	M6	72	40	15	23,5	20	50	on request
41510-07260001	72	smooth	600	25	16	26	16	17,5	11	M6	M6	72	40	15	23,5	20	50	on request
41510-07270001	72	smooth	700	25	16	26	16	17,5	11	M6	M6	72	40	15	23,5	20	50	on request
41510-07240002	72	serrated	400	25	16	26	16	17,5	11	M6	M6	72	40	15	23,5	20	50	on request
41510-07250002	72	serrated	500	25	16	26	16	17,5	11	M6	M6	72	40	15	23,5	20	50	on request
41510-07260002	72	serrated	600	25	16	26	16	17,5	11	M6	M6	72	40	15	23,5	20	50	on request
41510-07270002	72	serrated	700	25	16	26	16	17,5	11	M6	M6	72	40	15	23,5	20	50	on request
41510-10040001	100	smooth	400	25	16	26	16	17,5	11	M6	M8	72	42,6	15	23,5	30	65	on request
41510-10050001	100	smooth	500	25	16	26	16	17,5	11	M6	M8	72	42,6	15	23,5	30	65	on request
41510-10060001	100	smooth	600	25	16	26	16	17,5	11	M6	M8	72	42,6	15	23,5	30	65	on request
41510-10070001	100	smooth	700	25	16	26	16	17,5	11	M6	M8	72	42,6	15	23,5	30	65	on request
41510-10040002	100	serrated	400	25	16	26	16	17,5	11	M6	M8	72	42,6	15	23,5	30	65	on request
41510-10050002	100	serrated	500	25	16	26	16	17,5	11	M6	M8	72	42,6	15	23,5	30	65	on request
41510-10060002	100	serrated	600	25	16	26	16	17,5	11	M6	M8	72	42,6	15	23,5	30	65	on request
41510-10070002	100	serrated	700	25	16	26	16	17,5	11	M6	M8	72	42,6	15	23,5	30	65	on request

Order No.	B	Version 1	L	F Socket head screw DIN 912	G cap screw DIN 912	NK = Quatity Wedge clamp	NF = Quantity Fixed jaw	NW = Quantity Workpieces	Price
41510-05030001	50	smooth	300	M10x30	M12x25	2	3	4	on request
41510-05040001	50	smooth	400	M10x30	M12x25	2	3	4	on request
41510-05050001	50	smooth	500	M10x30	M12x25	2	3	4	on request
41510-05060001	50	smooth	600	M10x30	M12x25	2	3	4	on request
41510-05070001	50	smooth	700	M10x30	M12x25	2	3	4	on request
41510-05030002	50	serrated	300	M10x30	M12x25	2	3	4	on request
41510-05040002	50	serrated	400	M10x30	M12x25	2	3	4	on request
41510-05050002	50	serrated	500	M10x30	M12x25	2	3	4	on request
41510-05060002	50	serrated	600	M10x30	M12x25	2	3	4	on request
41510-05070002	50	serrated	700	M10x30	M12x25	2	3	4	on request
41510-07240001	72	smooth	400	M14X1,5X50	M16x40	1	2	2	on request
41510-07250001	72	smooth	500	M14X1,5X50	M16x40	1	2	2	on request
41510-07260001	72	smooth	600	M14X1,5X50	M16x40	1	2	2	on request
41510-07270001	72	smooth	700	M14X1,5X50	M16x40	1	2	2	on request
41510-07240002	72	serrated	400	M14X1,5X50	M16x40	1	2	2	on request
41510-07250002	72	serrated	500	M14X1,5X50	M16x40	1	2	2	on request
41510-07260002	72	serrated	600	M14X1,5X50	M16x40	1	2	2	on request
41510-07270002	72	serrated	700	M14X1,5X50	M16x40	1	2	2	on request
41510-10040001	100	smooth	400	M14X1,5X50	M16x40	1	2	2	on request
41510-10050001	100	smooth	500	M14X1,5X50	M16x40	1	2	2	on request
41510-10060001	100	smooth	600	M14X1,5X50	M16x40	1	2	2	on request
41510-10070001	100	smooth	700	M14X1,5X50	M16x40	1	2	2	on request
41510-10040002	100	serrated	400	M14X1,5X50	M16x40	1	2	2	on request
41510-10050002	100	serrated	500	M14X1,5X50	M16x40	1	2	2	on request
41510-10060002	100	serrated	600	M14X1,5X50	M16x40	1	2	2	on request
41510-10070002	100	serrated	700	M14X1,5X50	M16x40	1	2	2	on request
