        UNILOCK clamping pin size 80 mm

Item description/product images

DescriptionMaterial:Steel.Version:Hardened and black oxidised.
Contact faces ground.Note:The UNIlock clamping pin is suitable for clamping and positioning workpieces and fixtures.

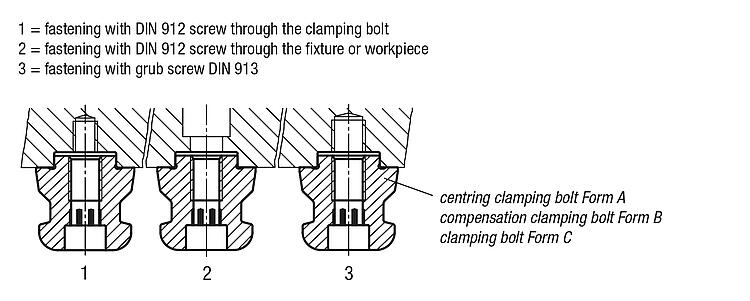

Clamping pins are screwed onto the exchange element and adapted to the various basic modules.

The following retaining forces are possible when the UNIlock clamping pins are used together with M10, M12 or M16 fastening screws:

- Retaining force (M10) 35,000N
- Retaining force (M12) 50,000N
- Retaining force (M16) 75,000N

Other clamping pins in the same system size are available under NLM 42208, 42210 and 42208 with threaded pin.
Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 42208 UNILOCK clamping pin size 80 mm

244 kB

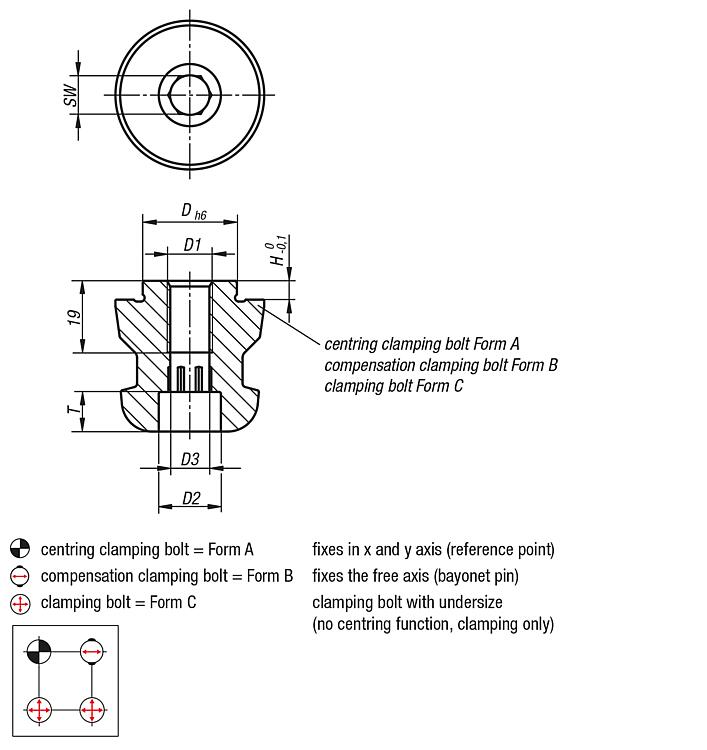

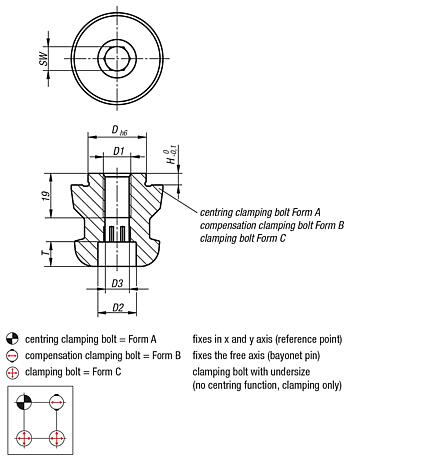

Drawings

Item selection/filter

Order No.	Form	D	D1	D2	D3	H	T	SW	Price
42208-140160512	A	16	M12	16,5	10,3	5	10,5	10	on request
42208-140180512	A	18	M12	16,5	10,3	5	10,5	10	on request
42208-140220516	A	22	M16	18,5	14,2	5	12,5	17	on request
42208-140250512	A	25	M12	16,5	10,3	5	10,5	10	on request
42208-140250516	A	25	M16	18,5	14,2	5	12,5	17	on request
42208-240160512	B	16	M12	16,5	10,3	5	10,5	10	on request
42208-240180512	B	18	M12	16,5	10,3	5	10,5	10	on request
42208-240220516	B	22	M16	18,5	14,2	5	12,5	17	on request
42208-240250512	B	25	M12	16,5	10,3	5	10,5	10	on request
42208-240250516	B	25	M16	18,5	14,2	5	12,5	17	on request
42208-340160512	C	16	M12	16,5	10,3	5	10,5	10	on request
42208-340180512	C	18	M12	16,5	10,3	5	10,5	10	on request
42208-340220516	C	22	M16	18,5	14,2	5	12,5	17	on request
42208-340250512	C	25	M12	16,5	10,3	5	10,5	10	on request
42208-340250516	C	25	M16	18,5	14,2	5	12,5	17	on request
