UNILOCK clamping pin with through hole system size 80 mm

42209

UNILOCK clamping pin with through hole system size 80 mm

Products
- Product overview
  - Clamping technology
    - Zero Point Clamping Technology
      - Zero-point clamping systems
        UNILOCK clamping pin with through hole system size 80 mm

Item description/product images

DescriptionMaterial:Steel.Version:Hardened and black oxidised.
Contact faces ground.

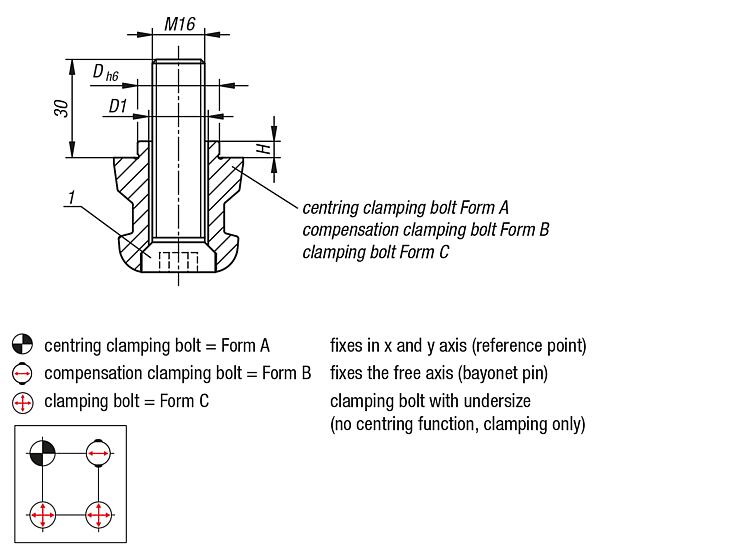

Swivel fastening screw M16x65, tempered and black oxidised.Note:The UNILOCK clamping pint is suitable for clamping and positioning workpieces and fixtures. Clamping pins are screwed onto the exchange element and adapted to the various basic modules.Drawing reference:

1) Swivel fastening screw M16x65.
Grade 10.9.

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 42209 UNILOCK clamping pin with through hole system size 80 mm

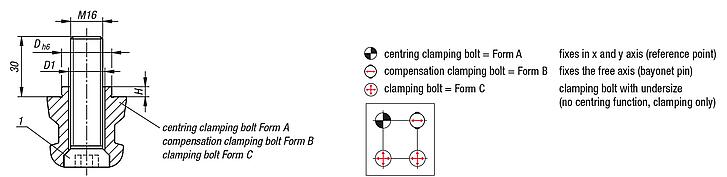

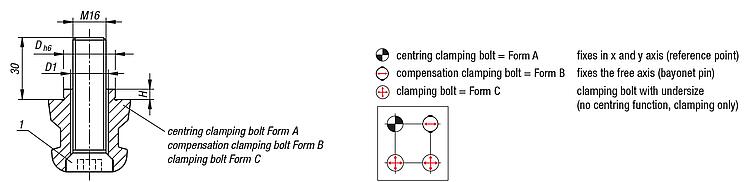

Drawings

UNILOCK clamping pin with through hole system size 80 mm

Item selection/filter

Order No.	Form	D	D1	H	Tightening torque max. Nm	CAD	Acc.	Price	Order
42209-140250516	A	25	16,5	5	120			on request
42209-240250516	B	25	16,5	5	120			on request
42209-340250516	C	25	16,5	5	120			on request
