        Connectors self-assembly with screw fitting

Item description/product images

Show/filter all items

DescriptionMaterial:Housing, plastic
Contacts M8x1 gold-plated bronze.
Contacts M12x1 Optaloy-coated brass.Version:Bush (female)
Voltage: U max. 60 V
Current: I max. 4 A
Terminals: 3-pin (4-pin by M12x1)
Security type: IP 67Note:Plug connector for self-assembly with screw lock.Temperature range:-25 °C to +85 °CDrawing reference:

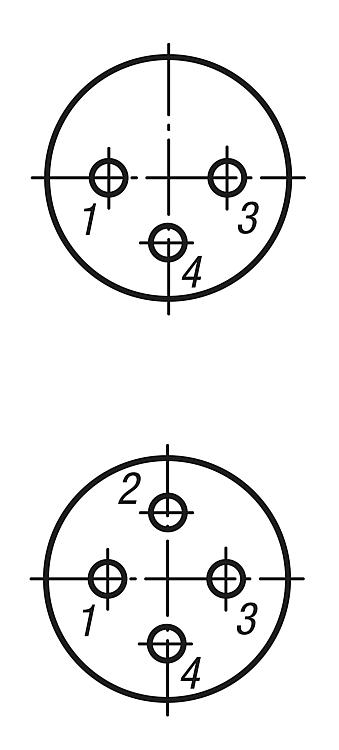

P1 = cable outlet

1 = brown (BN)
2 = white (WH)
3 = blue (BU)
4 = black (BK)

Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 80100 Connectors self-assembly with screw fitting

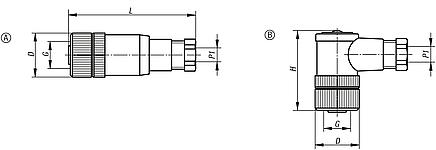

Drawings (total overview)

Connectors self-assembly with screw fitting

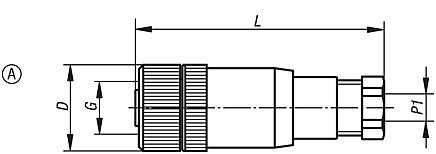

Connectors convertible with screw fitting, Form A

More information

Drawings

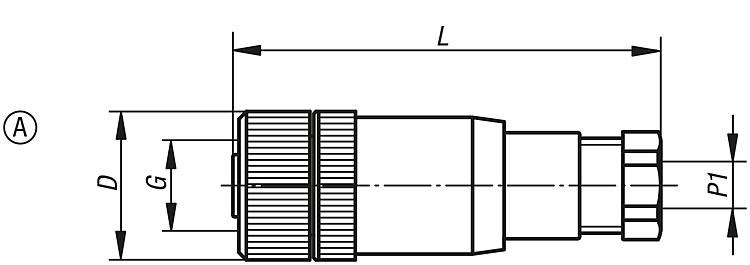

Connectors convertible with screw fitting, Form A

Item selection/filter

Order No.	Form	D	G	L	P1	Connection type	Connection cross-section max. (mm²)	CAD	Acc.	Price	Order
80100-010	A	12	M8x1	45	3,5 - 5	screw connection	0,5			on request
80100-020	A	20	M12x1	54	4 - 6	screw connection	0,75			on request

Connectors convertible with screw fitting, Form B

More information

Drawings

Connectors convertible with screw fitting, Form B

Item selection/filter

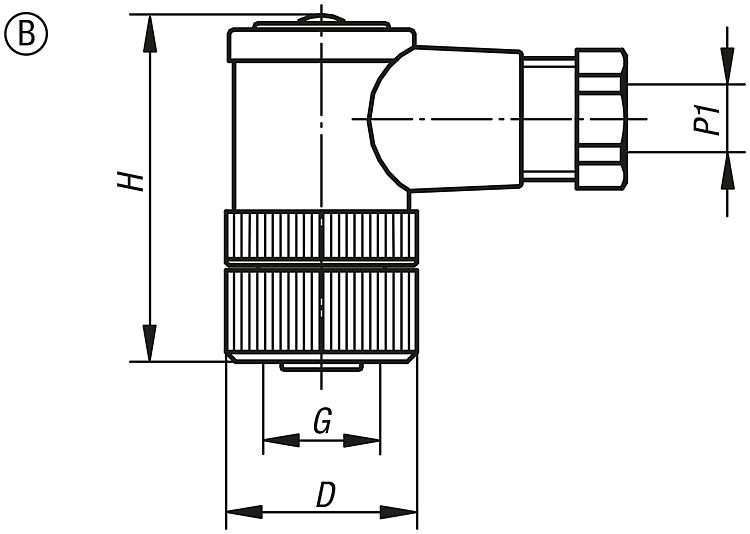

Order No.	Form	D	G	H	P1	Connection type	Connection cross-section max. (mm²)	CAD	Acc.	Price	Order
80100-030	B	12	M8x1	28	3,5 - 5	soldered connection	0,25			on request
80100-040	B	20	M12x1	38	4 - 6	screw connection	0,75			on request
