80850-10Energy chains, plastic inner height 17 mm, openable along inner... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Polyamide fibreglass reinforced.Version:Black. Openable along inner radius.Note:Energy supply chains for safe guiding of flexible electric and data cables as well as pneumatic and hydraulic hoses. The modularly constructed chains can be easily shortened or extended.

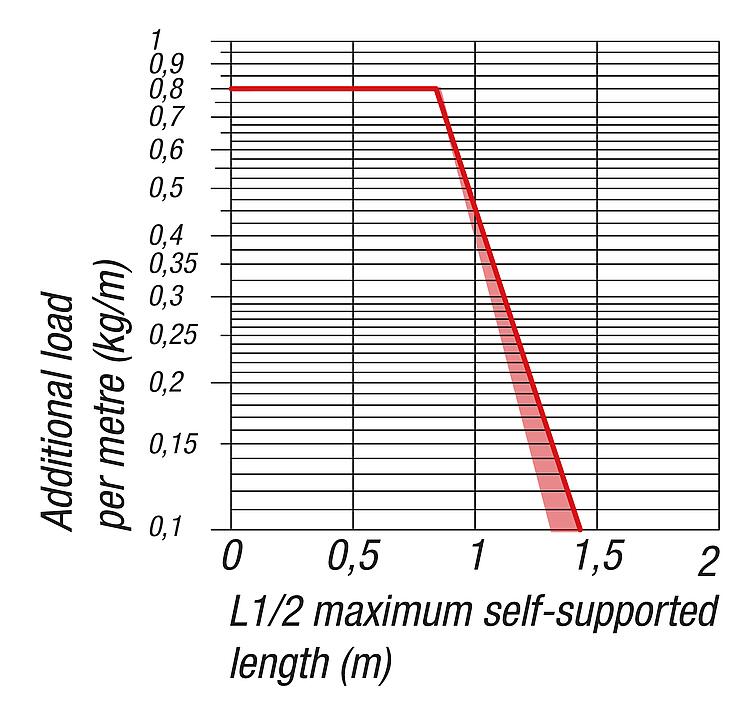

The material is UV-resistant and therefore also suitable for outdoor applications.Technical data:Technical features in unsupported areas:
Speed: 10 m/s
Acceleration: 50 m/s²Temperature range:-30°C to +125°CSpecial features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | B
| B1 | H | H1 | L | E | M | N | R | No. of
links | Approx.
weight kg/m
| CAD | Acc. | Price | Order |
|---|
| 80850-10-170500381 | 50 | 61 | 17 | 23 | 986 | 99 | 177 | 78,5 | 38 | 34 | 0,43 |  | | on request | | | 80850-10-170250281 | 25 | 36 | 17 | 23 | 986 | 79 | 146 | 68,5 | 28 | 34 | 0,37 | | | on request | | | 80850-10-170250601 | 25 | 36 | 17 | 23 | 986 | 143 | 246 | 100,5 | 60 | 34 | 0,37 | | | on request | | | 80850-10-170250381 | 25 | 36 | 17 | 23 | 986 | 99 | 177 | 78,5 | 38 | 34 | 0,37 | | | on request | | | 80850-10-170500281 | 50 | 61 | 17 | 23 | 986 | 79 | 146 | 68,5 | 28 | 34 | 0,43 | | | on request | | | 80850-10-170500601 | 50 | 61 | 17 | 23 | 986 | 143 | 246 | 100,5 | 60 | 34 | 0,43 | | | on request | |
Order No.
| Connecting element | Tension relief | Divider | CAD | Acc. | Price | Order |
|---|
| 80850-10-170500381 | 80850-11-17050 | integrated in connection element | 80850-12-17 | | | on request | | | 80850-10-170250281 | 80850-11-17025 | integrated in connection element | 80850-12-17 | | | on request | | | 80850-10-170250601 | 80850-11-17025 | integrated in connection element | 80850-12-17 | | | on request | | | 80850-10-170250381 | 80850-11-17025 | integrated in connection element | 80850-12-17 | | | on request | | | 80850-10-170500281 | 80850-11-17050 | integrated in connection element | 80850-12-17 | | | on request | | | 80850-10-170500601 | 80850-11-17050 | integrated in connection element | 80850-12-17 | | | on request | |
