83450Mechanical position switch plastic housing |
go back |
|

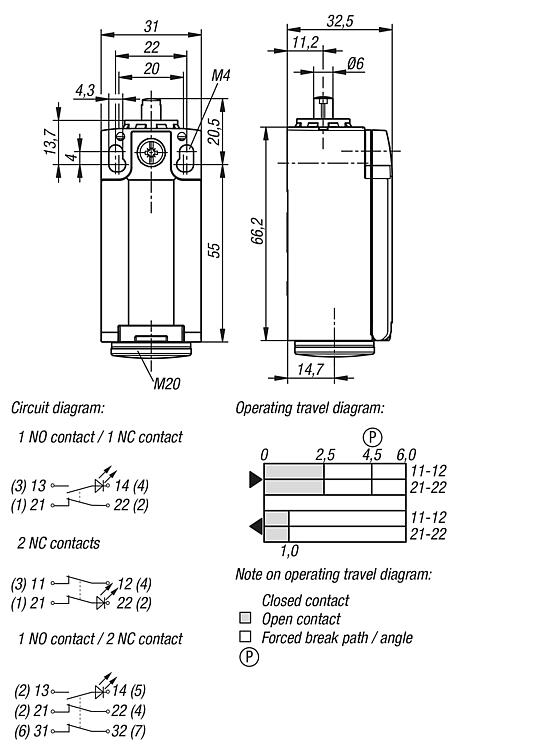

Item description/product images |
|
|
DescriptionProduct description:The position switches are used for position detection and position monitoring of moving parts on machines and systems. All position switches have forced break NC contacts in accordance with IEC 60947-5-1.Material:Housing fibreglass reinforced plastic.
Contacts (electrical) silver.
Thrust pin plastic (Drive type B acc. to EN 50047).Note:Complete position switch in compact design. The plastic housing is equipped with a hinged and captive housing cover. The cover can be flipped opened with a screwdriver and closed again without tools. An M20x1.5 aperture is provided to pass the cables through. The cables are connected with screw terminals.
The position switch is equipped with a thrust pin actuator. Depending on the approach situation, this can be replaced by another actuator as required.
Certificates / Standards met:
CE, cULus, CCC, EAC.
EN 60947-5-1, EN ISO 13849-1.Technical data:Mounting position: arbitrary.
Service life: 20 years.Mechanical life: 10,000,000 operating cycles.
NC contact forced break: acc. to EN 60947-5-1.
Forced break force: >40 N.
Conditional rated short-circuit current acc. to EN 60947-5-1: 400 A.
Utilisation category acc. to IEC/EN60947-5-1:
AC15: 240 V / 3 A.
DC13: 24 V / 3 A.Temperature range:-30 °C to +80 °CSpecial features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| Connection
type | Connection
cross-section
max. (mm²) | Wire strip length
mm | Cable entry | No. of NC contacts | CAD | Acc. | Price | Order |
|---|
| 83450-1111 | screw connection | 0,34-1,5 | 5-6 | M20 breakaway | 1 |  | | on request | | | 83450-1120 | screw connection | 0,34-1,5 | 5-6 | M20 breakaway | 2 | | | on request | | | 83450-1121 | screw connection | 0,34-1,5 | 5-6 | M20 breakaway | 2 | | | on request | |
Order No.
| No. of NO contacts | Safety rating | Switching frequency | Protection class | Contamination level | CAD | Acc. | Price | Order |
|---|
| 83450-1111 | 1 | IP66/IP67 | 5000/h | II Protective insulation | 3 | | | on request | | | 83450-1120 | - | IP66/IP67 | 5000/h | II Protective insulation | 3 | | | on request | | | 83450-1121 | 1 | IP66/IP67 | 5000/h | II Protective insulation | 3 | | | on request | |
| Order No. | Rated insulation voltage
Ui
V | Rated impulse withstand voltage
Uimp
kV | Thermal continuous
current
A | CAD | Acc. | Price | Order |
|---|
| 83450-1111 | 300 | 4 | 10 | | | on request | | | 83450-1120 | 300 | 4 | 10 | | | on request | | | 83450-1121 | 300 | 4 | 5 | | | on request | |
| Order No. | Tightening torque
Contact screws
Nm | Tightening torque
Mounting screws
Nm | Actuation speed
min.
mm/min. | Actuation speed
max.
m/s | CAD | Acc. | Price | Order |
|---|
| 83450-1111 | 0,6-0,8 | 1,2 | 10 | 0,5 | | | on request | | | 83450-1120 | 0,6-0,8 | 1,3 | 10 | 0,5 | | | on request | | | 83450-1121 | 0,6-0,8 | 1,4 | 10 | 0,5 | | | on request | |
