83450-10Actuator for position switch |
go back |
|
|
DescriptionMaterial:Thrust pin: Housing and thrust pin plastic.
Roller thrust pin: Housing and roller plastic.
Swivel lever: Housing steel, roller plastic.
Roller swivel lever: Housing and lever steel, roller plastic.Note:The actuators can be attached to the position switch in 45° increments. This makes an adaptation to the respective approach situation possible at any time.Temperature range:-30 °C to +80 °CSpecial features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

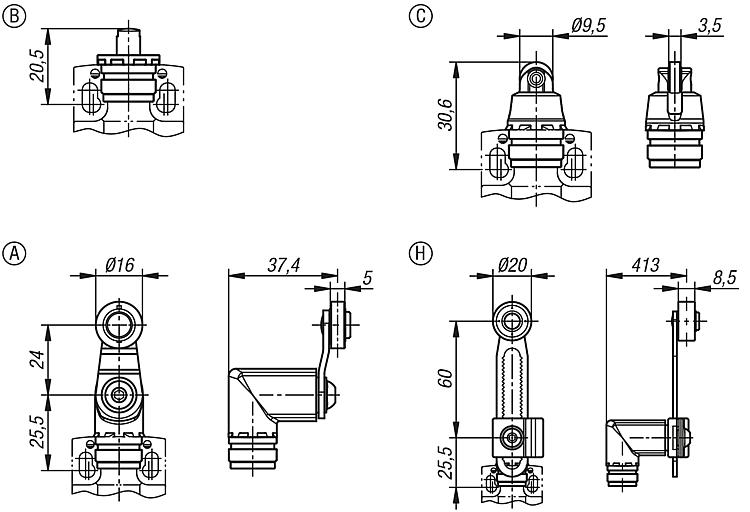

Drawings (total overview) |
| Order No. | Form | Form definition | Drive type | Forced opening force
N | Actuation speed
min. (snap action)
mm/min. | Actuation speed
max. (snap action)
m/s. | CAD | Acc. | Price | Order |
|---|

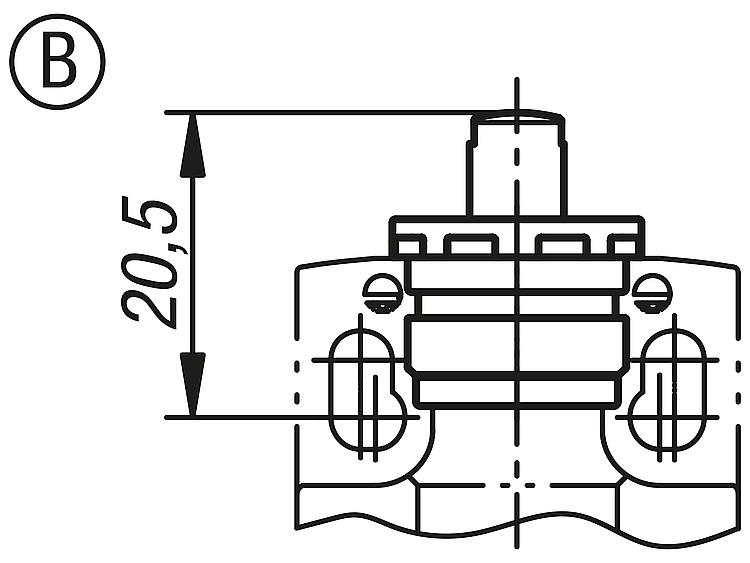

| 83450-10-02 | B | thrust pin | EN 50047 | >40 | 10 | 0,5 |  | | on request | |
|
| Order No. | Form | Form definition | Drive type | Forced opening force
N | Actuation speed
min. (snap action)
mm/min. | Actuation speed
max. (snap action)
m/s. | CAD | Acc. | Price | Order |
|---|

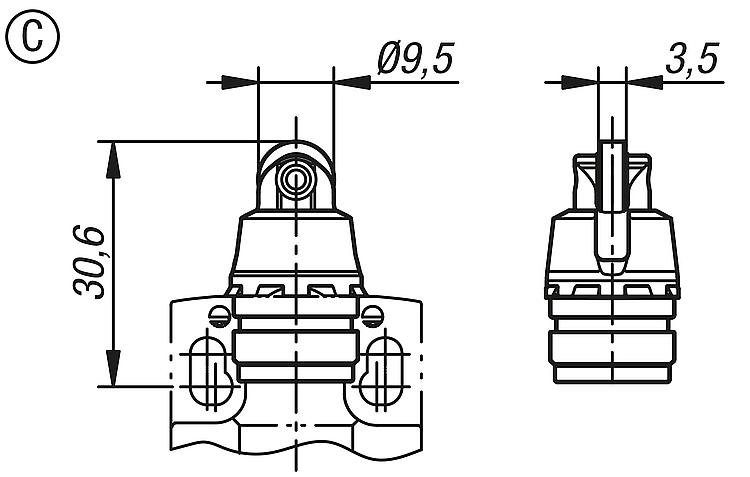

| 83450-10-03 | C | roller thrust pin | EN 50047 | >40 | 10 | 0,5 | | | on request | |
|
| Order No. | Form | Form definition | Drive type | Forced opening force
N | Actuation speed
min. (snap action)
mm/min. | Actuation speed
max. (snap action)
m/s. | Lever
positioning | CAD | Acc. | Price | Order |
|---|

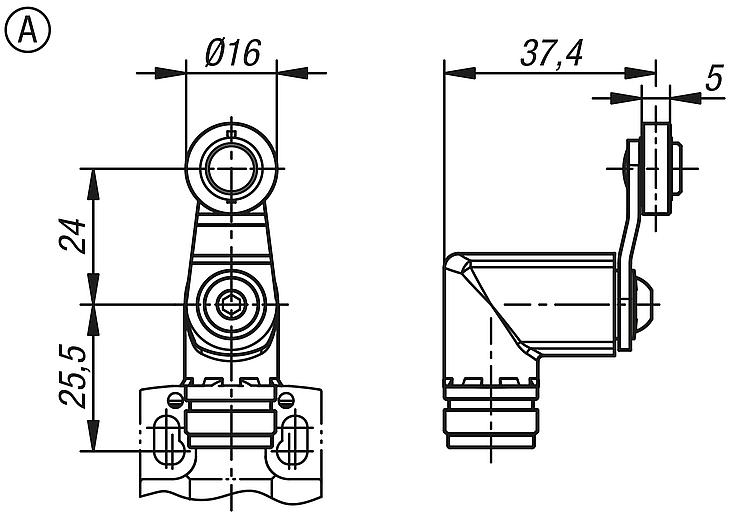

| 83450-10-01 | A | swivel lever | EN 50047 | >40 | 10 | 1 | adjustable in 15° increments | | | on request | |
|
| Order No. | Form | Form definition | Forced opening force
N | Actuation speed
min. (snap action)
mm/min. | Actuation speed
max. (snap action)
m/s. | Lever
positioning | CAD | Acc. | Price | Order |
|---|

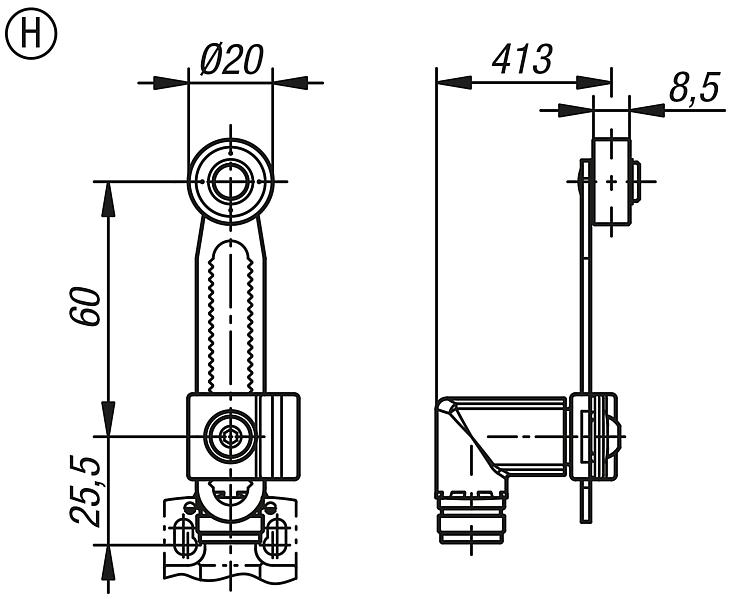

| 83450-10-08 | H | roller swivel lever | >40 | 10 | 1 | adjustable in 15° increments | | | on request | |
|
