Rectangular plates precision steel
 01130

Rectangular plates precision steel

 go back

Item description/product images
DescriptionMaterial:Steel 1.1730Version:Bright.Note:These precision steel plates are suitable for use as base plates in machine, tool and fixture construction. The dimension L is sawn to length and is always supplied oversized.Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 01130 Rectangular plates precision steel 102 kB

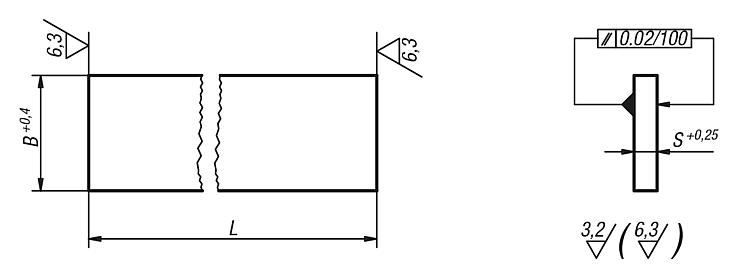

Drawings

Rectangular plates precision steel

Overview of items (compressed)

 Item selection/filter
Order No.

L = lengthBSFilter
01130-01X250/500/750/1000408
01130-02X250/500/750/10005010
01130-03X250/500/750/10006312
01130-04X250/500/750/10008016
01130-05X250/500/750/100010016
01130-06X250/500/750/100010020
01130-07X250/500/750/100012525
01130-08X250/500/750/100015025
01130-09X250/500/750/100016032
01130-10X250/500/750/100020032
01130-11X250/500/750/100030040
