        Tombstones double-sided

Item description/product images

DescriptionMaterial:GJL 300.Version:Reference surfaces precision machined.
The clamping surfaces have 0.5 mm allowance.Note:The double-sided tombstones are matched to subplates for machine tools acc. to DIN 55201 and JIS 6337-1980.
Ring bolts for lifting are supplied. A cover prevents the cavity of the tombstone filling up with swarf.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 01265 Tombstones double-sided

216 kB

Technical information for positioning basic elements on machine tables

1,5 MB

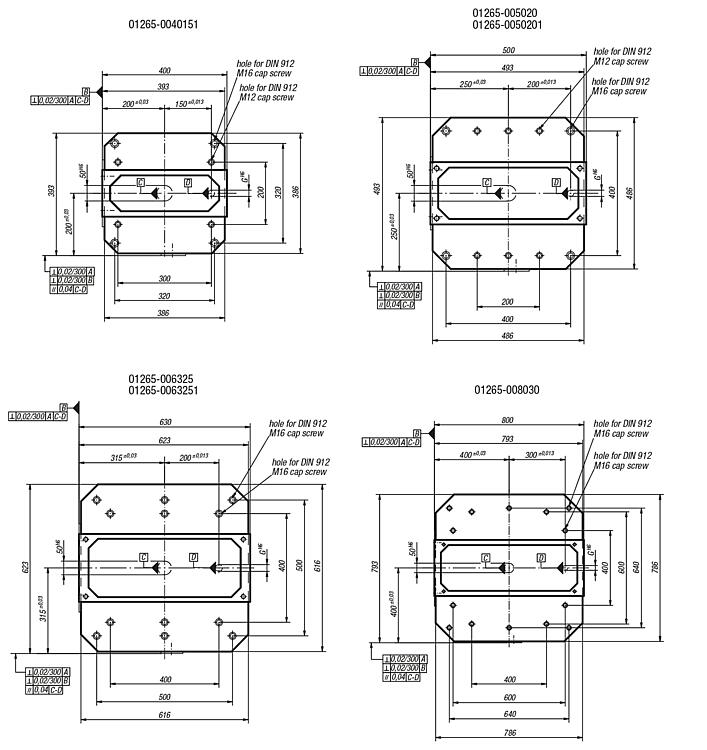

Drawings

Item selection/filter

Order No.	A	B1	C	D	E	E1	G	H	CAD	Acc.	Price	Order
