Tombstones window frame

01267

Tombstones window frame

Products
- Product overview
  - Flexible standard component system
    - Subplates Discs Profiles Angle plates Tombstones
      - Tombstones and angle plates
        Tombstones window frame

Item description/product images

DescriptionMaterial:GJL 300.Version:Reference surfaces precision machinedNote:Subplates 01127 can be positioned and fastened to both sides of the window frame, permitting economical fixture exchanges. The window frames are positioned using centring bolts 03110 and T-slot keys 03240. Ring bolts for lifting are supplied.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 01267 Tombstones window frame

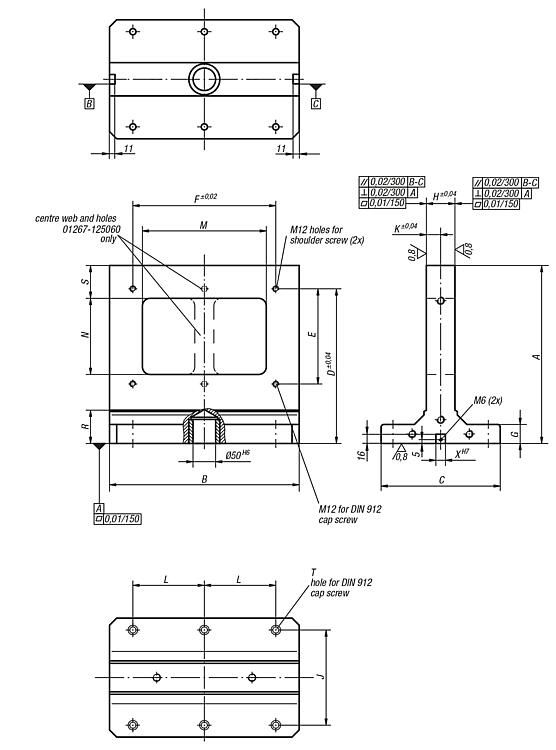

Drawings

Tombstones window frame

Item selection/filter

	474 574	498 598	250 300	425 525	300 400	400 500	40 50	70	200	35	200	360 458	260 360	70 75	69 70	M12 M16	14 18					Reset
Order No.	A	B	C	D	E	F	G	H	J	K	L	M	N	R	S	T	X	Status	CAD	Acc.	Price	Order
01267-124050	474	498	250	425	300	400	40	70	200	35	200	360	260	70	69	M12	14	expiring			on request
01267-125060	574	598	300	525	400	500	50	70	200	35	200	458	360	75	70	M16	18	expiring			on request
