        Rest pads

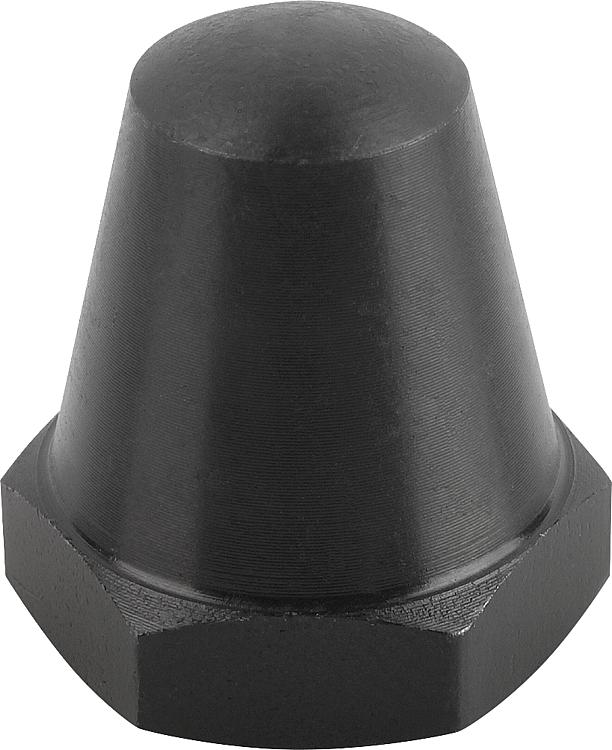

        Rest pads, Form B spherical face

Item description/product images

DescriptionMaterial:Body high carbon steel.Version:Body tempered and black oxidised.Note:Rest pads are for supporting machined and non-machined parts. They can also be used as stops and thrust pads in fixtures and toolmaking.
Studs or grub screws can be screwed and glued into the tapped hole D to make a rest pad with external thread.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02028_B Rest pads, Form B spherical face

194 kB

Drawings

Item selection/filter

Order No.	Form	D	D1	E	H	P	R	SW	Price
02028-206012	B	M6	6	3	12,5	4	5	11	on request
02028-206025	B	M6	6	3	25	7	5	11	on request
02028-208015	B	M8	8	4	15	6	8,5	13	on request
02028-208030	B	M8	8	4	30	9	8,5	13	on request
02028-210020	B	M10	10	5	20	9	9	17	on request
02028-210040	B	M10	10	5	40	13	9	17	on request
02028-212025	B	M12	12	6	25	11	12,75	19	on request
02028-212050	B	M12	12	6	50	16	12,75	19	on request
02028-216030	B	M16	16	8	30	12	17	24	on request
02028-216060	B	M16	16	8	60	20	17	24	on request
