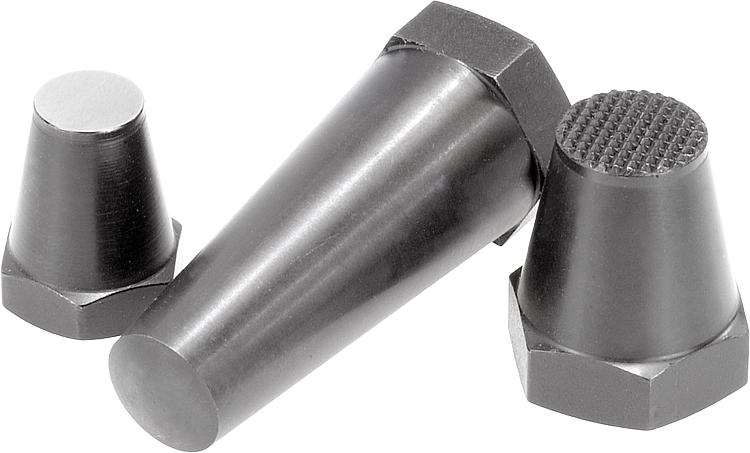

        Rest pad tempered and black oxidised steel

Item description/product images

Show/filter all items

DescriptionMaterial:Body high carbon steel.Version:Body tempered and black oxidised.Note:Rest pads are for supporting machined and non-machined parts. They can also be used as stops and thrust pads in fixtures and toolmaking.
Studs or grub screws can be screwed and glued into the tapped hole D to make a rest pad with external thread.Drawing reference:

Form A: flat face
Form B: ball end
Form C: diamond grip

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02028 Rest pads

157 kB

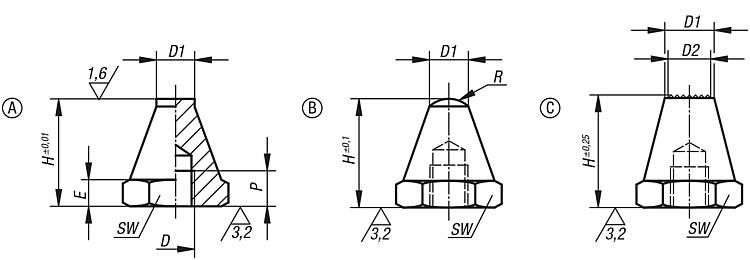

Drawings (total overview)

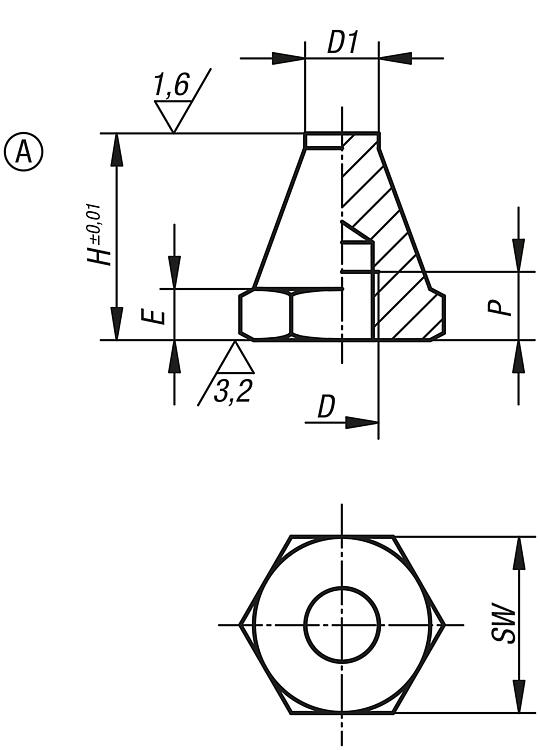

Rest pad, steel, Form A flat face

More information

Drawings

Item selection/filter

	A	M6 M8 M10 M12 M16	6 8 10 12 16	3 4 5 6 8	12,5 25 15 30 20 40 50 60	4 7 6 9 13 11 16 12 20	11 13 17 19 24				Reset
Order No.	Form	D	D1	E	H	P	SW	CAD	Acc.	Price	Order
02028-106012	A	M6	6	3	12,5	4	11			on request
02028-106025	A	M6	6	3	25	7	11			on request
02028-108015	A	M8	8	4	15	6	13			on request
02028-108030	A	M8	8	4	30	9	13			on request
02028-110020	A	M10	10	5	20	9	17			on request
02028-110040	A	M10	10	5	40	13	17			on request
02028-112025	A	M12	12	6	25	11	19			on request
02028-112050	A	M12	12	6	50	16	19			on request
02028-116030	A	M16	16	8	30	12	24			on request
02028-116060	A	M16	16	8	60	20	24			on request

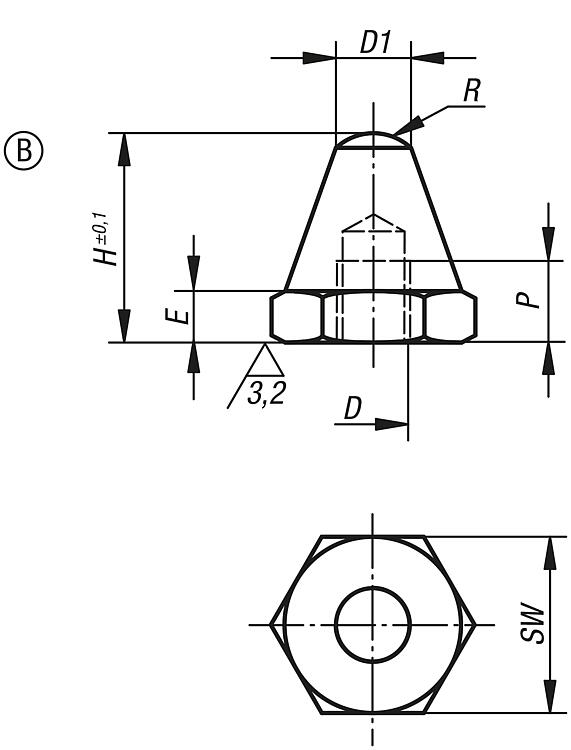

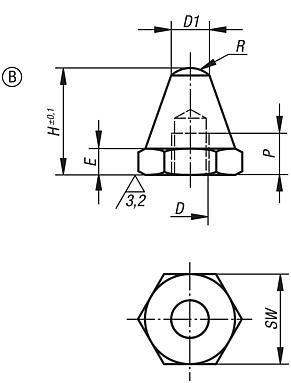

Rest pad, steel, Form B spherical face

More information

Drawings

Item selection/filter

	B	M6 M8 M10 M12 M16	6 8 10 12 16	3 4 5 6 8	12,5 25 15 30 20 40 50 60	4 7 6 9 13 11 16 12 20	5 8,5 9 12,75 17	11 13 17 19 24				Reset
Order No.	Form	D	D1	E	H	P	R	SW	CAD	Acc.	Price	Order
02028-206012	B	M6	6	3	12,5	4	5	11			on request
02028-206025	B	M6	6	3	25	7	5	11			on request
02028-208015	B	M8	8	4	15	6	8,5	13			on request
02028-208030	B	M8	8	4	30	9	8,5	13			on request
02028-210020	B	M10	10	5	20	9	9	17			on request
02028-210040	B	M10	10	5	40	13	9	17			on request
02028-212025	B	M12	12	6	25	11	12,75	19			on request
02028-212050	B	M12	12	6	50	16	12,75	19			on request
02028-216030	B	M16	16	8	30	12	17	24			on request
02028-216060	B	M16	16	8	60	20	17	24			on request

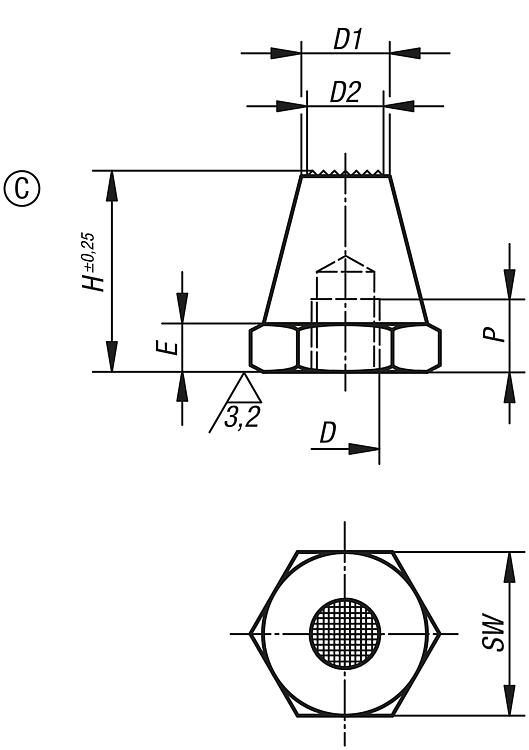

Rest pad, steel, Form C serrated face

More information

Drawings

Item selection/filter

	C	M6 M8 M10 M12 M16	6 8 10 12 16	5 6 8 9,5 13	3 4 5 6 8	12,5 25 15 30 20 40 50 60	4 7 6 9 13 11 16 12 20	11 13 17 19 24				Reset
Order No.	Form	D	D1	D2	E	H	P	SW	CAD	Acc.	Price	Order
02028-306012	C	M6	6	5	3	12,5	4	11			on request
02028-306025	C	M6	6	5	3	25	7	11			on request
02028-308015	C	M8	8	6	4	15	6	13			on request
02028-308030	C	M8	8	6	4	30	9	13			on request
02028-310020	C	M10	10	8	5	20	9	17			on request
02028-310040	C	M10	10	8	5	40	13	17			on request
02028-312025	C	M12	12	9,5	6	25	11	19			on request
02028-312050	C	M12	12	9,5	6	50	16	19			on request
02028-316030	C	M16	16	13	8	30	12	24			on request
02028-316060	C	M16	16	13	8	60	20	24			on request
