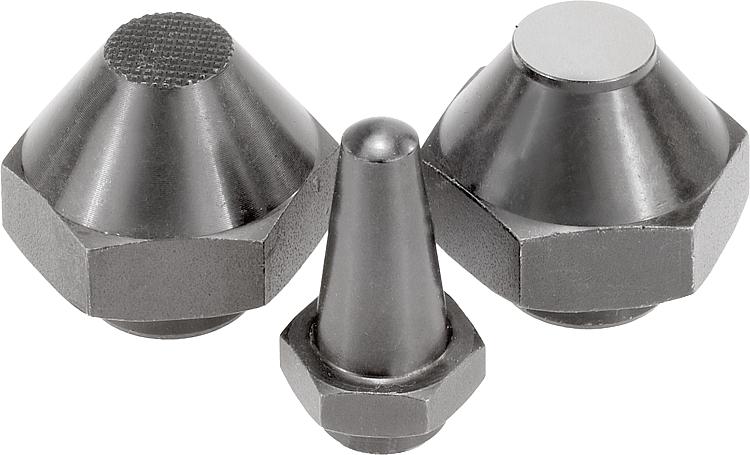

        Rest pads with positioning pin

Item description/product images

Show/filter all items

DescriptionMaterial:Body high carbon steel.Version:Body tempered and black oxidised.
Contact faces case-hardened.Note:Rest pads are for supporting machined and unmachined parts. They can also be used as stops and thrust pads in fixtures and toolmaking. Studs or grub screws can be screwed and glued into the tapped hole D to make a support with external thread.Drawing reference:

Form A: flat face
Form B: ball end
Form C: diamond grip

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02029 Rest pads with positioning pin

173 kB

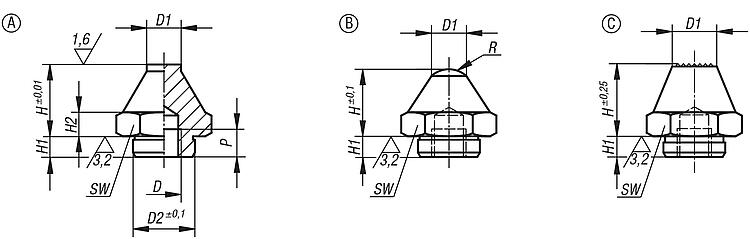

Drawings (total overview)

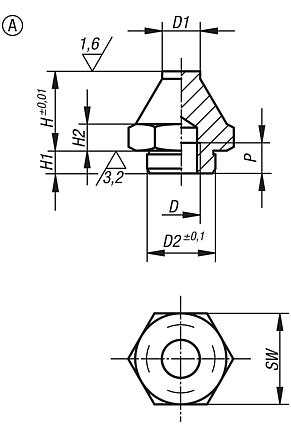

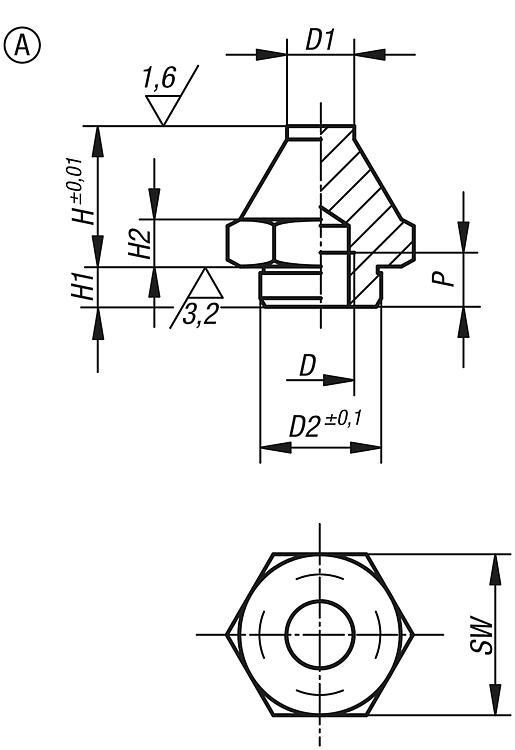

Rest pads with positioning pin, Form A flat face

More information

Drawings

Rest pads with positioning pin, Form A flat face

Item selection/filter

	A	M6 M10 M16	7 10 20	11,9 17,8 25,8	12,5 25 20 40 30 60	4 5 6 10	4 7 13	6 10 16	17 24 41				Reset
Order No.	Form	D	D1	D2	H	H1	H2	P	SW	CAD	Acc.	Price	Order
02029-106012	A	M6	7	11,9	12,5	4	4	6	17			on request
02029-106025	A	M6	7	11,9	25	4	4	6	17			on request
02029-110020	A	M10	10	17,8	20	5	7	10	24			on request
02029-110040	A	M10	10	17,8	40	6	7	10	24			on request
02029-116030	A	M16	20	25,8	30	10	13	16	41			on request
02029-116060	A	M16	20	25,8	60	10	13	16	41			on request

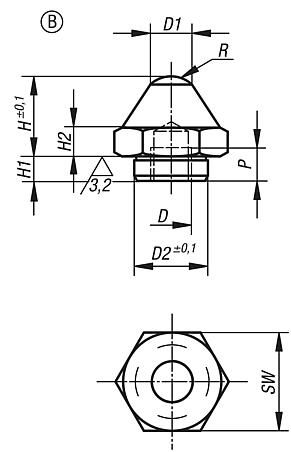

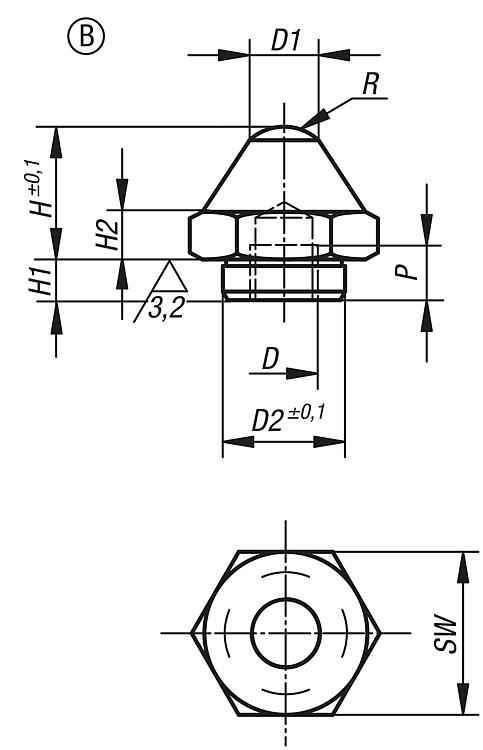

Rest pads with positioning pin Form B spherical face

More information

Drawings

Rest pads with positioning pin Form B spherical face

Item selection/filter

	B	M6 M10 M16	7 10 20	11,9 17,8 25,8	12,5 25 20 40 30 60	4 5 6 10	4 7 13	6 10 16	6 7,5 26	17 24 41				Reset
Order No.	Form	D	D1	D2	H	H1	H2	P	R	SW	CAD	Acc.	Price	Order
02029-206012	B	M6	7	11,9	12,5	4	4	6	6	17			on request
02029-206025	B	M6	7	11,9	25	4	4	6	6	17			on request
02029-210020	B	M10	10	17,8	20	5	7	10	7,5	24			on request
02029-210040	B	M10	10	17,8	40	6	7	10	7,5	24			on request
02029-216030	B	M16	20	25,8	30	10	13	16	26	41			on request
02029-216060	B	M16	20	25,8	60	10	13	16	26	41			on request

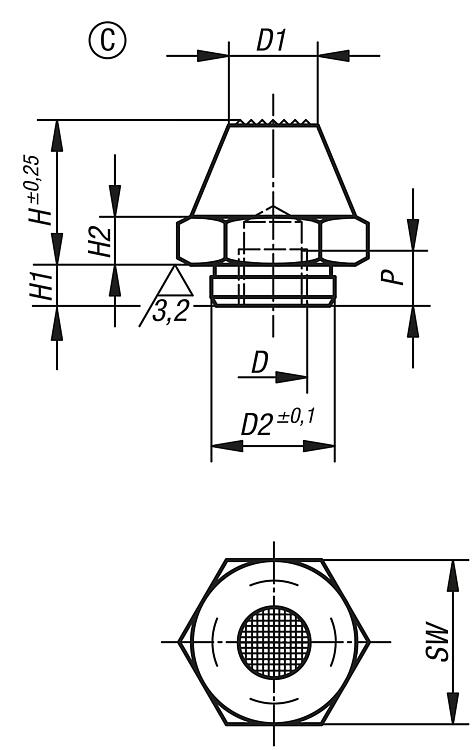

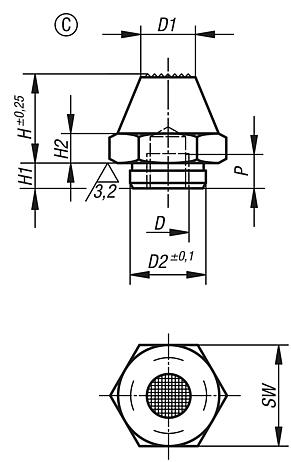

Rest pads with positioning pin, Form C serrated face

More information

Drawings

Rest pads with positioning pin, Form C serrated face

Item selection/filter

	C	M10 M16	10 20	17,8 25,8	20 40 30 60	5 6 10	7 13	10 16	24 41				Reset
Order No.	Form	D	D1	D2	H	H1	H2	P	SW	CAD	Acc.	Price	Order
02029-310020	C	M10	10	17,8	20	5	7	10	24			on request
02029-310040	C	M10	10	17,8	40	6	7	10	24			on request
02029-316030	C	M16	20	25,8	30	10	13	16	41			on request
02029-316060	C	M16	20	25,8	60	10	13	16	41			on request
