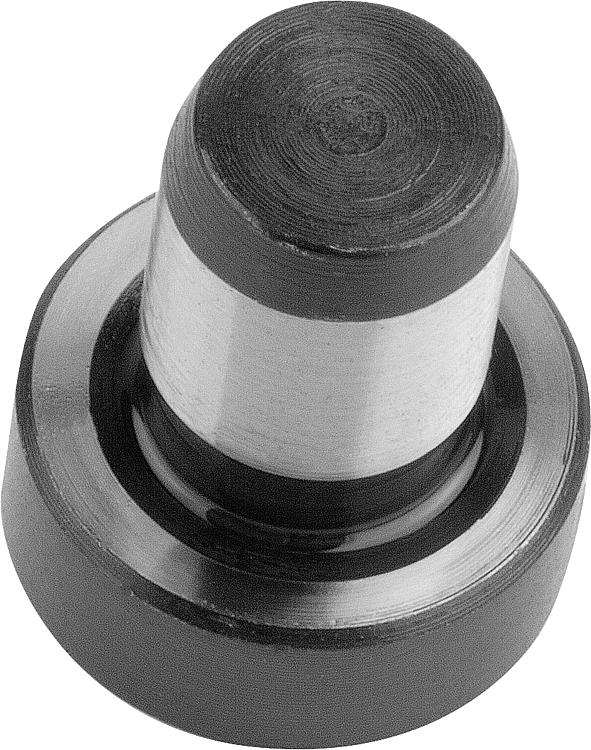

        Rest pads

Item description/product images

DescriptionMaterial:Tool steel.Version:Hardened and ground.
Top face without centerbore.Note:If more than one rest pad is used, the support height can be reground. Rest pads can also be used as feet for jigs and fixtures.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02010 Rest pads

438 kB

Drawings

Item selection/filter

Order No.	D1	D2	H	H1	L3	L4	Price
02010-041	6	4	2,5	6,5	0,7	1,2	on request
02010-042	6	4	4,5	8,5	0,7	1,2	on request
02010-04	6	4	5	6	0,7	1,2	on request
02010-061	10	6	4,5	8,5	0,9	1,5	on request
02010-06	10	6	8	8,5	0,9	1,5	on request
02010-08	16	8	5	10	2	2	on request
02010-081	16	8	13	10	2	2	on request
02010-10	20	10	6	12	2	2	on request
02010-101	20	10	12	12	2	2	on request
02010-12	25	12	8	14	2	2	on request
02010-122	25	12	20	14	2	2	on request
02010-123	25	12	30	14	2	2	on request
02010-16	30	16	25	20	2,5	2,5	on request
02010-164	30	16	40	20	2,5	2,5	on request
02010-165	30	16	50	20	2,5	2,5	on request
02010-166	30	16	65	20	2,5	2,5	on request
02010-20	30	20	80	20	2,5	2,5	on request
02010-201	30	20	100	20	2,5	2,5	on request
02010-202	40	20	13	20	3,2	3,2	on request
02010-203	40	20	32	20	3,2	3,2	on request
