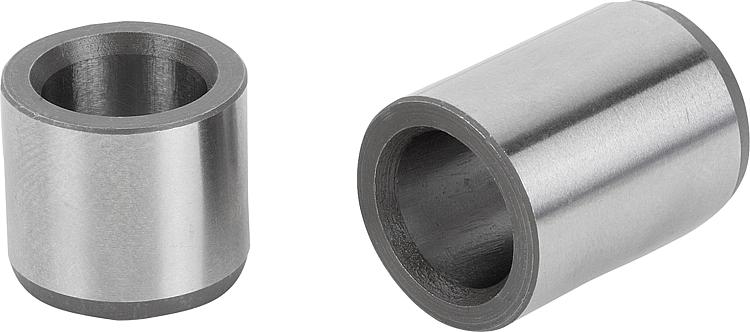

        Locating bushes for locating pins

Item description/product images

DescriptionMaterial:Steel.Version:Hardened and ground (HRC 60 ±2).

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02026 Locating bushes for locating pins

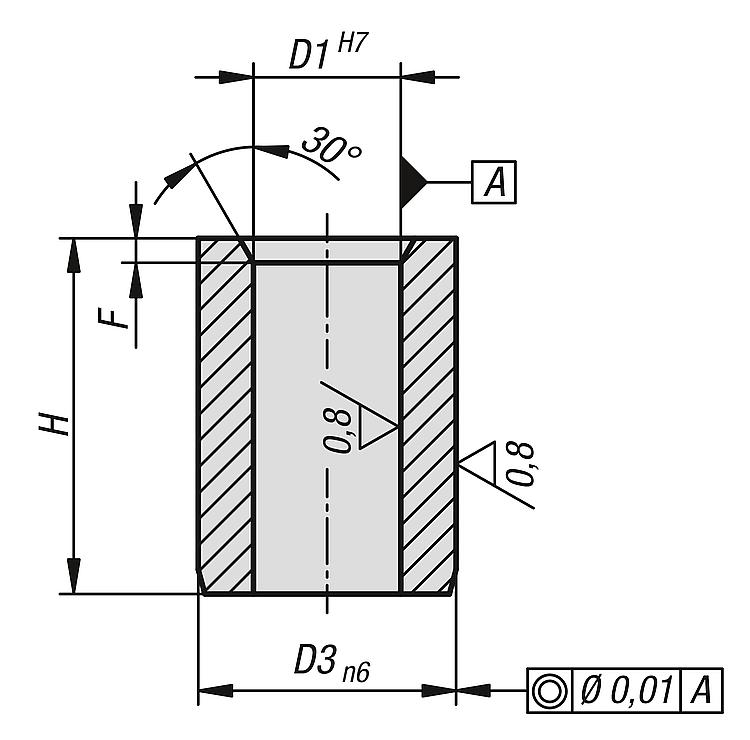

Drawings

Locating bushes for locating pins

Item selection/filter

	short long	5 6 8 10 12 16 20	8 10 12 15 18 26 30	1 1,2 1,5 2,5	8 10 12 14 16 20 26 18 22 24 30 36				Reset
Order No.	Version 1	D1	D3	F	H	CAD	Acc.	Price	Order
02026-0508	short	5	8	1	8			on request
02026-0610	short	6	10	1	10			on request
02026-0812	short	8	12	1,2	12			on request
02026-1014	short	10	15	1,5	14			on request
02026-1216	short	12	18	1,5	16			on request
02026-1620	short	16	26	1,5	20			on request
02026-2026	short	20	30	2,5	26			on request
02026-0510	long	5	8	1	10			on request
02026-0612	long	6	10	1	12			on request
02026-0818	long	8	12	1,2	18			on request
02026-1022	long	10	15	1,5	22			on request
02026-1224	long	12	18	1,5	24			on request
02026-1630	long	16	26	1,5	30			on request
02026-2036	long	20	30	2,5	36			on request
