        Rest pads with positioning pin

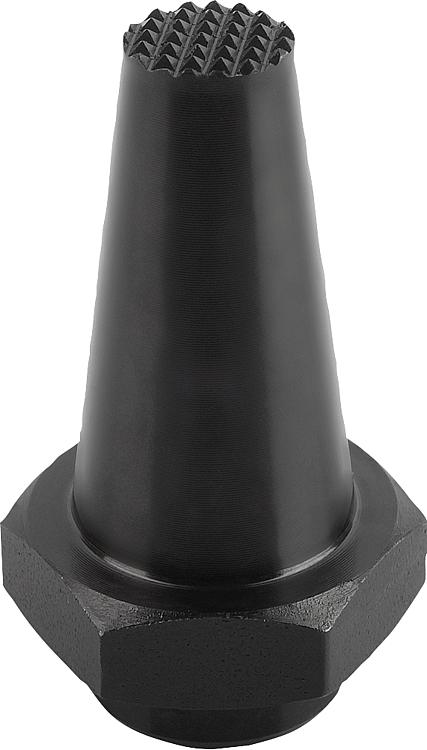

        Rest pads with positioning pin, Form C serrated face

Item description/product images

DescriptionMaterial:Body high carbon steel.Version:Body tempered and black oxidised.
Contact faces case-hardened.Note:Rest pads are for supporting machined and unmachined parts. They can also be used as stops and thrust pads in fixtures and toolmaking. Studs or grub screws can be screwed and glued into the tapped hole D to make a support with external thread.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02029_C Rest pads with positioning pin, Form C serrated face

151 kB

Drawings

Item selection/filter

Order No.	Form	D	D1	D2	H	H1	H2	P	SW	Price
02029-310020	C	M10	10	17,8	20	5	7	10	24	on request
02029-310040	C	M10	10	17,8	40	6	7	10	24	on request
02029-316030	C	M16	20	25,8	30	10	13	16	41	on request
02029-316060	C	M16	20	25,8	60	10	13	16	41	on request
