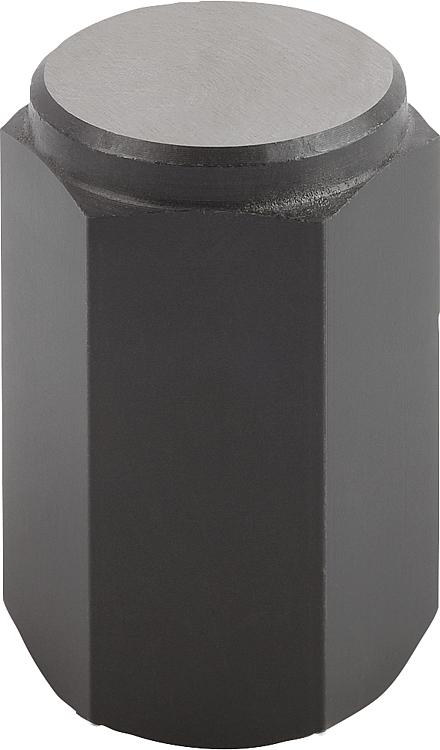

        Fixture feet with internal thread, Form B flat face hardened and ground

Item description/product images

DescriptionMaterial:Body high carbon steel.Version:Body tempered and black oxidised.
Contact faces case-hardened.Note:Fixture feet with internal thread are used as supports for fixtures or rough or machined workpieces. They can also be used as stops or thust pads in fixtures and toolmaking.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 02070_B Fixture feet with internal thread, Form B flat face hardened and ground

145 kB

Drawings

Item selection/filter

Order No.	Form	D	E	G	H	T	SW	Price
02070-206X20	B	9,5	2	M6	20	12	10	on request
02070-206X40	B	9,5	2	M6	40	12	10	on request
02070-210X32	B	16,5	3	M10	32	18	17	on request
02070-210X63	B	16,5	3	M10	63	18	17	on request
02070-212X32	B	18,5	3	M12	32	18	19	on request
02070-212X63	B	18,5	3	M12	63	18	19	on request
02070-216X50	B	23	4	M16	50	24	24	on request
02070-216X100	B	23	4	M16	100	24	24	on request
